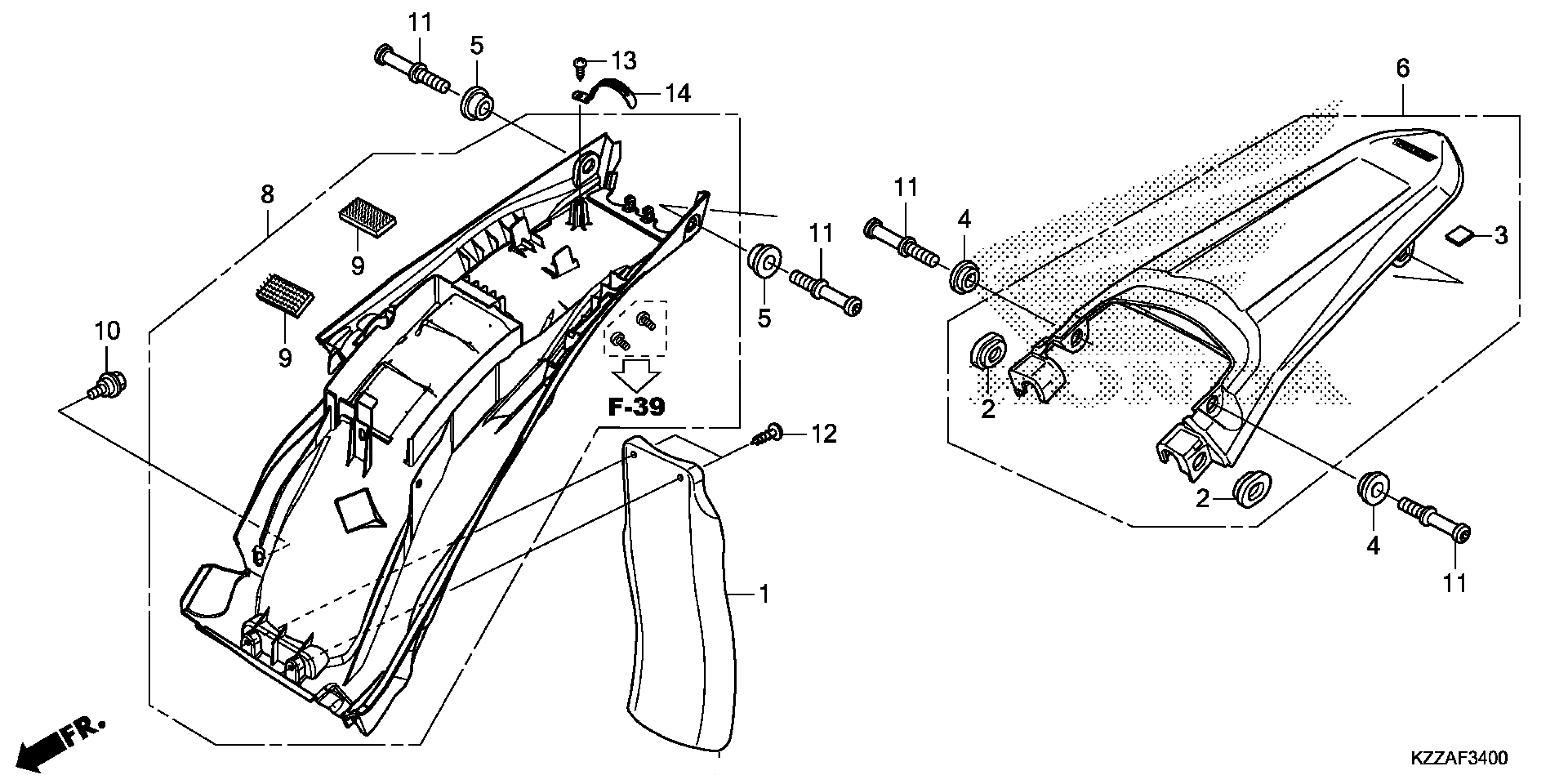

Honda CRF250RLAC (18) MOTORCYCLE, THA, VIN# MLHMD441-J5100001 REAR FENDER Diagram

SPLASH GUARD

17218-KZZ-900

$4.89

GROMMET, SPEAKER PANEL

64266-MG9-770

$2.80

RUBBER SPONGE, RR. FENDER

64465-KZZ-J00

$0.59

COLLAR A, FENDER SETTING

77223-KZZ-900

$1.68

COLLAR B, FENDER SETTING

77224-KZZ-900

$1.07

FENDER SET, RR. (TYPE1) (WL)

80010-KZZ-J00ZB

$54.77

FENDER SET, RR. (TYPE1) (WL)

80010-KZZ-M20ZB

$54.77

FENDER SET B, RR.

80150-KZZ-307

$27.13

TAPE, MAGIC (25X50) (FEMALE)

83643-355-300

$2.80

BOLT, FLANGE (6MM)

90110-KZZ-900

$0.68

BOLT, HOOK (8MM)

90116-KZZ-900

$2.19

SCREW, TAPPING (5X20)

93913-15510

$0.86

SCREW, TAPPING (4X10)

93913-14120

$0.83

CLIP (4X90)

94591-49000

Unavailable
