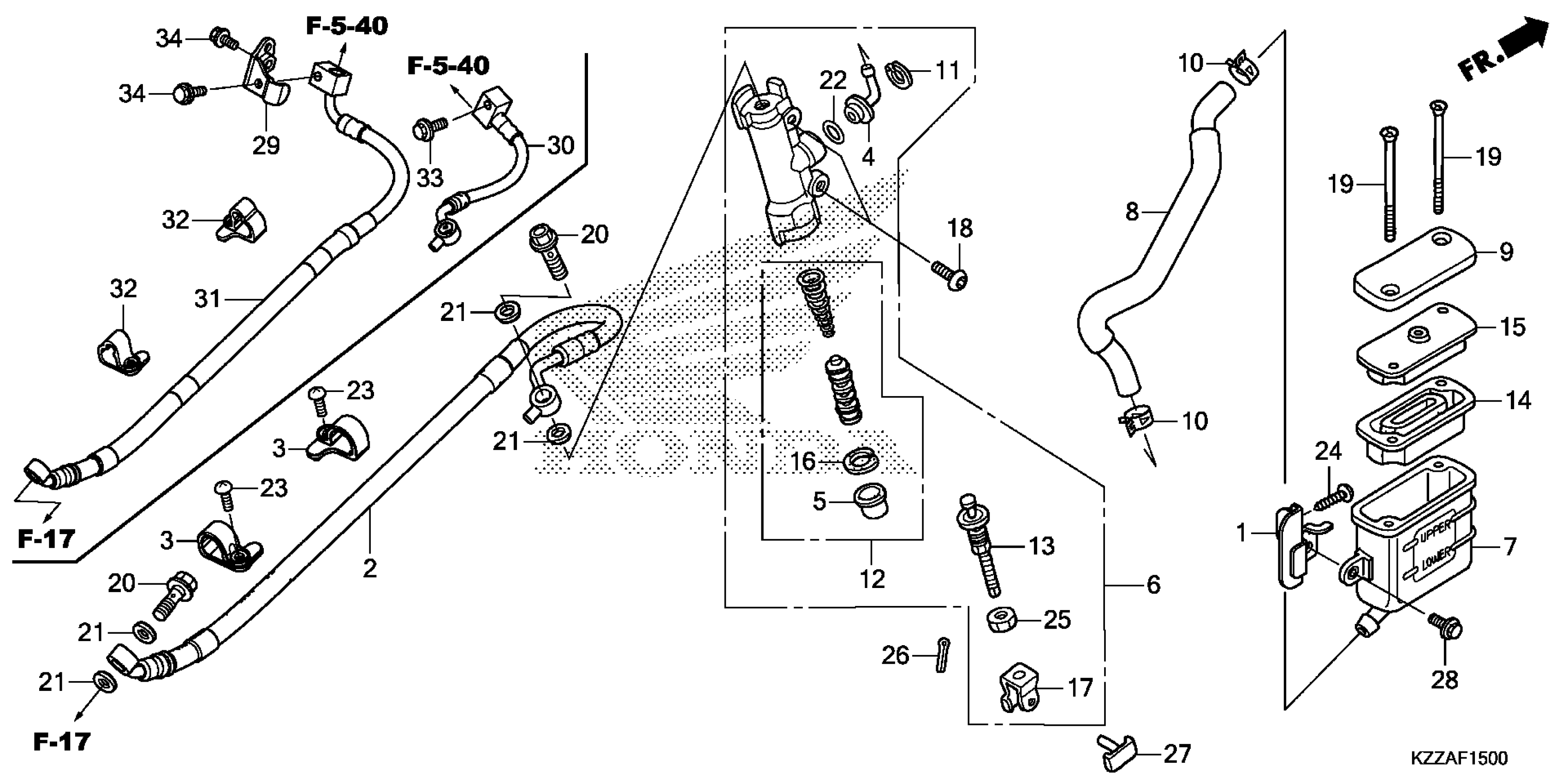

Honda CRF250RLAC (18) MOTORCYCLE, THA, VIN# MLHMD441-J5100001 REAR BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

STAY, OIL CUP

17270-KZZ-900

$9.34

2

HOSE, RR. BRAKE

43310-KZZ-901

$36.79

3

GUIDE, BRAKE HOSE

43468-KZZ-J00

$2.54

4

CONNECTOR, MASTER CYLINDER

43503-KS6-701

$10.26

5

BOOT

43504-MB2-006

$10.04

6

MASTER CYLINDER SUB-ASSY., RR. BRAKE (COO) (NISSIN)

43510-KZZ-305

$60.80

6

MASTER CYLINDER SUB-ASSY., RR. BRAKE (COO) (NISSIN) This part replaces 43510-KZZ-901.

43510-KZZ-305

$60.80

7

CUP, OIL (NISSIN)

43511-KW7-881

$18.13

8

HOSE, RR. BRAKE MASTER CYLINDER

43512-KZZ-901

$9.52

9

CAP, MASTER CYLINDER

43513-KTY-C01

$6.18

10

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$13.12

11

CIRCLIP, RR. MASTER CYLINDER (FOR FR.)

43517-KS6-701

$3.81

12

PISTON SET, MASTER CYLINDER (NISSIN)

43520-MJ6-315

$46.73

13

ROD, PUSH

43530-KZZ-901

$11.69

14

DIAPHRAGM

45520-GW0-911

$7.28

15

PLATE, DIAPHRAGM

45521-GW0-911

$5.72

16

CIRCLIP

46182-MEL-D21

$1.93

17

JOINT, BRAKE ROD

46504-KV6-702

$7.84

18

BOLT, BRAKE DISK (6X17)

90106-KGH-600

$2.98

19

SCREW, FLAT (4X45)

90140-KZZ-901

$6.27

20

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$7.54

21

WASHER, OIL BOLT

90545-300-000

$3.99

22

O-RING (14.8X2.4)

91212-422-006

$2.56

23

SCREW, PAN (5X16) SCREW, PAN (4X20)

93500-05016-0G

$1.49

24

SCREW, TAPPING (6X20)

93903-26380

$1.49

25

NUT, HEX. (8MM)

94002-08000-0S

$1.49

26

PIN, COTTER (2.0X12)

94201-20120

$1.49

27

PIN D, JOINT

95015-54000

$4.24

28

BOLT, FLANGE (6X14)

96300-06014-00

$1.49
