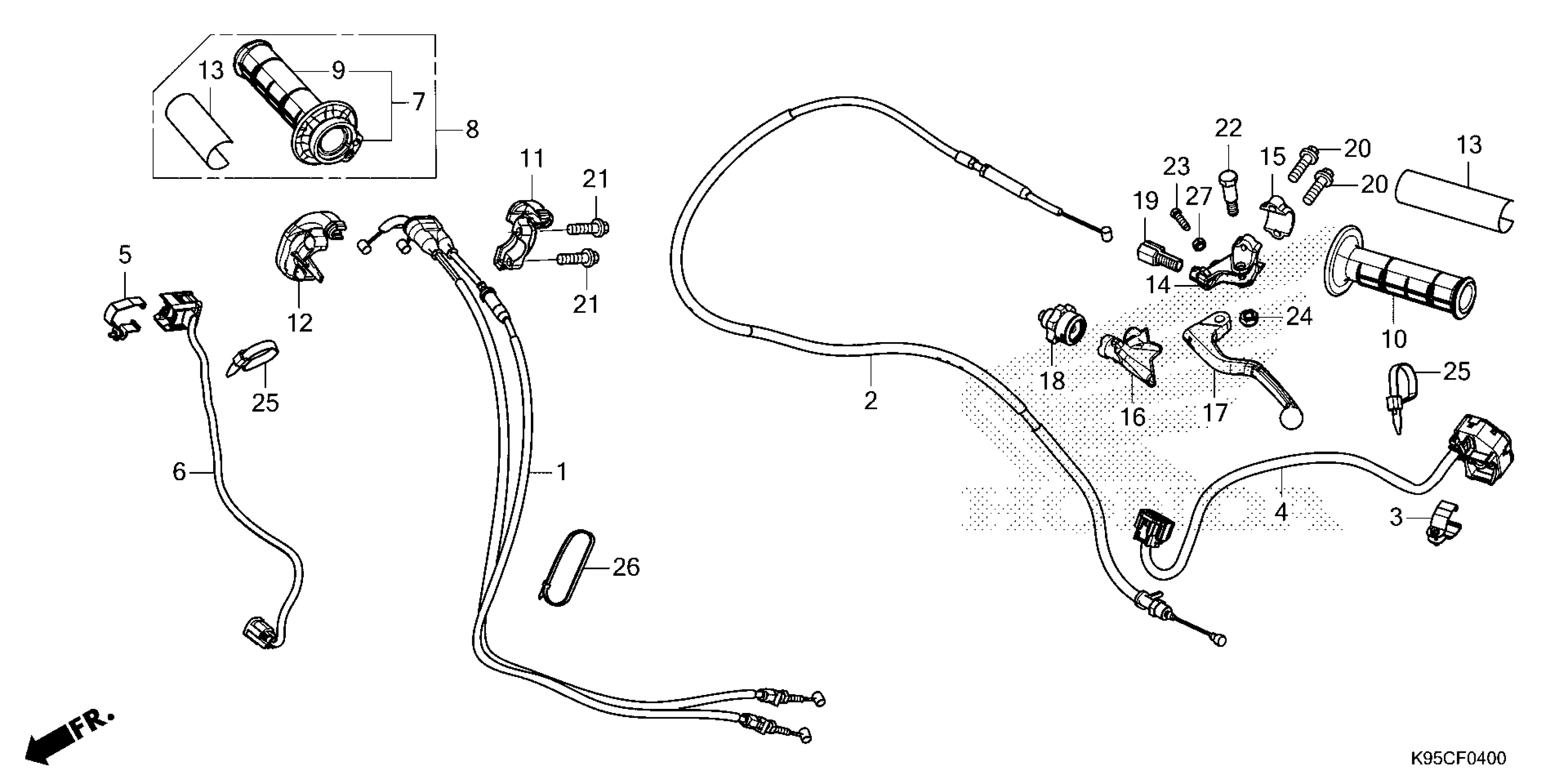

Honda CRF250RAC (26) MOTORCYCLE, JPN, VIN# JH2ME123-TK800001 TO JH2ME123-TK899999 HANDLE LEVER@SWITCH@CABLE Diagram

CABLE, THROTTLE

17910-MKE-AF1

$47.68

CABLE, CLUTCH

22870-K95-AA1

$26.34

BAND SET

35131-MKE-AF1

$10.07

SWITCH SET, ENGINE STOP & INDICATOR

35135-MKE-AF1

$154.41

BAND SET

35151-MKE-AF1

$10.52

SWITCH SET, STARTER

35155-K95-AA1

$32.70

GRIP, THROTTLE

53140-KRN-A30

$20.08

GRIP, R. HANDLE (COO) This part replaces 53165-KRN-A30.

53165-MEN-305

$10.02

GRIP, L. HANDLE

53166-KRN-A30

$9.28

HOUSING, THROTTLE (UPPER)

53167-MKE-A00

$25.33

HOUSING, THROTTLE (LOWER)

53168-MKE-A00

$25.33

BRACKET, L.

53172-K95-AA0

$33.31

HOLDER, L. LEVER BRACKET

53174-KCE-670

$12.08

COVER, L. HANDLE LEVER

53177-KSK-670

$8.83

LEVER, L. HANDLEBAR

53178-MEN-A01

$22.10

DIAL, CLUTCH CABLE ADJUSTING

53179-MEN-671

$10.12

BOLT, WIRE ADJUSTING

53192-MEN-670

$7.37

BOLT, FLANGE (6X22)

90020-GHB-670

$2.12

BOLT, FLANGE (6X20)

90021-GHB-660

$2.06

BOLT, HANDLEBAR LEVER PIVOT

90113-429-770

$5.54

BOLT, LEVER ADJUSTING

90118-MEN-670

$3.62

NUT, U (6MM)

90301-782-000

$1.48

BAND, WIRE (BLACK)

90652-KT1-771

$4.16

BAND SUC HOSE

90679-KPE-C21

$1.87

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.19

NUT, HEX. (6MM)

94001-06200-0S

$1.19
