Description

Price

1

CLIP, OIL DRAIN TUBE

15771-KSE-AF0

$0.57

2

ELEMENT, AIR CLEANER

17213-K95-AG0

$45.99

3

GUARD, ELEMENT

17215-K95-AG0

$21.53

4

BASE, ELEMENT

17216-K95-AG0

$10.12

5

HOOK, ELEMENT

17217-K95-AG0

$1.97

6

SPLASH GUARD

17218-MKE-AF0

$23.74

7

COVER, AIR CLEANER

17221-K95-AG0

$20.07

8

LID, AIR CLEANER

17224-K95-AG0

$20.07

9

CASE SUB-ASSY.

17231-K95-AG0

$75.79

10

FUNNEL SUB-ASSY.

17232-K95-AG0

$8.07

11

SEAL, FUNNEL

17252-MKE-AF0

$1.85

12

TUBE

17253-K95-AA0

$24.15

13

BAND, AIR CLEANER CONNECTING TUBE (64)

17254-MKE-A00

$12.97

14

BAND, AIR CLEANER CONNECTING TUBE (60MM)

17255-MEN-A70

$14.68

15

TUBE, DRAIN

17358-K95-AG0

$2.24

16

TUBE, BREATHER

17371-K95-AA0

$9.43

17

RUBBER, POSITION LIGHT

33181-MBB-000

$4.53

18

COLLAR, TAILLIGHT

33712-GC6-000

$2.86

19

SENSOR ASSY., AIR TEMPERATURE

37880-KWW-C01

$40.93

20

BOLT, FLANGE (6X12)

90025-GHB-620

$2.06

21

BOLT, SPECIAL (5X23)

90119-MJC-A00

$5.49

22

SCREW, PAN (4X25)

93500-04025-0G

$0.60

23

SCREW, PAN (4X30)

93500-04030-0G

$3.42

24

SCREW, TAPPING (5X16) (PO)

93913-25480

$0.84

25

SCREW, TAPPING (5X20)

93913-25580

$0.90

26

NUT, FLANGE (5MM)

94050-05080

$0.34

27

CLAMP, TUBE (D12.5)

95002-41250-08

$2.31

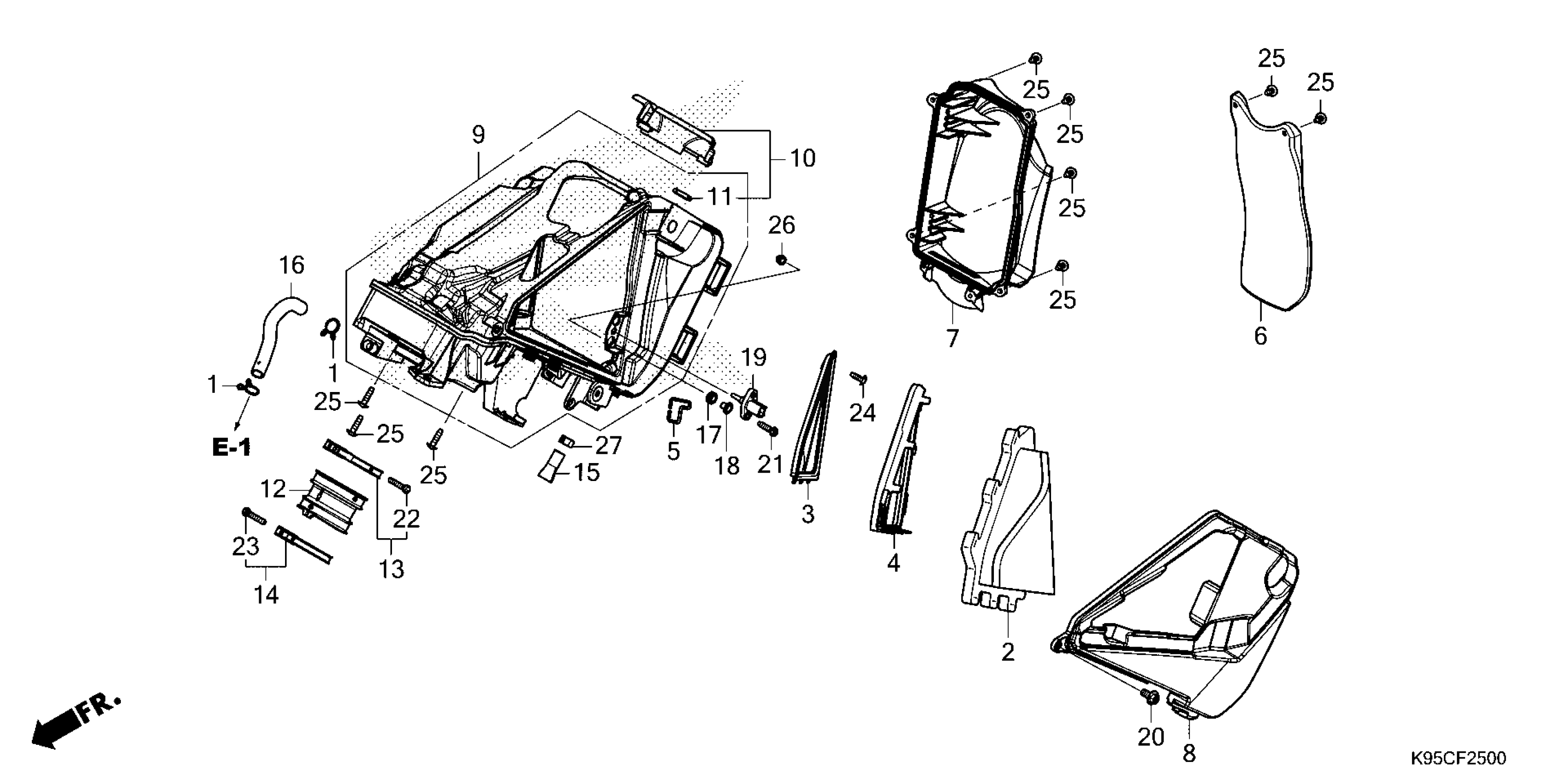

Honda CRF250RAC (26) MOTORCYCLE, JPN, VIN# JH2ME123-TK800001 TO JH2ME123-TK899999 AIR CLEANER Diagram
