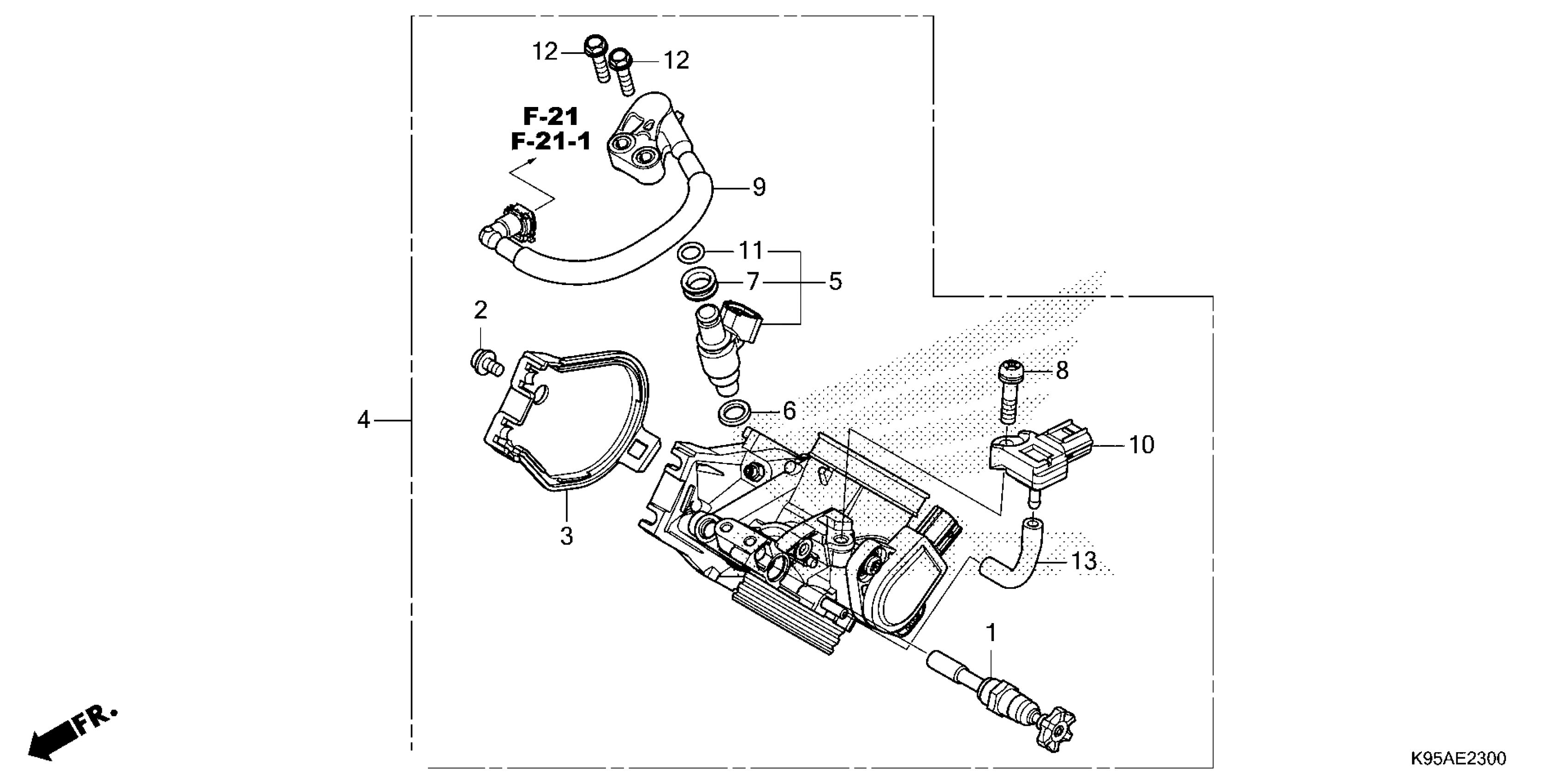

Honda CRF250RAC (24) MOTORCYCLE, JPN, VIN# JH2ME123-RK600001 THROTTLE BODY Diagram

VALVE, STARTER

16046-MKE-AF1

$49.10

BOLT, COVER

16080-HP1-601

$4.07

COVER, BODY

16157-MEN-A31

$17.66

BODY ASSY., THROTTLE

16400-K95-AA1

$672.90

INJECTOR ASSY., FUEL

16450-MEN-A51

$142.73

SEAL RING, INJECTOR

16472-MCW-000

$2.39

CUSHION RING, INJECTOR

16473-P7A-004

$6.90

SCREW-WASHER (6X25)

16542-MEN-A41

$3.21

HOSE, FUEL FEED

17640-MKE-AF1

$82.97

SENSOR A, MASTER POWER PRESSURE

46401-TM8-A01

$202.72

O-RING (7.8X1.9)

91301-P7A-004

$3.35

BOLT-WASHER (5X20)

93401-05020-00

$1.49

BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M)

95005-35001-20M

$9.67
