Description

Price

1

SPOKE SET, RR. (INSIDE)

06420-KRN-710

$3.74

2

SPOKE SET, RR. (OUTSIDE)

06421-KRN-710

$3.74

3

SPROCKET, FINAL DRIVEN (49T) | (Optional).

41201-MKE-A70

$126.35

3

SPROCKET, FINAL DRIVEN (50T)

41203-MKE-A00

$126.07

3

SPROCKET, FINAL DRIVEN (51T) | (Optional).

41204-MKE-A10

$132.54

4

RETAINER, RR. WHEEL BEARING

41231-KZ4-J20

$17.70

5

AXLE, RR. WHEEL

42301-KRN-A30

$43.16

6

COLLAR, L. RR. AXLE

42305-MKE-A50

$19.63

7

COLLAR, R. RR. AXLE

42306-KZ4-J20

$17.70

8

COLLAR, RR. WHEEL SIDE

42311-MKE-A60

$24.91

9

COLLAR, RR. WHEEL DISTANCE

42620-MKE-A60

$24.86

10

HUB SUB-ASSY., RR.

42635-MKE-AF0

$394.54

11

WHEEL SUB-ASSY., RR.

42650-K95-AA0

$746.28

12

RIM, RR. (19X1.85)

42701-K95-AA1

$267.93

13

TIRE(100/90-19) This part replaces 42711-K95-AA1.

42711-K95-AA2

$139.69

13

TIRE(100/90-19)

42711-K95-AA2

$139.69

14

TUBE (110/90-19)

42712-KRN-E21

$39.54

15

FLAP, TIRE

42713-MEB-771

$6.41

16

CAP, VALVE

42714-KA3-710

$9.60

17

STOPPER, BEAD (1.85) STOPPER, BEAD (1.85B)

42715-KA2-680

$29.63

18

DISK, RR. BRAKE

43351-KRN-A90

$221.31

19

BOLT, DISK (6X19)

90105-MAC-680

$4.77

20

SCREW, FLAT SOCKET

90125-MKE-AF0

$3.57

21

NUT, U (6MM) NUT, FLANGE (6MM)

90301-473-003

$3.89

22

NUT, U (22MM)

90305-KZ4-J20

$8.25

23

NUT, U (8MM)

90309-MKE-AF1

$2.74

24

WASHER (22X35X2)

90401-KZ4-J20

$2.66

25

WASHER (8MM)

90465-MC4-000

$2.32

26

BEARING, RADIAL BALL (69052RS)

91051-KZ4-J21

$16.92

27

BEARING, RADIAL BALL (6905RS)

91052-KZ4-J21

$15.94

28

DUST SEAL (32X43X7)

91251-KZ4-J21

$4.71

29

NUT, HEX. (8MM)

94001-08000-0S

$1.31

30

WASHER, SPRING (8MM)

94111-08000

Unavailable

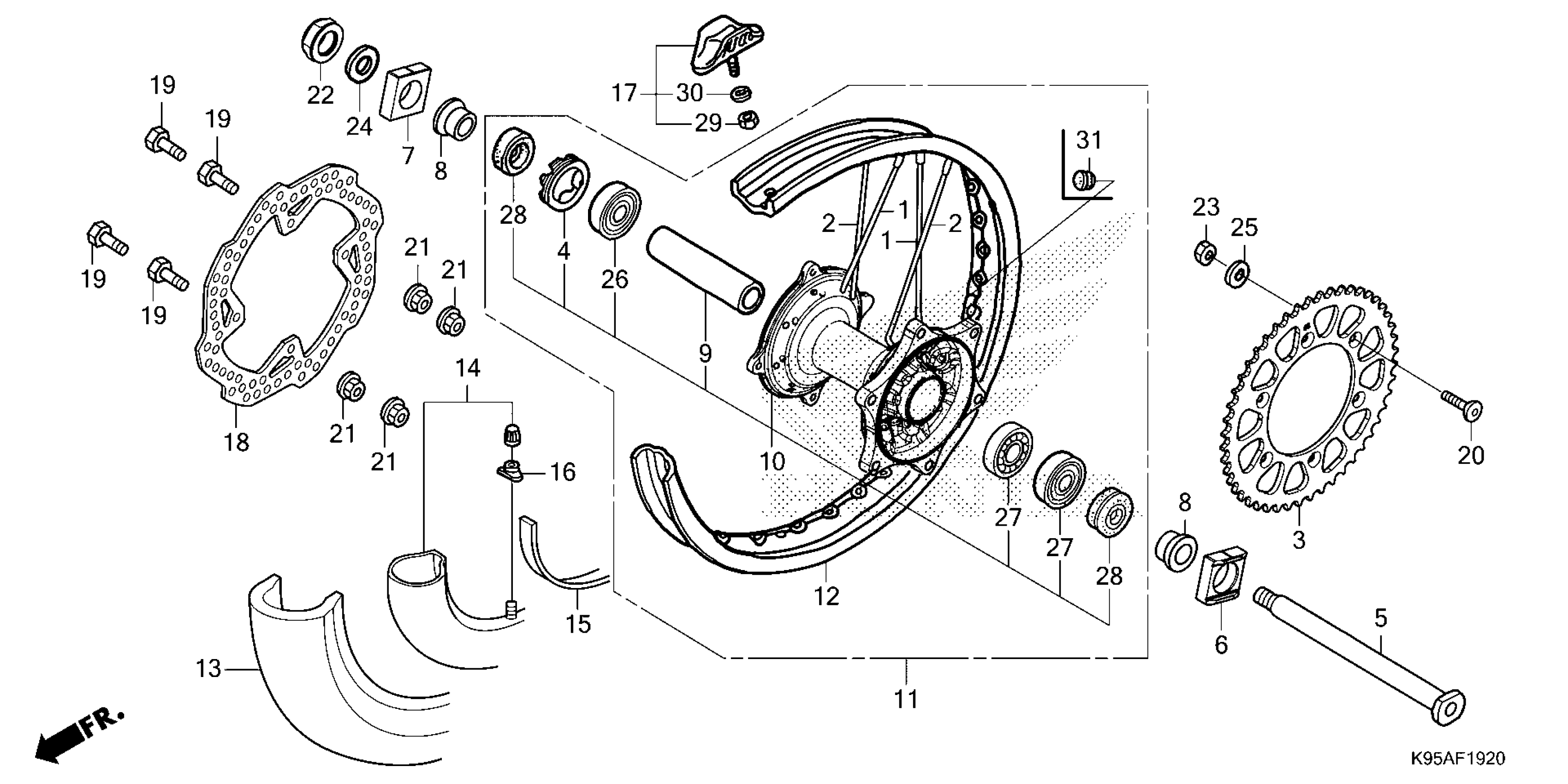

Honda CRF250RAC (24) MOTORCYCLE, JPN, VIN# JH2ME123-RK600001 REAR WHEEL Diagram
