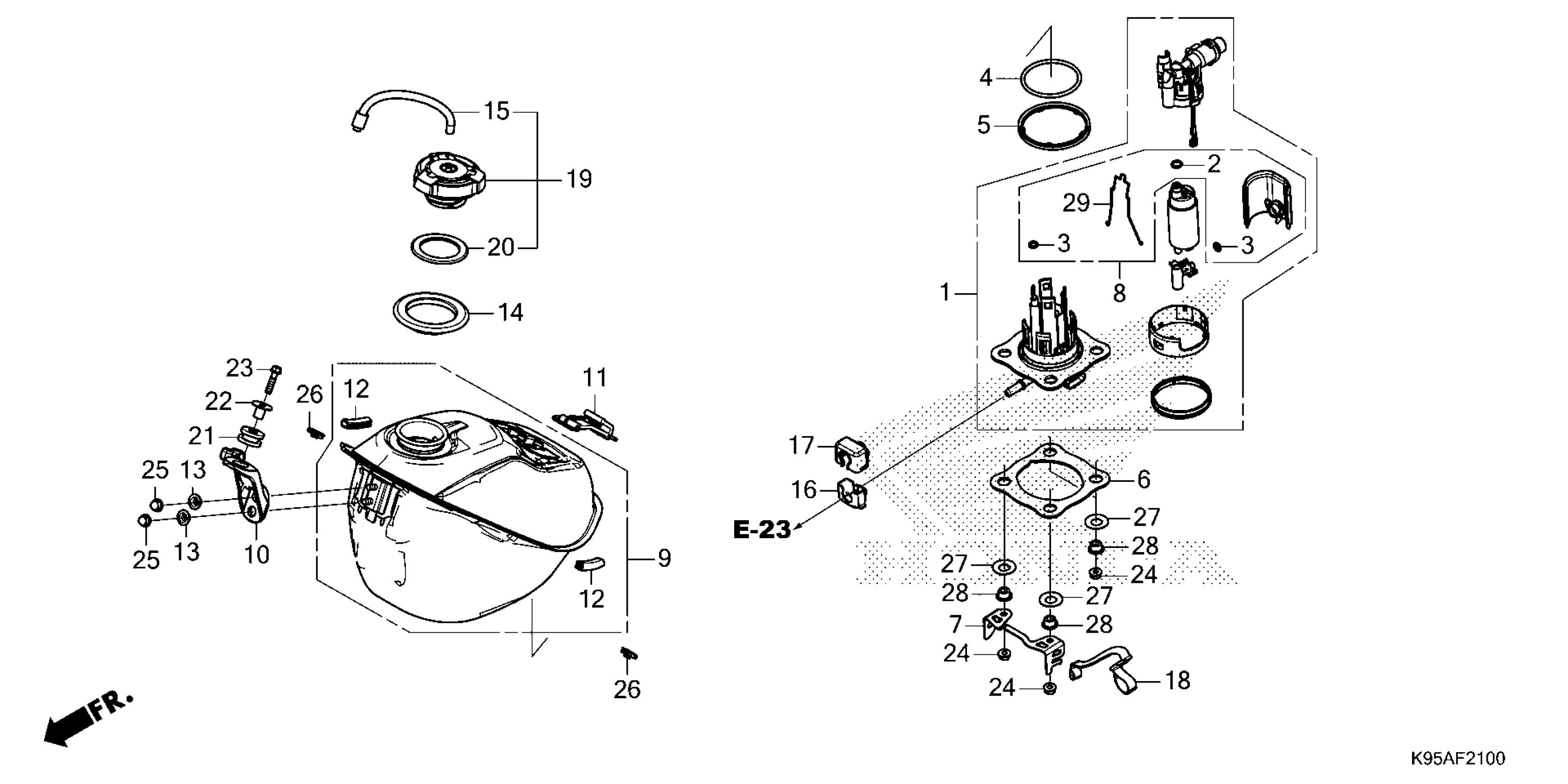

Honda CRF250RAC (24) MOTORCYCLE, JPN, VIN# JH2ME123-RK600001 FUEL TANK (1) Diagram

PUMP ASSY., FUEL (MSDS)

16700-MKE-AF3

$387.22

O-RING (8.6X1.9)

16702-KPC-D50

$1.49

O-RING (6.8X1.9)

16706-GGL-J01

$4.85

O-RING (3.7X57.8)

16711-MKE-AF0

$13.91

DUST SEAL

16712-MKE-AF0

$10.96

PLATE, FUEL PUMP

16713-MKE-AF0

$13.92

GUARD, FUEL JOINT

16714-MKE-AF0

$18.36

FILTER SET

16715-MKE-AF3

$76.61

TANK ASSY., FUEL

17500-MKE-AF0

$936.82

STAY, FR. FUEL TANK

17516-MKE-AF0

$7.82

BAND, RR. TANK

17517-MKE-AF0

$14.62

TRIM, FUEL TANK

17518-MFN-D00

$2.80

COLLAR, FR. TANK STAY

17518-MKE-AF0

$4.43

DUST SEAL

17519-MKE-AF0

$6.95

TUBE, FUEL CAP BREATHER

17521-MKE-A70

$5.69

COVER, FUEL CONNECTOR

17575-MKE-AF0

$6.00

RUBBER, FUEL CONNECTOR

17576-KRN-A90

$5.89

STRAP, FUEL TANK

17577-MKE-AF0

$5.18

CAP ASSY., FUEL TANK

17620-MKE-AF0

$91.13

GASKET, FUEL CAP

17624-KT1-781

$4.81

RUBBER, MUFFLER

18334-KA3-830

$3.89

COLLAR, RADIATOR MOUNTING

19052-MAC-680

$5.14

BOLT, FLANGE (6X25)

90020-GHB-680

$2.26

NUT, FLANGE (6MM) (Honda Code 7039662)

90217-HW1-670

$1.79

NUT, FLANGE CAP (6MM)

90301-MKE-A00

$3.79

NUT, CLIP (5MM)

90301-MKE-AF0

$2.79

WASHER, CONICAL SPRING FUEL PUMP

90502-MEN-A30

$2.66

COLLAR, FUEL PUMP

90504-MKE-A00

$6.49

CLIP

16719-MKE-AF1

$3.19
