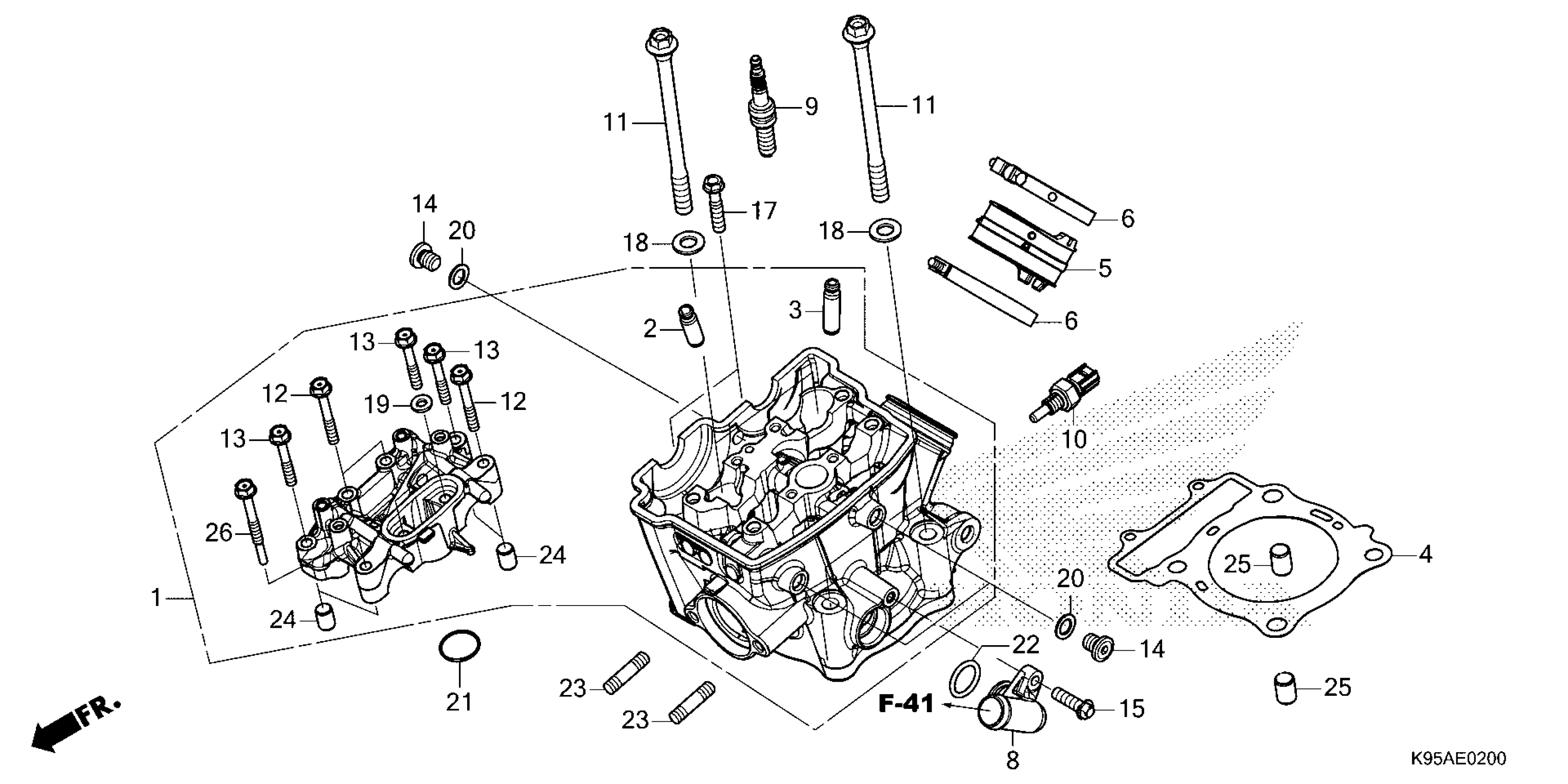

Honda CRF250RAC (24) MOTORCYCLE, JPN, VIN# JH2ME123-RK600001 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY.

12010-K95-AA0

$491.17

2

GUIDE, VALVE (OVER SIZE)

12204-K95-P20

$13.80

3

GUIDE, VALVE (OVER SIZE)

12204-KRN-P10

$11.97

4

GASKET, CYLINDER HEAD

12251-K95-A21

$26.48

5

INSULATOR

16211-K95-AA0

$12.93

6

BAND, INSULATOR

16217-MKE-AF0

$10.35

8

JOINT, WATER

19523-KRN-730

$15.04

9

SPARK PLUG (SILMAR9A9S) (NGK)

31909-MEN-A31

$16.40

10

SENSOR ASSY., WATER TEMPERATURE

37870-MGS-D31

$44.73

11

BOLT, FLANGE (10X135)

90001-K95-A20

$7.28

12

BOLT, FLANGE (6X45)

90004-K95-AA0

$2.78

13

BOLT, FLANGE (6X40)

90003-K95-A20

$2.67

14

BOLT, SPECIAL (10MM)

90042-K95-AA0

$3.72

15

BOLT, FLANGE (6X20)

90020-GHB-660

$2.12

17

BOLT, FLANGE (6X28)

90020-GHB-690

$2.12

18

WASHER, PLAIN (10MM)

90453-MKE-A00

$2.58

19

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.80

20

WASHER, SEALING (10.2MM)

90443-MB0-000

$2.80

21

O-RING, PLUG HOLE

12395-MKR-D10

$3.18

22

O-RING (19X3) (NOK)

91312-KE7-003

$2.38

23

BOLT, STUD (8X34)

90012-KM9-000

$2.86

24

PIN A, DOWEL (8X10)

94301-08100

$2.04

25

PIN A, DOWEL (12X16)

94301-12160

Unavailable

26

BOLT (6X45)

90007-K95-AA0

$4.78
