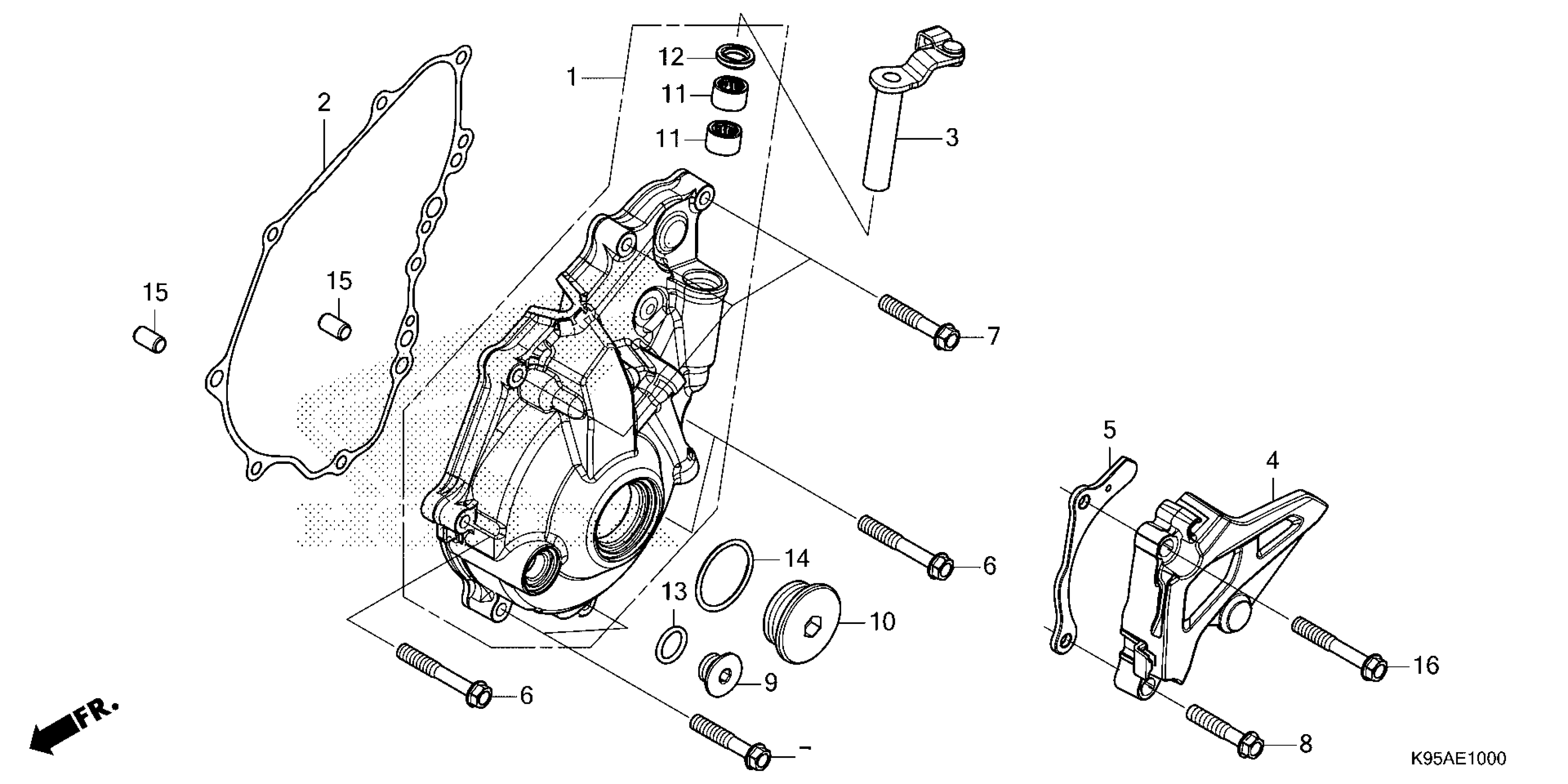

Honda CRF250RAC (23) MOTORCYCLE, JPN, VIN# JH2ME123-PK500001 TO JH2ME123-PK599999 LEFT CRANKCASE COVER Diagram

COVER, L. CRANKCASE

11340-K95-AA0

$152.20

GASKET, L. COVER

11395-K95-A21

$16.86

LEVER COMP This part replaces 22810-K95-AA0.

22810-K95-AA1

$42.98

LEVER COMP

22810-K95-AA1

$42.98

COVER, DRIVE SPROCKET

23810-K95-A60

$24.48

GUIDE, DRIVE CHAIN

23812-K95-AA0

$11.28

BOLT, FLANGE (6X40)

90020-GHB-740

$2.66

BOLT, FLANGE (6X32)

90020-GHB-710

$2.66

BOLT, FLANGE (6X30)

90021-GHB-700

$2.33

CAP (14MM)

90085-K95-AA0

$9.55

CAP (32MM)

90087-K95-AA0

$17.54

BEARING, NEEDLE (12X16X10) This part replaces 91053-719-005.

91101-PZ9-000

$8.68

BEARING, NEEDLE (12X16X10)

91101-PZ9-000

$8.68

OIL SEAL (12X18X3) (ARAI)

91205-MEB-671

$3.45

O-RING (13.8X2.5)

91303-377-000

$3.42

O-RING (31.7X2.4)

91305-KRM-840

$1.49

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.25

BOLT, FLANGE (6X40)

90021-GHB-740

$2.70
