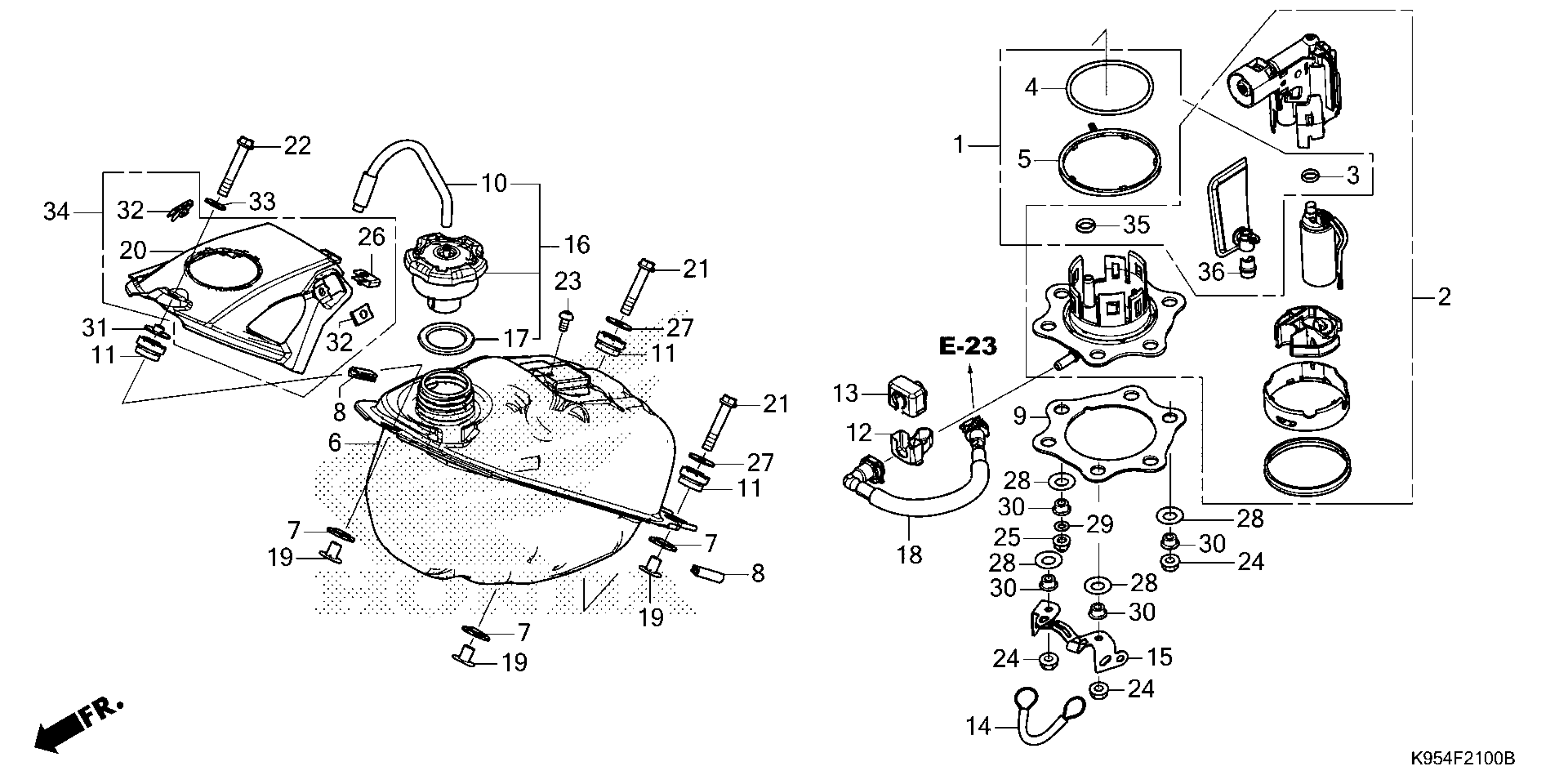

Honda CRF250RAC (21) MOTORCYCLE, JPN, VIN# JH2ME123-MK300001 FUEL TANK (1) Diagram

#

Description
Price

1

FILTER KIT, FUEL

06160-MKE-A00

$74.81

2

PUMP ASSY., FUEL

16700-MKE-A01

$392.29

3

O-RING (8.6X1.9)

16702-KPC-D50

$0.51

4

O-RING (3.7X73.9)

16711-MEN-A30

$10.86

5

DUST SEAL

16712-MKE-A00

$12.74

6

TANK, FUEL

17510-MKE-A00

$924.88

7

COLLAR, TANK MOUNTING

17515-MKE-A00

$11.44

8

TRIM, FUEL TANK

17518-MFN-D00

$2.59

9

PLATE, FUEL PUMP

17519-MKE-A00

$19.22

10

TUBE, FUEL CAP BREATHER

17521-MKE-A70

$4.93

11

RUBBER, TANK MOUNTING

17523-MKE-A00

$6.25

12

COVER, FUEL CONNECTOR

17575-KRN-A90

$6.60

13

RUBBER, FUEL CONNECTOR

17576-KRN-A90

$5.62

14

CABLE, FUEL TANK STOPPER

17577-MEN-A30

$7.13

15

GUIDE, STOPPER CABLE

17578-K95-A20

$23.69

16

CAP ASSY., FUEL TANK

17620-MKE-A70

$84.19

17

GASKET, FUEL CAP

17622-MKE-A00

$5.85

18

HOSE, FUEL FEED

17630-MKE-A01

$72.07

19

COLLAR, RADIATOR MOUNTING

19052-MAC-680

$4.90

21

BOLT, FLANGE (6X28)

90020-GHB-690

$2.15

22

BOLT, FLANGE (6X35)

90021-GHB-720

$2.25

23

BOLT, SPECIAL (5X10) (SUS)

90119-MGE-000

$3.86

24

NUT, FLANGE (6MM) (Honda Code 7039662)

90217-HW1-670

$1.65

25

NUT, FLANGE CAP (6MM)

90301-MKE-A00

$3.50

26

NUT, CLIP (5MM) (Honda Code 7963051)

90305-HW1-730

Unavailable

27

WASHER, PLAIN (6MM)

90404-GE2-760

$2.06

28

WASHER, CONICAL SPRING FUEL PUMP

90502-MEN-A30

$2.46

29

WASHER, PLAIN (6MM) (Honda Code 7039829)

90504-HW1-670

$1.72

30

COLLAR, FUEL PUMP

90504-MKE-A00

$6.19

31

COLLAR, FR. FENDER

90512-KZ4-J20

$3.83

32

NUT, CLIP (5MM) (Honda Code 7963051)

90305-HW1-730

Unavailable

33

WASHER, PLAIN (6MM)

94103-06700

$0.66

34

SHELTER ASSY.

83150-MKE-A70

$31.60

35

O-RING (10X2.4)

16702-KTR-940

$5.04

36

RUBBER, STOPPER

16735-MEN-A51

$7.31
