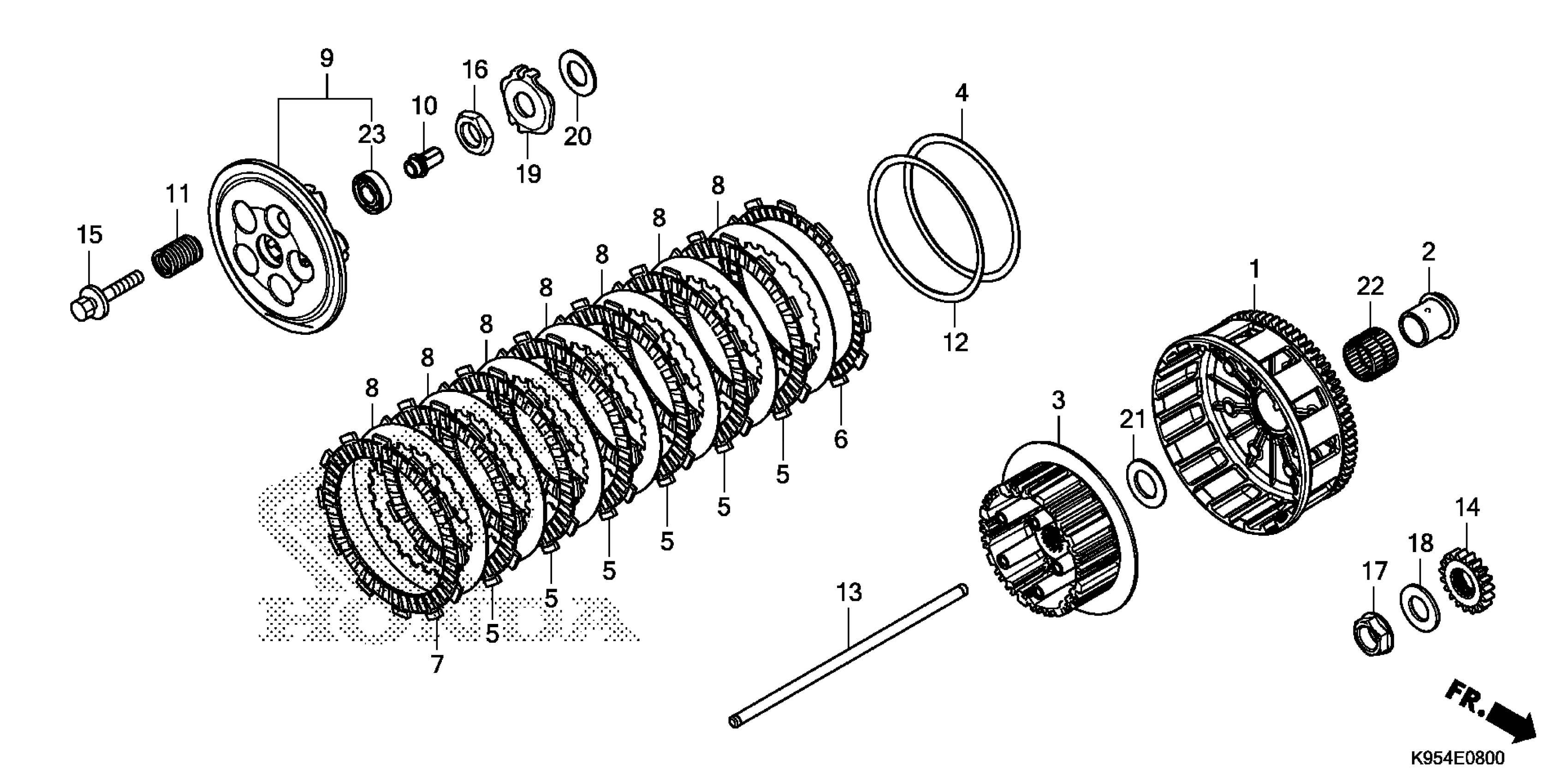

Honda CRF250RAC (19) MOTORCYCLE, JPN, VIN# JH2ME123-KK100001 TO JH2ME123-KK199999 CLUTCH Diagram

CLUTCH OUTER

22100-K95-A21

$315.49

COLLAR, CLUTCH (OUTER)

22116-K95-A20

$13.78

CENTER, CLUTCH

22120-K95-A20

$88.38

SEAT, JUDDER SPRING

22125-MJL-D30

$8.32

DISK, CLUTCH FRICTION

22201-K95-A20

$11.76

DISK B, CLUTCH FRICTION

22202-K95-A20

$11.76

DISK, CLUTCH FRICTION

22203-K95-A20

$11.76

PLATE, CLUTCH

22321-KF0-770

$13.69

PLATE, CLUTCH PRESSURE

22350-K95-A20

$59.01

PIECE, CLUTCH LIFTER

22352-K95-A21

$33.46

SPRING, CLUTCH

22401-KRN-A80

$6.01

SPRING, JUDDER

22402-MJL-D31

$43.21

ROD, CLUTCH LIFTER

22850-K95-A20

$56.84

GEAR, PRIMARY DRIVE (19T)

23121-K95-A20

$62.31

BOLT-WASHER (6X28)

90024-MAS-000

$3.56

NUT (18MM)

90235-MEN-A30

$4.90

NUT, HEX. (18MM)

90303-ZX2-C00

$9.12

WASHER, SPECIAL (18MM)

90432-HP0-A00

$2.80

WASHER, LOCK (18MM)

90441-KSC-670

$3.11

WASHER, THRUST (18X32)

90456-KA4-000

$4.26

WASHER, THRUST (20MM)

90459-KB4-670

$3.99

BEARING, NEEDLE (25X29X22) (TOYO)

91011-KS6-003

$28.89

BEARING, RADIAL BALL (6001)

96140-60010-00

$11.38
