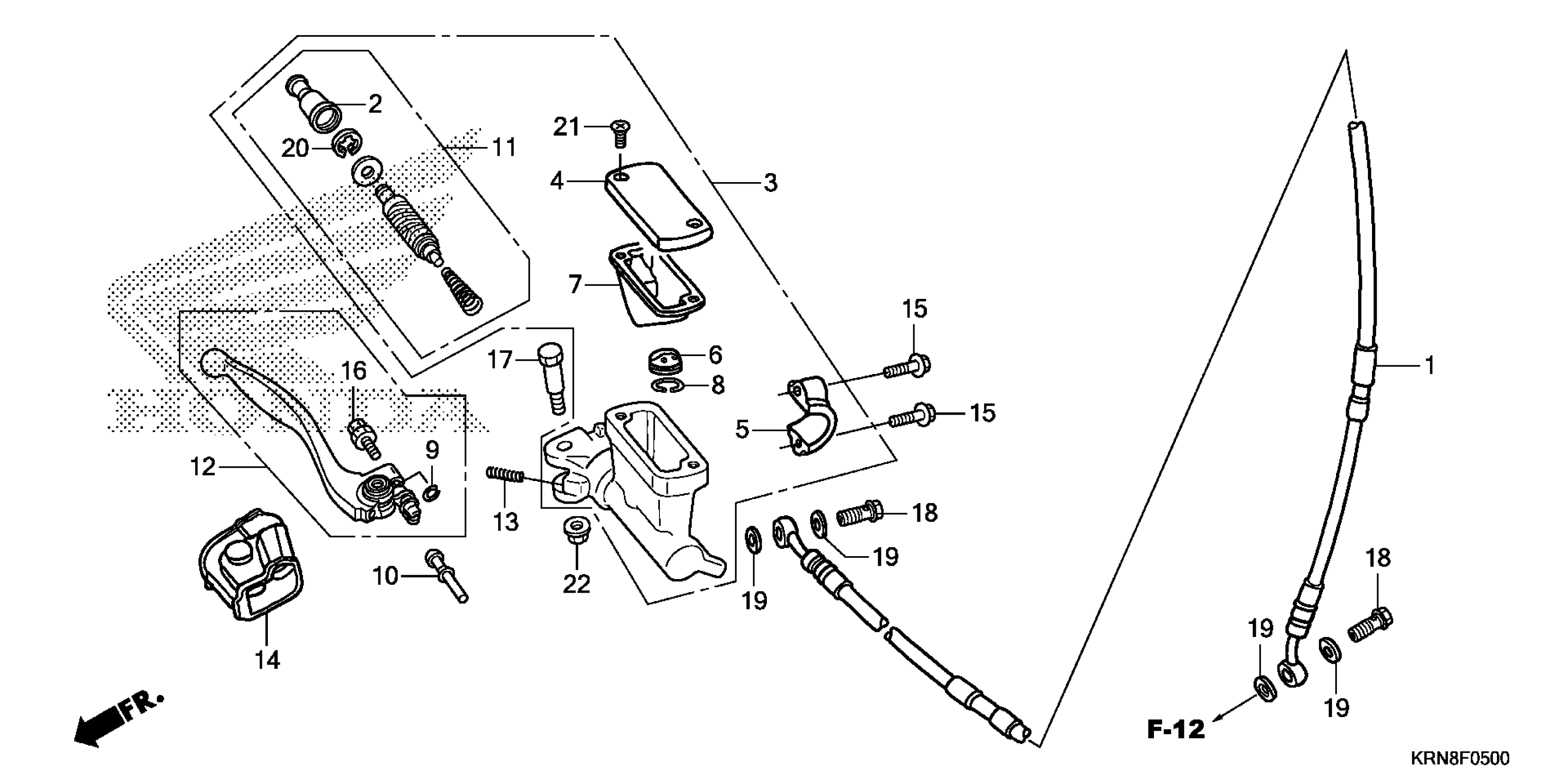

Honda CRF250RAC (17) MOTORCYCLE, JPN, VIN# JH2ME103-HK400001 FRONT BRAKE MASTER CYLINDER Diagram

HOSE, FR. BRAKE

45125-MEN-B11

$117.87

BOOT

45504-MEN-J01

$9.20

MASTER CYLINDER SUB-ASSY., FR. BRAKE (NISSIN)

45510-KRN-A91

$212.02

MASTER CYLINDER SUB-ASSY., FR. BRAKE (NISSIN) This part replaces 45510-KRN-305.

45510-KRN-A91

$212.02

CAP, MASTER CYLINDER

45513-KCE-671

$23.01

HOLDER, MASTER CYLINDER

45517-GW0-751

$12.41

SEPARATOR

45518-MEN-J01

$7.18

DIAPHRAGM

45520-KA3-731

$13.57

RING

45523-KA3-731

$2.92

RING

45523-MEB-003

$1.49

ROD, PUSH

45525-MEN-J01

$7.73

PISTON SET, MASTER CYLINDER

45530-MEN-J01

$39.67

LEVER, R. HANDLEBAR

53171-MEN-J01

$38.01

LEVER, R. HANDLEBAR This part replaces 53171-MEN-305.

53171-MEN-J01

$38.01

SPRING, BRAKE LEVER

53174-KN5-006

$2.97

COVER, R. HANDLE LEVER

53176-MEN-J01

$8.13

BOLT (6X22)

90102-MEN-A60

$2.62

BOLT SET, ADJUSTING

90111-MEB-003

$3.87

BOLT, HANDLE LEVER

90114-MEN-J01

$4.08

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$7.54

WASHER, OIL BOLT

90545-300-000

$3.99

CIRCLIP

90651-MA5-671

$2.66

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49
