Description

Price

1

FRAME

50100-KRN-B10

$2,157.66

2

BRACKET, ECU

50124-MEN-A70

$7.72

3

STAY, STOPPER CABLE

50127-KRN-A80

$5.50

4

GUIDE, CABLE

50128-MEN-A70

$12.59

5

STAY, CONNECTOR

50184-KRN-A80

$7.07

6

FRAME, RR.

50200-MEN-A70

$819.74

7

PLATE, SEAT STOPPER

50217-MEN-A70

$7.04

8

GUARD, L. ENGINE

50360-KRN-A90

$10.77

9

PLATE, FR. ENGINE HANGER

50405-KRN-A40

$7.88

10

PLATE, R. HEAD HANGER

50407-KRN-A81

$68.90

11

PLATE, L. HEAD HANGER

50408-KRN-A81

$68.90

12

COLLAR, SPLASH GUARD

80123-MA1-640

$1.90

13

BOLT, FLANGE (8X121)

90101-KRN-A40

$6.00

14

BOLT (8X28)

90101-MEN-A10

$2.80

15

BOLT (6X12)

90101-MEN-A60

$2.03

16

BOLT, FLANGE (10X30)

90102-MEN-A30

$3.48

17

BOLT, FLANGE (8X18)

90103-MEB-670

$1.81

18

BOLT, FLANGE (10X126)

90104-MEY-670

$6.24

19

BOLT, FLANGE (10X37)

90105-MEN-A30

$3.71

20

BOLT, FLANGE (6X16)

90106-MJ0-000

$2.80

21

BOLT, FLANGE (10X134)

90111-MEN-A70

$6.18

22

BOLT (10X24)

90122-MEN-730

$2.15

23

NUT, FLANGE (10MM)

90302-KZ3-J40

$2.51

24

WASHER (10MM)

90410-HC4-000

$3.65

25

BOLT-WASHER (6X18)

93404-06018-00

$0.99

26

SCREW-WASHER (4X16)

93891-04016-08

$1.06

27

NUT, FLANGE (8MM) NUT, FLANGE (10MM)

94050-08000

$0.87

28

BOLT, FLANGE (6X12)

96001-06012-00

$1.66

29

FILM, PROTECTOR

17503-KCM-620

$3.47

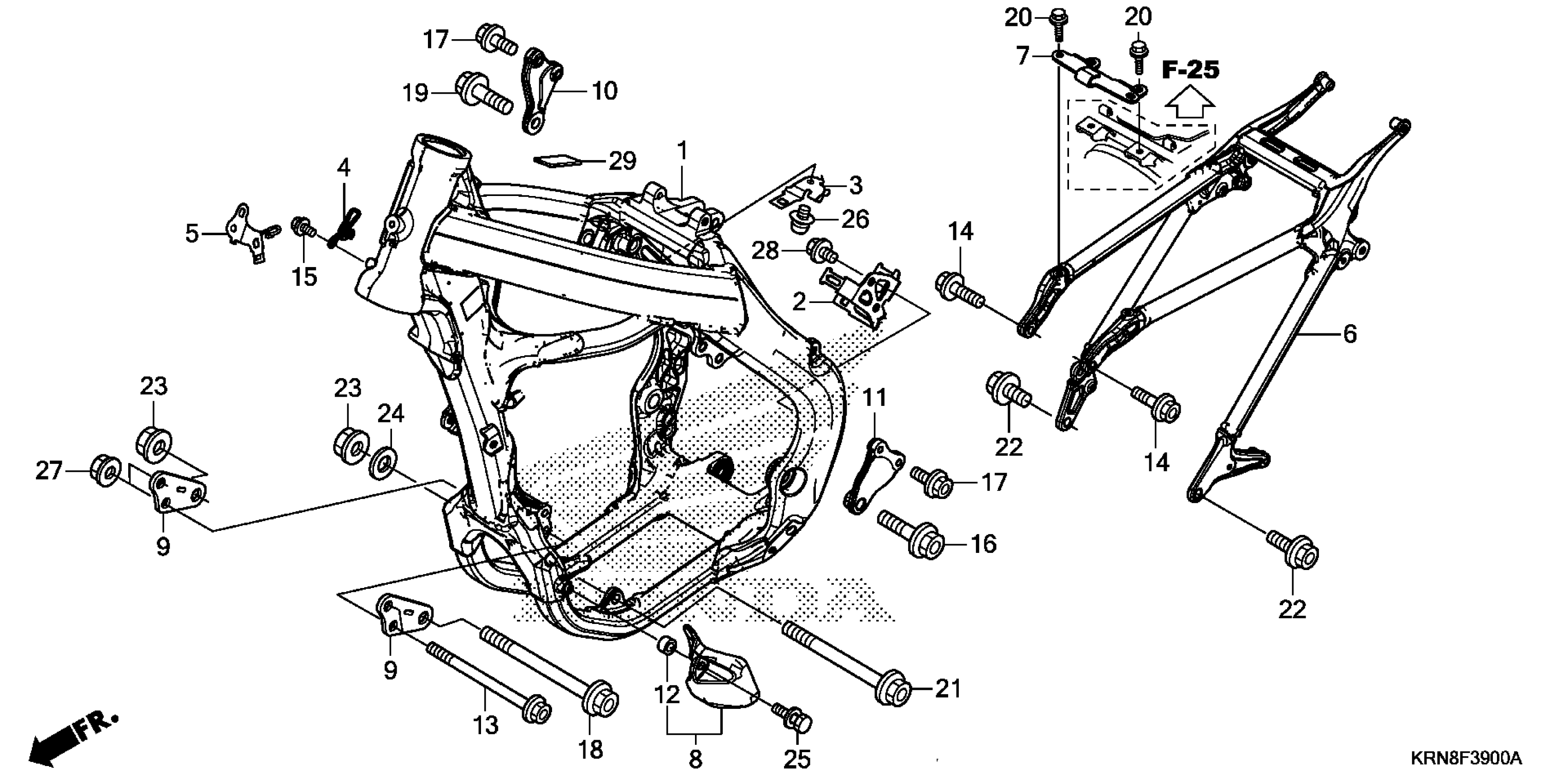

Honda CRF250RAC (17) MOTORCYCLE, JPN, VIN# JH2ME103-HK400001 FRAME Diagram
