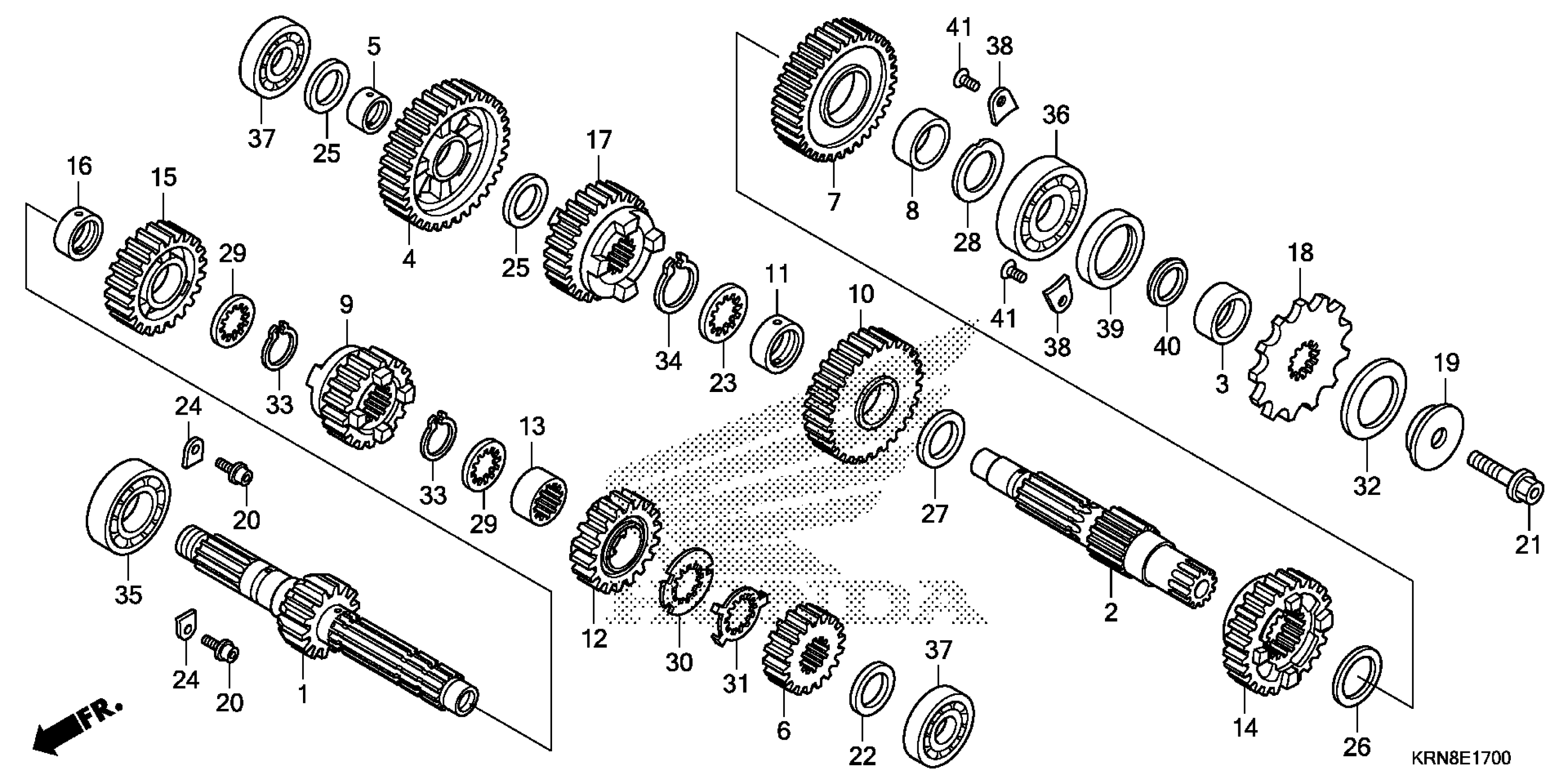

Honda CRF250RAC (16) CRF250R, JPN, VIN# JH2ME103-GK300001 TO JH2ME103-GK399999 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT (14T)

23210-KRN-A80

$159.16

2

COUNTERSHAFT

23221-KRN-A80

$156.95

3

COLLAR, COUNTERSHAFT

23225-KSC-670

$11.95

4

GEAR, COUNTERSHAFT LOW (33T)

23411-KRN-A80

$111.05

5

COLLAR (17MM)

23413-KRN-A40

$7.43

6

GEAR, MAINSHAFT SECOND (18T)

23421-KRN-A80

$54.56

7

GEAR, COUNTERSHAFT SECOND (34T)

23431-KRN-A80

$111.05

8

COLLAR (24MM)

23432-KRN-A40

$7.72

9

GEAR, MAINSHAFT THIRD (18T)

23441-KRN-A80

$109.95

10

GEAR, COUNTERSHAFT THIRD (28T)

23451-KRN-A80

$105.38

11

COLLAR, COUNTERSHAFT THIRD GEAR

23452-KSC-670

$9.79

12

GEAR, MAINSHAFT FOURTH (18T)

23461-KRN-A80

$96.46

13

COLLAR, MAINSHAFT FOURTH GEAR

23462-KRN-A40

$11.31

14

GEAR, COUNTERSHAFT FOURTH (24T)

23471-KRN-A80

$109.95

15

GEAR, MAINSHAFT FIFTH (22T)

23481-KRN-A80

$99.82

16

COLLAR (20MM)

23482-KRN-A40

$7.02

17

GEAR, COUNTERSHAFT FIFTH (25T)

23491-KRN-A80

$121.97

18

SPROCKET, DRIVE (13T)

23801-KSR-A00

$35.78

19

COLLAR, DRIVE SPROCKET

23802-KSC-670

$14.68

20

BOLT, FLANGE SOCKET (6X14)

90071-MF5-000

$3.35

21

BOLT, UBS (8X33)

90112-413-000

$3.85

22

WASHER, SPECIAL (17MM)

90403-HN8-000

$2.90

23

WASHER, THRUST INVOLUTE (22X21X1)

90404-KW3-000

$3.87

24

PLATE, BEARING HOLDER

90441-KRM-840

$1.49

25

WASHER, THRUST (17.2MM)

90446-357-000

$3.60

26

WASHER (24X32X1)

90452-KSR-A00

$3.00

27

WASHER, THRUST (22X30X1)

90452-KZ4-000

$5.05

28

WASHER (22X33X1.5)

90453-KRN-A80

$3.31

29

WASHER, SPLINE (20MM)

90455-HM8-A40

$2.44

30

WASHER, SPLINE (20MM)

90461-KRN-A80

$3.30

31

WASHER, LOCK (20MM)

90462-KRN-A80

$3.38

32

WASHER, SPRING (24MM)

90501-KSC-670

$4.26

33

SET-RING (20MM)

90601-360-000

$9.19

34

SET-RING, COUNTER SECOND

90602-360-000

$9.66

35

BEARING, RADIAL BALL (22X47X14)

91004-KSC-671

$13.84

36

BEARING, RADIAL BALL (22X52X14)

91005-KRN-A41

$18.22

37

BEARING, RADIAL BALL (17X40X11)

91006-MEN-A71

$21.39

38

PLATE, COUNTERSHAFT BEARING

91012-KRN-A40

$5.87

39

OIL SEAL (28X37X7)

91201-KSR-A01

$8.05

40

D-RING (22MM)

91301-KSR-A01

$2.95

41

SCREW, FLAT (6X10)

93600-06010-0H

$1.49
