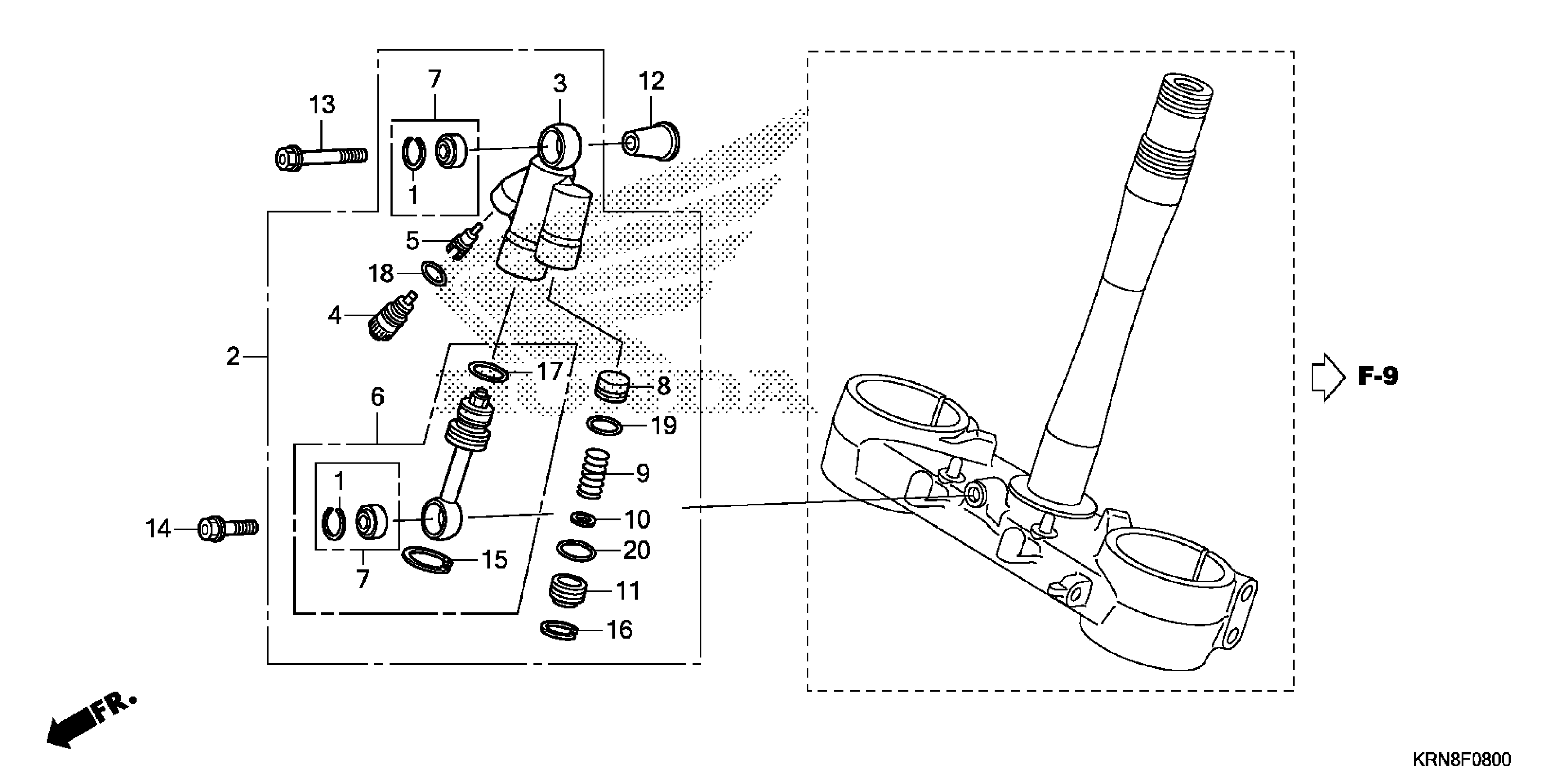

Honda CRF250RAC (16) CRF250R, JPN, VIN# JH2ME103-GK300001 TO JH2ME103-GK399999 STEERING DAMPER Diagram

#

Description
Price

1

RING, STOPPER

52487-MEN-A11

$10.61

2

DAMPER ASSY., STEERING

53700-KRN-A71

$491.30

3

CASE, DAMPER

53701-MEN-A51

$143.77

4

BOLT, PLUG

53711-MEN-A51

$47.11

5

PIECE, ADJUST

53712-MEN-A51

$10.36

6

ROD, PISTON

53721-KRN-A71

$209.56

7

BEARING

53731-MEN-A11

$88.20

8

PISTON, FREE

53754-MEN-A11

$10.00

9

SPRING, RETURN

53755-MEN-A51

$6.89

10

WASHER

53756-KRN-A71

$5.69

11

CAP, END

53757-MEN-A11

$8.89

12

COLLAR, STEERING DAMPER

53782-MEN-A70

$6.62

13

BOLT (7X51.5)

90124-MEN-A10

$5.49

14

BOLT (7X25)

90125-MEN-A10

$4.15

15

CIRCLIP (26)

90651-MEN-A51

$4.34

16

CIRCLIP (17.3)

90652-MEN-A11

$3.64

17

O-RING (21.9X2) (SHOWA)

91256-ML3-791

$4.26

18

O-RING (9.5X1.5)

91351-MEN-A11

$2.07

19

O-RING (11X1.9)

91352-MEN-A11

$1.92

20

O-RING (13.5X1.5)

91353-MEN-A11

$2.07
