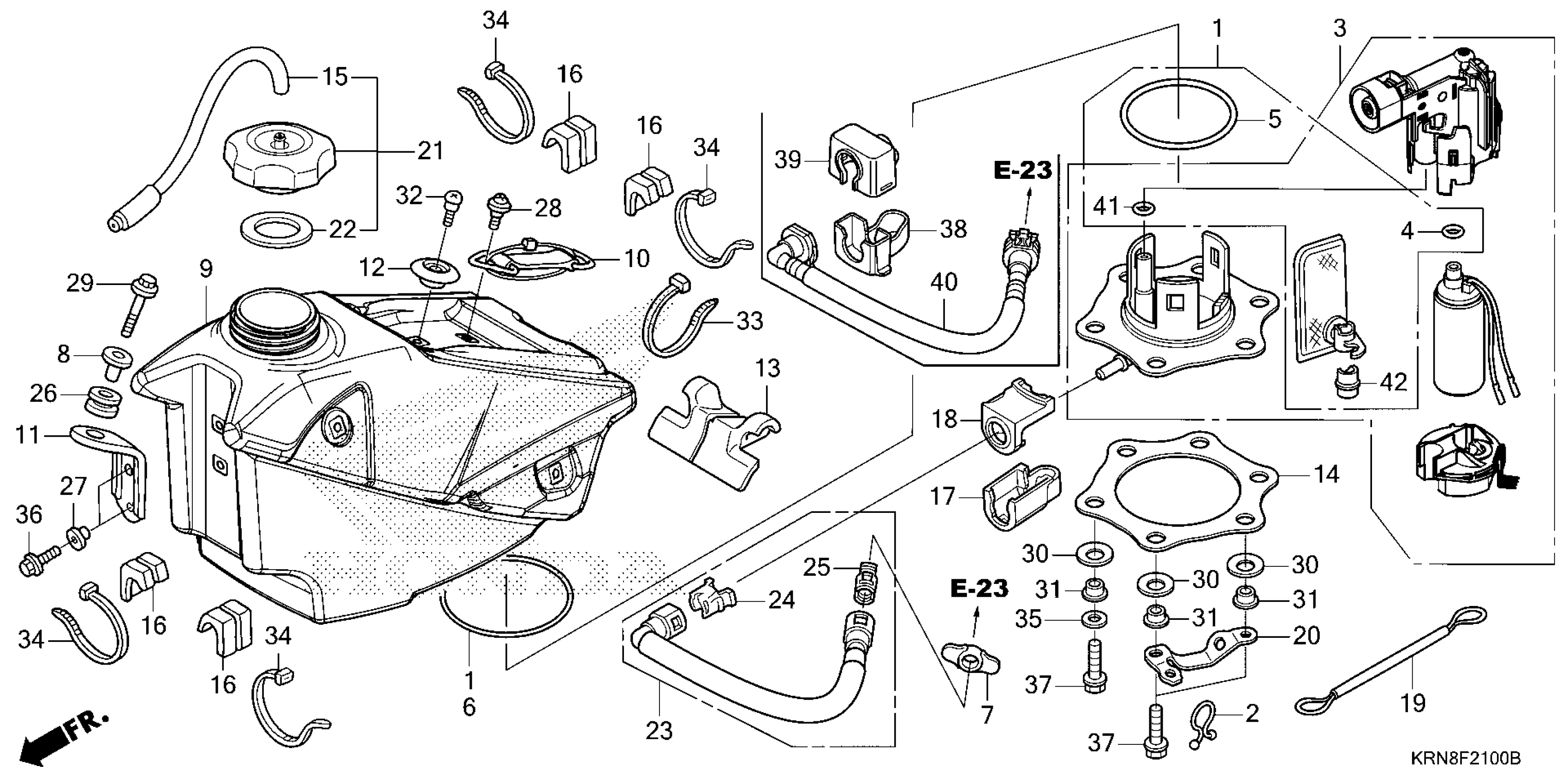

Honda CRF250RAC (16) CRF250R, JPN, VIN# JH2ME103-GK300001 TO JH2ME103-GK399999 FUEL TANK Diagram

FILTER KIT, FUEL

06160-MEN-A50

$88.17

CLIP, BREATHER TUBE PROTECTOR

15712-PD1-811

$9.39

PUMP ASSY., FUEL (THIS PUMP REQ'S FUEL FILTER KIT 06160-MEN-A50 FOR SERVICE)

16700-MEN-A52

$364.34

O-RING (8.6X1.9)

16702-KPC-D50

$1.49

O-RING (3.7X73.9)

16711-MEN-A30

$12.17

O-RING (2.4X88.4)

16712-MEN-A30

$11.06

COLLAR, TANK SETTING

17509-KZ3-B00

$9.00

TANK, FUEL

17510-MEN-A70

$912.64

BAND, RR. TANK

17516-KZ3-B00

$16.29

STAY, FR. FUEL TANK

17516-MEN-A30

$7.80

COLLAR, FR. SEAT

17518-KZ4-710

$5.80

RUBBER, FUEL TANK MOUNTING

17518-MEN-A70

$15.69

PLATE, FUEL PUMP

17519-MEN-A30

$18.49

TUBE, FUEL CAP BREATHER

17521-MEN-A30

$6.05

RUBBER, TANK SIDE MOUNTING

17522-MEN-730

$6.58

CABLE, FUEL TANK STOPPER

17577-MEN-A30

$7.72

GUIDE, STOPPER CABLE

17578-MEN-A30

$8.43

CAP ASSY., FUEL TANK

17620-MEN-A30

$91.13

GASKET, FUEL CAP This part replaces 17624-KT1-780.

17624-KT1-781

$4.81

RUBBER, MUFFLER

18334-ML3-680

$3.87

COLLAR

84706-415-000

$2.23

SCREW (5X12)

90105-MEN-730

$1.67

BOLT (6X30)

90108-MEN-A60

$2.62

WASHER, CONICAL SPRING FUEL PUMP

90502-MEN-A30

$2.66

COLLAR, FUEL PUMP

90503-MEN-A31

$4.67

SCREW, SPECIAL (5MM)

91422-MT8-770

$2.90

TY-RAP, CABLE (240MM)

91560-MEN-A30

$1.97

TY-RAP, CABLE

91560-MS8-600

$2.38

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

WASHER, PLAIN (6MM) (USED ON TAILLIGHT)

94101-06800

$1.49

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

BOLT, FLANGE (6X20)

96001-06020-00

$1.49

COVER, FUEL CONNECTOR

17575-KRN-A90

$6.92

RUBBER, FUEL CONNECTOR

17576-KRN-A90

$5.89

HOSE, FUEL FEED

17630-KRN-A91

$98.98

O-RING (10X2.4)

16702-KTR-940

$5.28

RUBBER, STOPPER

16735-MEN-A51

$7.92
