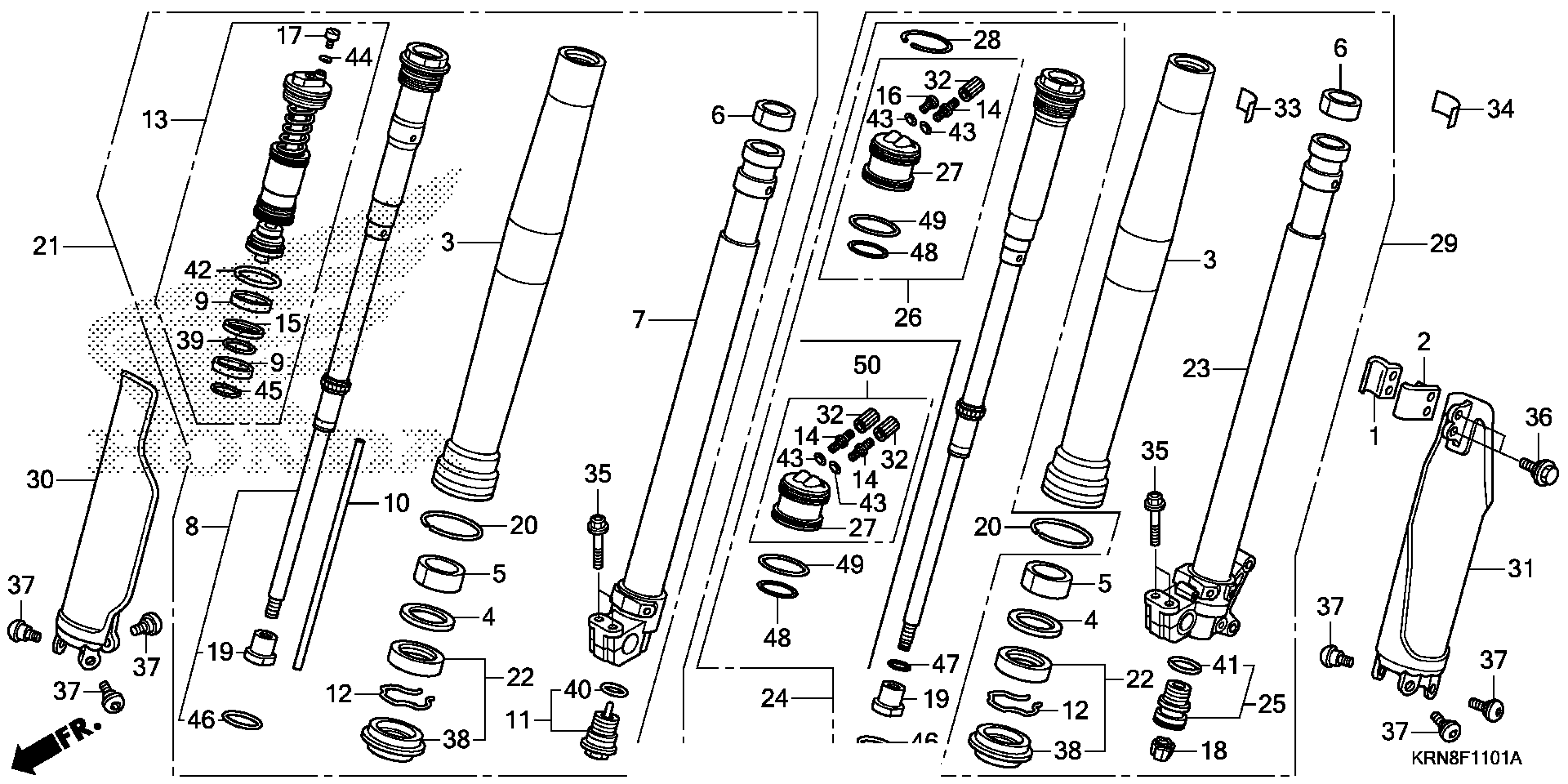

Honda CRF250RAC (16) CRF250R, JPN, VIN# JH2ME103-GK300001 TO JH2ME103-GK399999 FRONT FORK (2) Diagram

#

Description
Price

1

CLAMP A, FR. BRAKE HOSE

45461-MEN-000

$5.91

2

CLAMP B, FR. BRAKE HOSE

45462-MEN-000

$4.36

3

TUBE (OUTER)

51410-KRN-B11

$498.77

4

RING, BACK-UP

51412-KRN-A91

$7.62

5

BUSH, GUIDE

51414-KRN-A91

$11.74

6

BUSH, SLIDER

51415-KRN-A91

$11.56

7

PIPE, R. SLIDE

51420-KRN-A91

$411.54

8

DAMPER, FR.

51430-KRN-B11

$386.16

9

BUSH, SLIDER

51436-KRN-A91

$12.49

10

COLLAR, REBOUND NEEDLE

51438-KRN-A91

$10.63

11

BOLT, CENTER

51440-KRN-B11

$36.78

12

RING, OIL SEAL STOP

51447-KRN-A91

$3.49

13

BOLT ASSY., FR. FORK

51450-KRN-B11

$201.81

14

VALVE, AIR

51451-KRN-A91

$6.10

15

RING, PISTON

51453-KRN-A91

$9.12

17

BOLT, PLUG

51456-KZ3-J41

$5.78

18

CAP, AIR VALVE

51457-KRN-A91

$1.80

19

NUT, LOCK

51458-KRN-A91

$10.74

20

RING, WEAR

51476-KRN-A91

$7.19

21

FORK SUB-ASSY., R. FR. (COO) (SHOWA)

51480-KRN-406

$1,231.19

22

SEAL SET, FR. FORK

51490-KRN-A91

$23.71

23

PIPE, L. SLIDE

51520-KRN-A91

$411.54

24

ROD, JOINT

51530-KRN-B11

$465.00

25

BOLT, SEALING

51540-KRN-A91

$30.03

27

CAP, CHAMBER

51552-KRN-A91

$49.52

28

RING, STOPPER

51555-KRN-A91

$6.22

29

FORK SUB-ASSY., L. FR. (COO) (SHOWA)

51580-KRN-406

$1,141.62

30

PROTECTOR, R. FR. FORK *NH196* (ROSS WHITE)

51610-MEN-000ZE

$65.33

31

PROTECTOR, L. FR. FORK *NH196* (ROSS WHITE)

51620-MEN-000ZE

$65.33

32

CAP, AIR VALVE (SHOWA)

52425-169-003

$4.96

33

LABEL, FR. FORK

87528-KRN-B10

$4.64

35

BOLT, FLANGE (8X40)

90108-KZ4-J40

$1.94

36

BOLT, FLANGE (6MM)

90113-KZ3-000

$2.58

37

BOLT, PROTECTOR

90113-MAC-780

$3.28

38

DUST SEAL

91254-KRN-A91

$11.41

39

O-RING (31.6X1.8)

91256-KRN-A91

$2.81

40

O-RING (22.1X1.9)

91257-KRN-A91

$2.29

41

O-RING (27.7X1.9)

91257-MEB-751

$2.07

42

O-RING (42.2X2.4)

91258-GF4-003

$5.50

43

O-RING (5.8X1.9) This part replaces 91301-469-003.

91305-323-000

$2.80

43

O-RING (5.8X1.9) O-RING (5.6X1.9) (ARAI)

91305-323-000

$2.80

44

O-RING (3.5X1.5)

91301-KZ3-711

$2.46

45

O-RING (35.5X2)

91302-MA3-661

$2.37

46

O-RING (47.2X2.4)

91351-KRN-A41

$3.52

47

O-RING (9.5X1.5)

91351-MEN-A11

$1.88

48

O-RING (36.5X2.0)

91358-KRN-A91

$2.83

49

O-RING (39.5X2.0)

91358-MA6-003

$3.82

50

CAP, CHAMBER

51550-KRN-B11

$63.74
