Description

Price

NI

CLUTCH KIT (INCLUDE-FRICTION DISC,PLATES, SPRINGS, AND O-RING/GASKET) | (Optional).

06001-KRN-004

$259.93

1

CLIP, PISTON PIN (10MM)

13115-147-000

$2.11

2

GEAR, BALANCER DRIVE (32T)

13415-KRN-A40

$83.13

3

CLUTCH OUTER

22100-KRN-A80

$362.28

4

CENTER, CLUTCH

22120-KRN-A40

$101.47

5

SEAT, JUDDER SPRING

22125-435-000

$9.15

6

DISK, CLUTCH FRICTION

22201-KRN-A10

$14.75

7

DISK B, CLUTCH FRICTION

22202-KSC-670

$15.38

8

PLATE, CLUTCH

22321-KF0-770

$14.92

9

PLATE, CLUTCH PRESSURE

22351-KRN-A40

$53.43

10

PIECE, CLUTCH LIFTER

22352-KRN-670

$32.59

11

SPRING, CLUTCH

22401-KRN-A80

$6.30

12

SPRING, JUDDER

22402-435-000

$34.37

13

ROD, CLUTCH LIFTER

22850-KRN-A80

$18.66

14

GEAR, PRIMARY DRIVE (18T)

23121-KRN-A40

$68.46

15

COLLAR, CLUTCH (OUTER)

28237-KZ4-A10

$35.79

16

BOLT, SPECIAL (12X28)

90013-MEB-670

$5.98

17

BOLT-WASHER (6X25)

90022-MM5-000

$2.97

18

NUT (18MM)

90235-MEN-A30

$5.14

19

WASHER, PLAIN (12MM)

90402-KW6-960

$5.55

20

WASHER, LOCK (18MM)

90441-KSC-670

$3.26

21

WASHER, THRUST (18X32)

90456-KA4-000

$4.76

22

WASHER, THRUST (20MM)

90456-KRN-A40

$5.33

23

WASHER (12MM)

90608-072-000

$3.80

24

BEARING, NEEDLE (12MM) (NTN)

91001-147-003

$12.58

25

BEARING, NEEDLE (25X29X22) (TOYO)

91011-KS6-003

$31.47

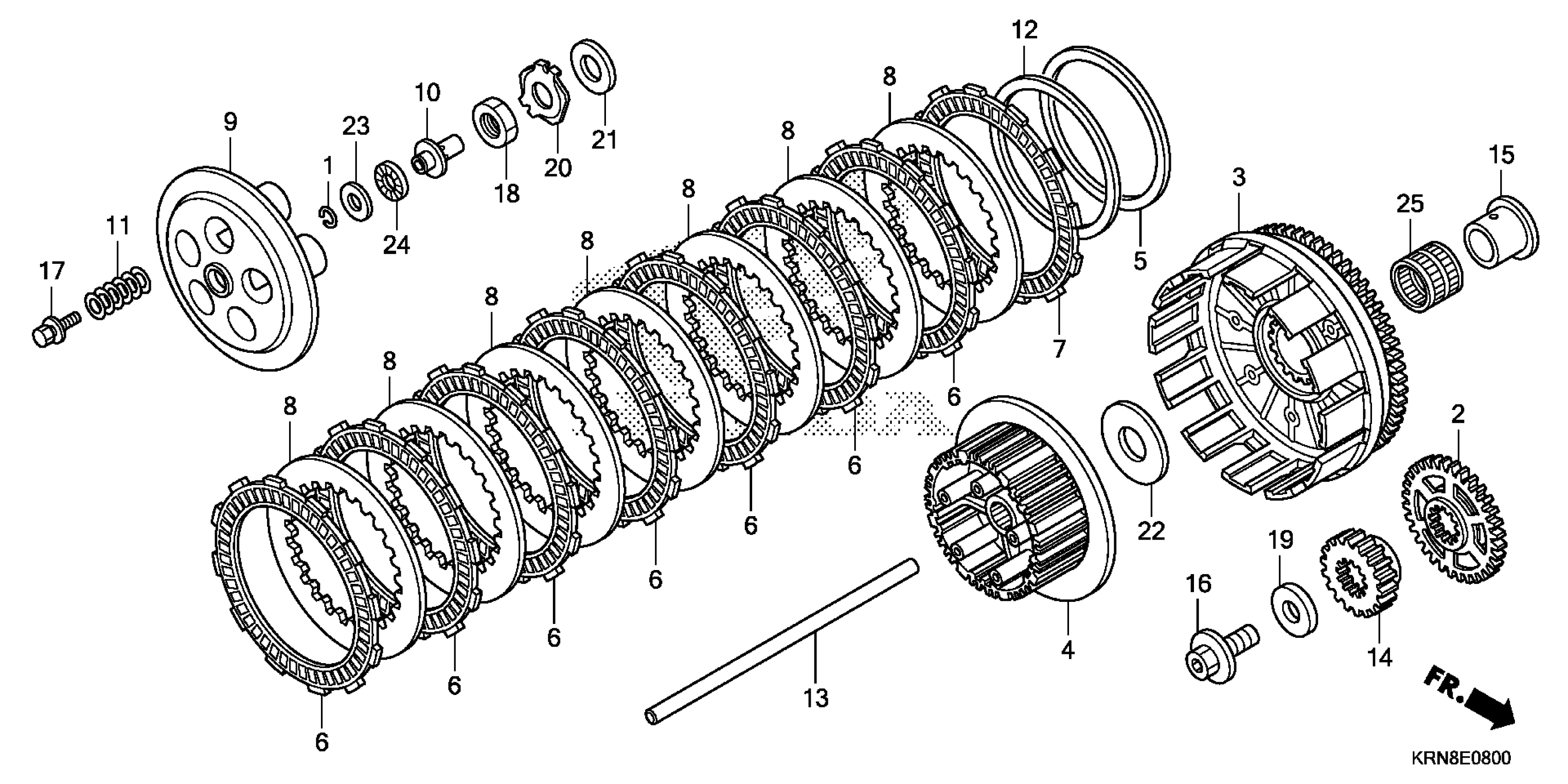

Honda CRF250RAC (16) CRF250R, JPN, VIN# JH2ME103-GK300001 TO JH2ME103-GK399999 CLUTCH Diagram
