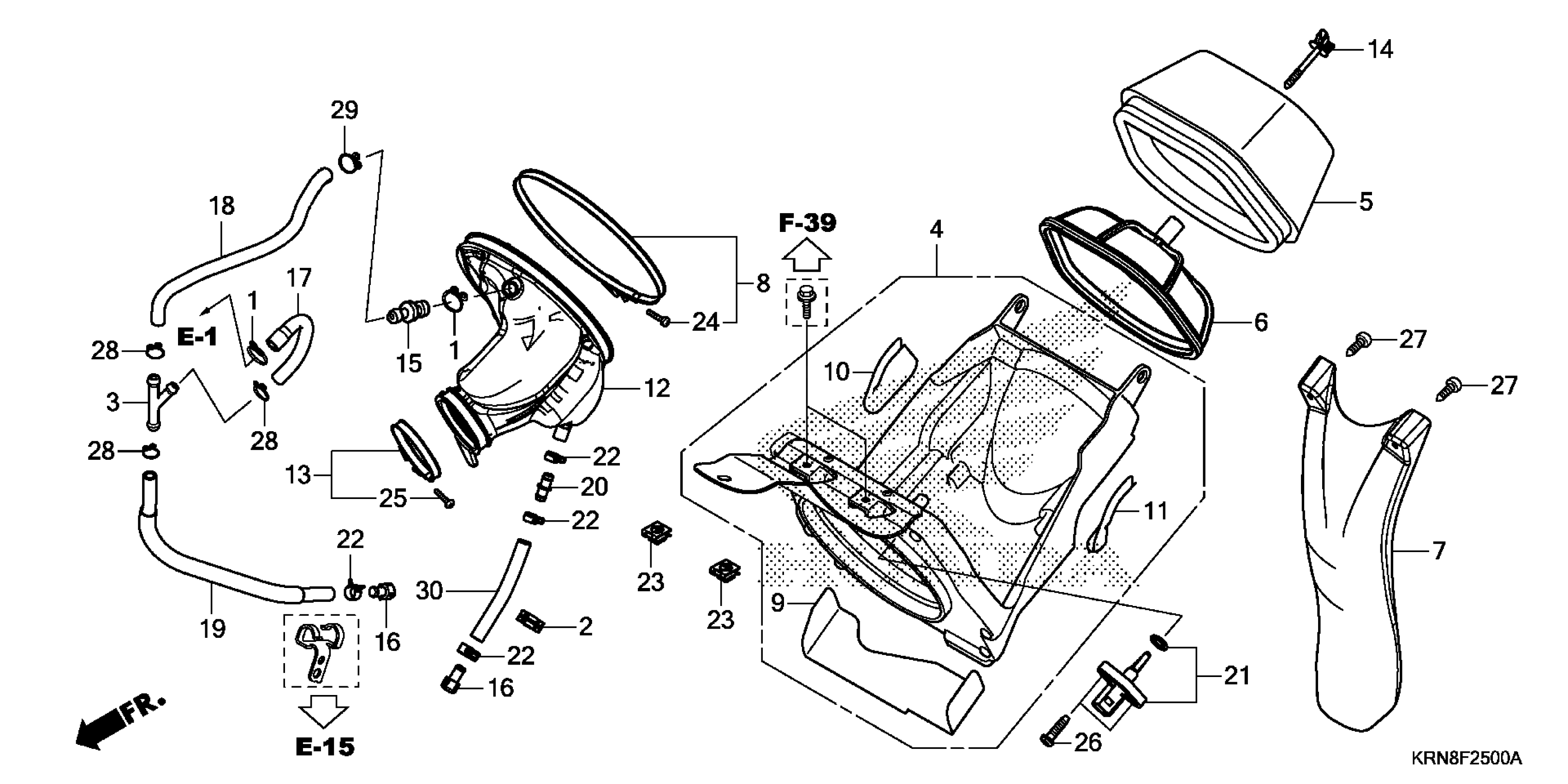

Honda CRF250RAC (16) CRF250R, JPN, VIN# JH2ME103-GK300001 TO JH2ME103-GK399999 AIR CLEANER Diagram

#

Description
Price

1

CLIP, OIL DRAIN TUBE

15771-551-000

$8.48

2

CLIP, TUBE

16731-MEN-A71

$1.94

3

JOINT, FUEL TUBE

16959-MY1-000

$15.97

4

HOUSING, AIR CLEANER

17210-MEN-A70

$121.61

5

ELEMENT, AIR CLEANER

17213-MEN-A70

$49.90

6

BASE ASSY., ELEMENT

17214-KRN-A90

$39.59

7

SPLASH GUARD

17218-MEN-A70

$47.46

8

BAND, AIR CLEANER CONNECTING TUBE (171)

17221-MEN-A30

$15.71

9

GUARD, HEAT

17221-MEN-A70

$9.39

10

GUARD, R. HEAT

17222-MEN-A70

$3.10

11

GUARD, L. HEAT

17223-MEN-A70

$3.33

12

TUBE, AIR CLEANER CONNECTING

17253-KRN-B10

$61.06

13

BAND, AIR CLEANER CONNECTING TUBE (60MM)

17255-MEN-A70

$14.46

14

BOLT, AIR CLEANER ELEMENT SETTING

17291-MEB-670

$5.96

15

JOINT, BREATHER TUBE

17359-MAG-L00

$4.90

16

PLUG, BREATHER TUBE

17370-419-700

$3.49

17

TUBE A, BREATHER

17372-KRN-A80

$11.30

18

TUBE B, BREATHER

17374-KRN-A80

$13.14

19

TUBE C, BREATHER

17375-KRN-A80

$9.01

20

JOINT, TUBE

19102-KT8-000

$6.16

21

SENSOR ASSY., AIR TEMPERATURE

37880-KWW-C01

$40.03

22

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$11.77

23

NUT, CLIP (6MM)

90305-GK8-000

$2.17

24

SCREW, PAN (4X25)

93500-04025-0G

$0.59

25

SCREW, PAN (4X30)

93500-04030-0G

$3.33

26

SCREW, TAPPING (5X20)

93911-25520

$0.71

27

SCREW, TAPPING (5X20)

93913-25580

Unavailable

28

CLIP, TUBE (B12)

95002-02120

Unavailable

29

CLIP, TUBE (B12.5)

95002-02130

$1.04

30

BULK HOSE, VINYL (8X12X8000) (Honda Code 4825345) (8X12X600)

95003-23008-60M

Unavailable
