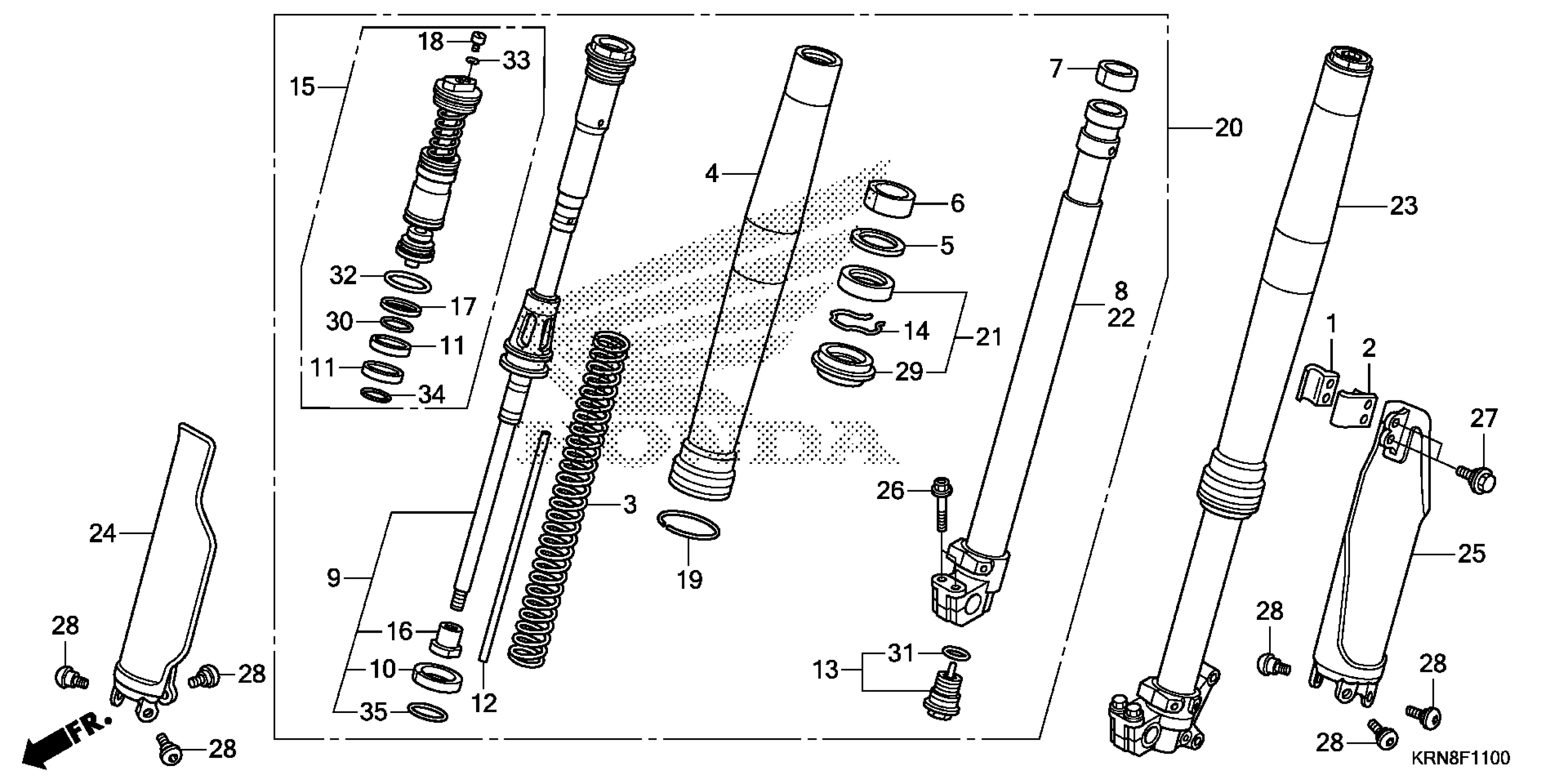

Honda CRF250RAC (14) CRF250R, JPN, VIN# JH2ME103-EK100001 TO JH2ME103-EK199999 FRONT FORK (1) Diagram

#

Description
Price

1

CLAMP A, FR. BRAKE HOSE

45461-MEN-000

$5.91

2

CLAMP B, FR. BRAKE HOSE

45462-MEN-000

$4.36

3

SPRING, FR. FORK (4.4N/MM,0.45KGF/MM) (SHOWA) | (Optional).

51401-KRN-A41

$91.59

3

SPRING, FR. FORK (4.8N/MM,0.49KGF/MM) (SHOWA) | (Optional).

51402-KRN-A71

$116.01

3

SPRING, FR. FORK (4.6N/MM,0.47KGF/MM) (SHOWA)

51403-KRN-A41

$99.10

4

TUBE (OUTER)

51410-KRN-A41

Unavailable

5

RING, BACK-UP

51412-KRN-A51

$4.90

6

BUSH, GUIDE

51414-KRN-A41

$6.26

7

BUSH, SLIDER

51415-KRN-A41

$8.76

8

PIPE, R. SLIDE

51420-KRN-A51

$413.25

9

DAMPER, FR.

51430-KRN-A71

$473.94

10

BUSH B, SLIDER

51431-KRN-A41

$4.03

11

BUSH, SLIDER

51436-KRN-A81

$13.01

12

COLLAR, REBOUND NEEDLE

51438-KRN-A41

$6.46

13

BOLT, CENTER

51440-KRN-A41

$28.16

14

RING, OIL SEAL STOPPER

51447-KRN-A41

$4.38

15

BOLT ASSY., FR. FORK

51450-KRN-A81

$231.26

16

NUT, LOCK

51451-MEN-A11

$8.78

17

RING, PISTON

51453-KRN-A51

$8.96

18

BOLT, PLUG

51456-KZ3-J41

$5.78

19

RING, WEAR

51476-MEY-003

$4.56

20

FORK SUB-ASSY., R. FR. (COO) (SHOWA)

51480-KRN-309

$1,350.58

21

SEAL SET, FR. FORK

51490-KRN-A41

$20.52

22

PIPE, L. SLIDE

51520-KRN-A71

$443.72

23

FORK SUB-ASSY., L. FR. (COO) (SHOWA)

51580-KRN-309

$1,350.58

24

PROTECTOR, R. FR. FORK *TNATURAL* (NATURAL)

51610-MEN-000ZA

$39.81

25

PROTECTOR, L. FR. FORK *TNATURAL* (NATURAL)

51620-MEN-000ZA

$43.43

26

BOLT, FLANGE (8X40)

90108-KZ4-J40

$1.94

27

BOLT, FLANGE (6MM)

90113-KZ3-000

$2.58

28

BOLT, PROTECTOR

90113-MAC-780

$3.28

29

DUST SEAL

91254-KRN-A41

$14.33

30

O-RING (31.6X1.8)

91256-KRN-A51

$2.13

31

O-RING (21X1.9)

91257-KZ3-003

$2.51

32

O-RING (39.7X2.4)

91258-MEE-D01

$1.93

33

O-RING (3.5X1.5)

91301-KZ3-711

$2.46

34

O-RING E (33.5X2) (NOT AVAILABLE)

91306-MC7-003

$2.32

35

O-RING (47.2X2.4)

91351-KRN-A41

$3.52
