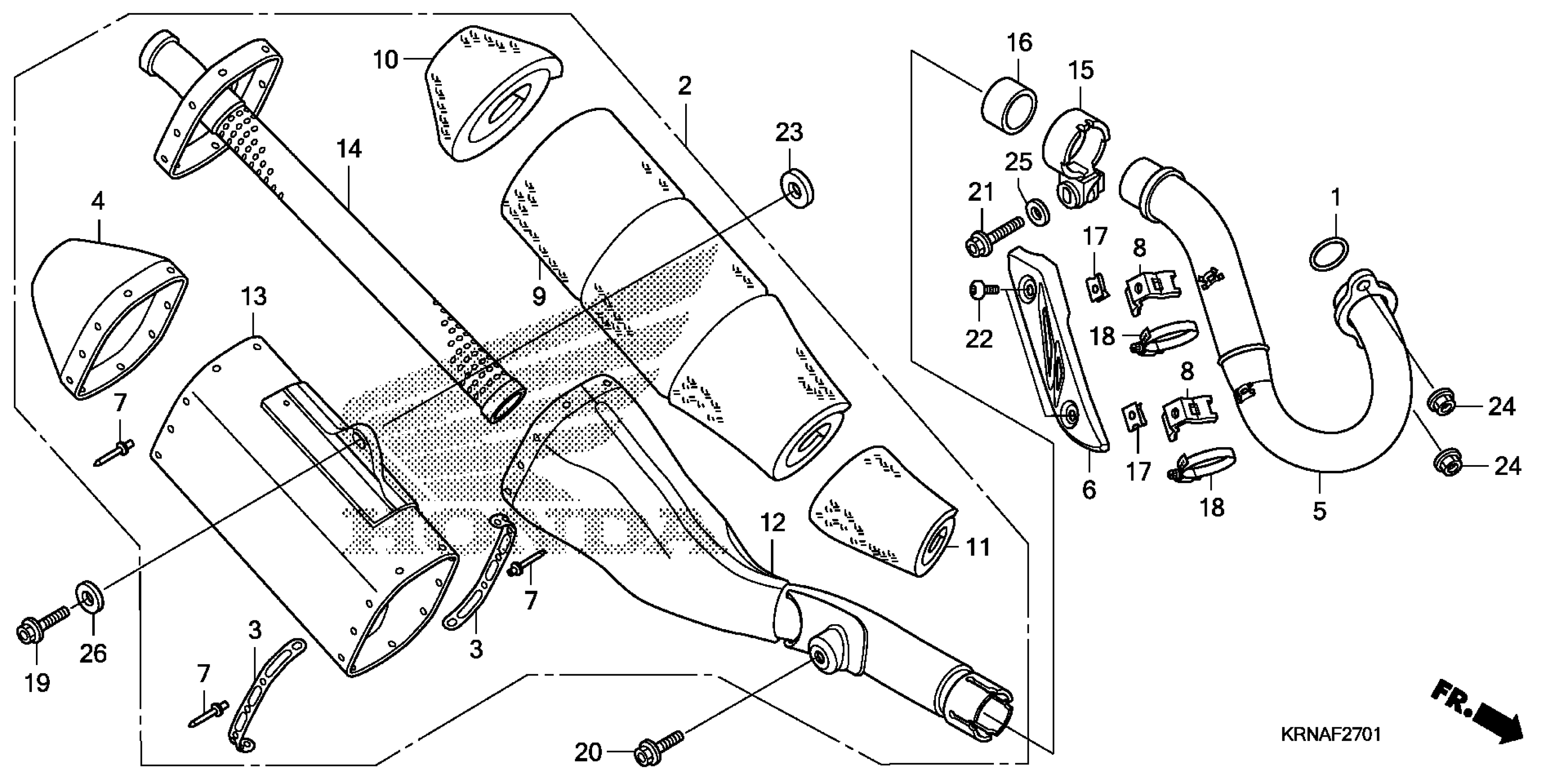

Honda CRF250RA (11) CRF250R, JPN, VIN# JH2ME103-BK700001 TO JH2ME103-BK799999 MUFFLER (2) Diagram

#

Description
Price

1

GASKET, EX. PIPE

18291-MM5-860

$4.81

2

MUFFLER (COO)

18310-KRN-317

$1,227.20

3

BAND, MUFFLER BODY

18317-KRN-A50

$9.39

4

COVER, END (COO)

18318-KRN-305

$165.93

5

PIPE, EX.

18320-KRN-A40

Unavailable

6

PROTECTOR, EX. PIPE

18323-KRN-A40

$59.46

7

RIVET, BLIND (4.8)

18324-MEB-670

$0.97

8

STAY, EX. PIPE PROTECTOR

18327-KRN-A40

$5.78

9

PACK, GLASS WOOL CENTER

18336-KRN-A50

$102.52

10

WOOL, TAIL GLASS

18339-MEN-A30

$21.58

11

PACK B, GLASS WOOL

18345-MEN-E10

$21.45

12

MUFFLER, FR.

18360-KRN-A50

$302.72

13

BODY, MUFFLER

18361-KRN-A50

Unavailable

14

SEPARATOR

18362-KRN-A51

$127.07

15

BAND, R. MUFFLER

18373-KE8-000

$25.72

15

BAND, R. MUFFLER This part replaces 18374-MG7-701.

18373-KE8-000

$25.72

16

GASKET, MUFFLER

18392-MK4-000

$12.26

17

NUT, SPRING (6MM)

19508-KA3-710

$5.34

18

CLAMP, R. RADIATOR HOSE

19509-MM5-003

$12.19

19

BOLT, FLANGE (8X24)

90101-KZ3-J50

$2.42

20

BOLT (8X18)

90123-MEN-730

$1.80

21

BOLT, FLANGE (8X35)

90124-KZ4-J40

$2.06

22

BOLT, SPECIAL (6MM)

90170-MEB-670

$1.64

23

WASHER, RR. MUFFLER

90514-MEN-730

$2.72

24

NUT, FLANGE (8MM) NUT, FLANGE (10MM)

94050-08000

$0.86

25

WASHER, PLAIN (8MM)

94102-08800

$0.86

26

WASHER, PLAIN (8MM)

94103-08000

$0.59
