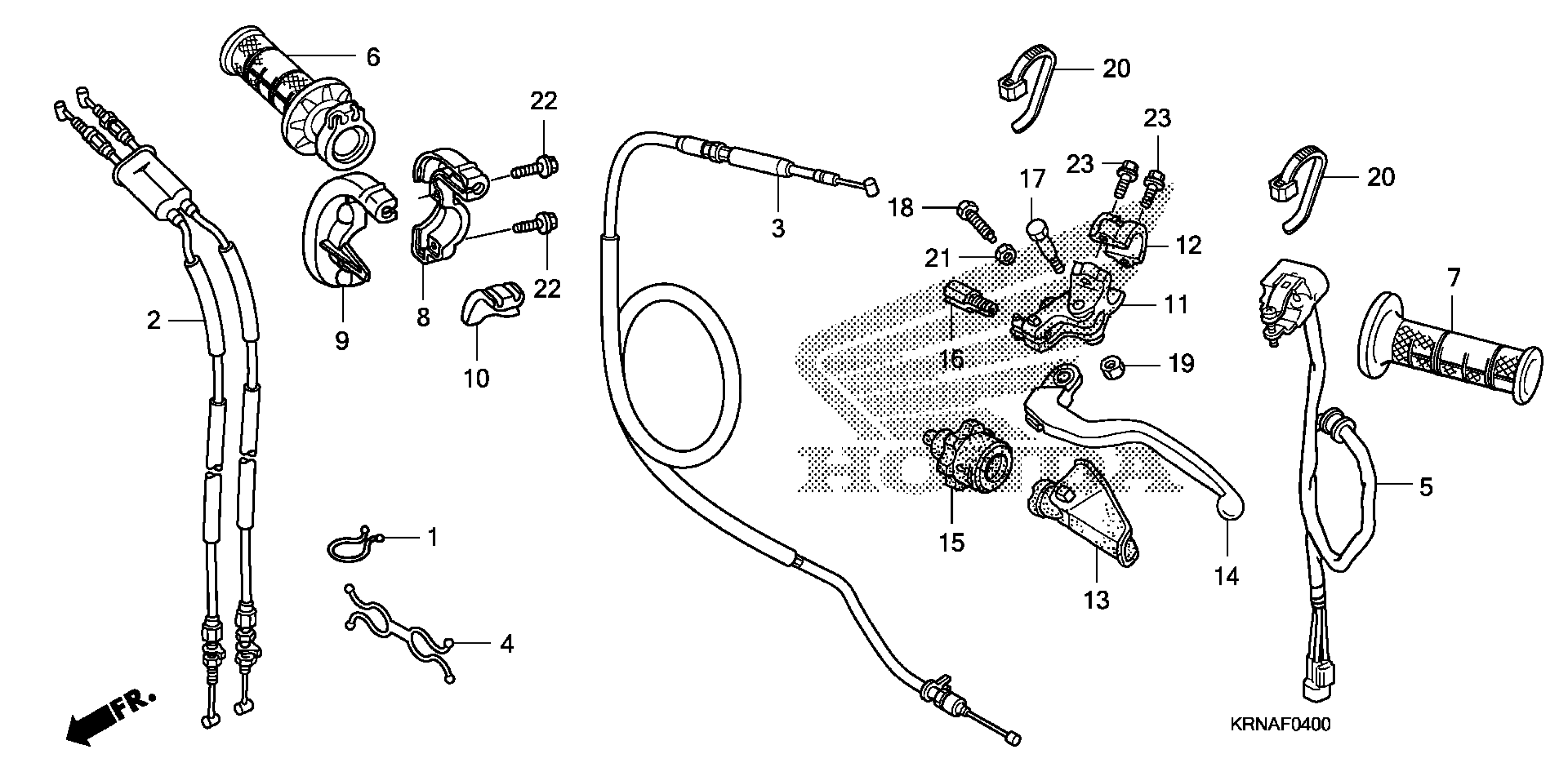

Honda CRF250RA (11) CRF250R, JPN, VIN# JH2ME103-BK700001 TO JH2ME103-BK799999 HANDLE LEVER@SWITCH@CABLE Diagram

HOLDER, TUBE

17233-KCZ-J20

$1.68

CABLE, THROTTLE

17910-KRN-A40

$39.75

CABLE, CLUTCH

22870-KRN-A40

$30.42

PURSE, LOCK (11.5MM)

32173-MEN-A30

$2.09

SWITCH ASSY., ENGINE STOP & INDICATOR

35130-MEN-A31

$78.59

GRIP, THROTTLE

53140-KRN-A30

$20.08

GRIP, L. HANDLE

53166-KRN-A30

$9.28

GRIP, L. HANDLE This part replaces 53166-MEN-305.

53166-KRN-A30

$9.28

HOUSING, THROTTLE (UPPER)

53167-MEB-672

$19.33

HOUSING, THROTTLE (LOWER)

53168-KRN-A90

$26.48

HOUSING, THROTTLE (LOWER) This part replaces 53168-MEB-671.

53168-KRN-A90

$26.48

SLIDER, THROTTLE CABLE

53169-MEB-670

$4.03

BRACKET, L. HANDLE LEVER

53172-KSK-670

$38.45

HOLDER, L. LEVER BRACKET

53174-KCE-670

$12.08

COVER, L. HANDLE LEVER

53177-KSK-670

$8.83

LEVER, L. HANDLEBAR

53178-MEN-A01

$22.10

LEVER, L. HANDLEBAR This part replaces 53178-MEN-305.

53178-MEN-A01

$22.10

DIAL, CLUTCH CABLE ADJUSTING

53179-MEN-671

$10.12

BOLT, WIRE ADJUSTING

53192-MEN-670

$7.37

BOLT, HANDLEBAR LEVER PIVOT

90113-429-770

$5.54

BOLT, LEVER ADJUSTING

90118-MEN-670

$3.62

NUT, U (6MM)

90301-782-000

$1.48

BAND, WIRE (Honda Code 2687788)

90650-KV6-003

$2.90

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.19

NUT, HEX. (6MM)

94001-06200-0S

$1.19

BOLT, FLANGE (6X20)

96001-06020-07

$1.23

BOLT, FLANGE (6X22)

96001-06022-00

$1.13
