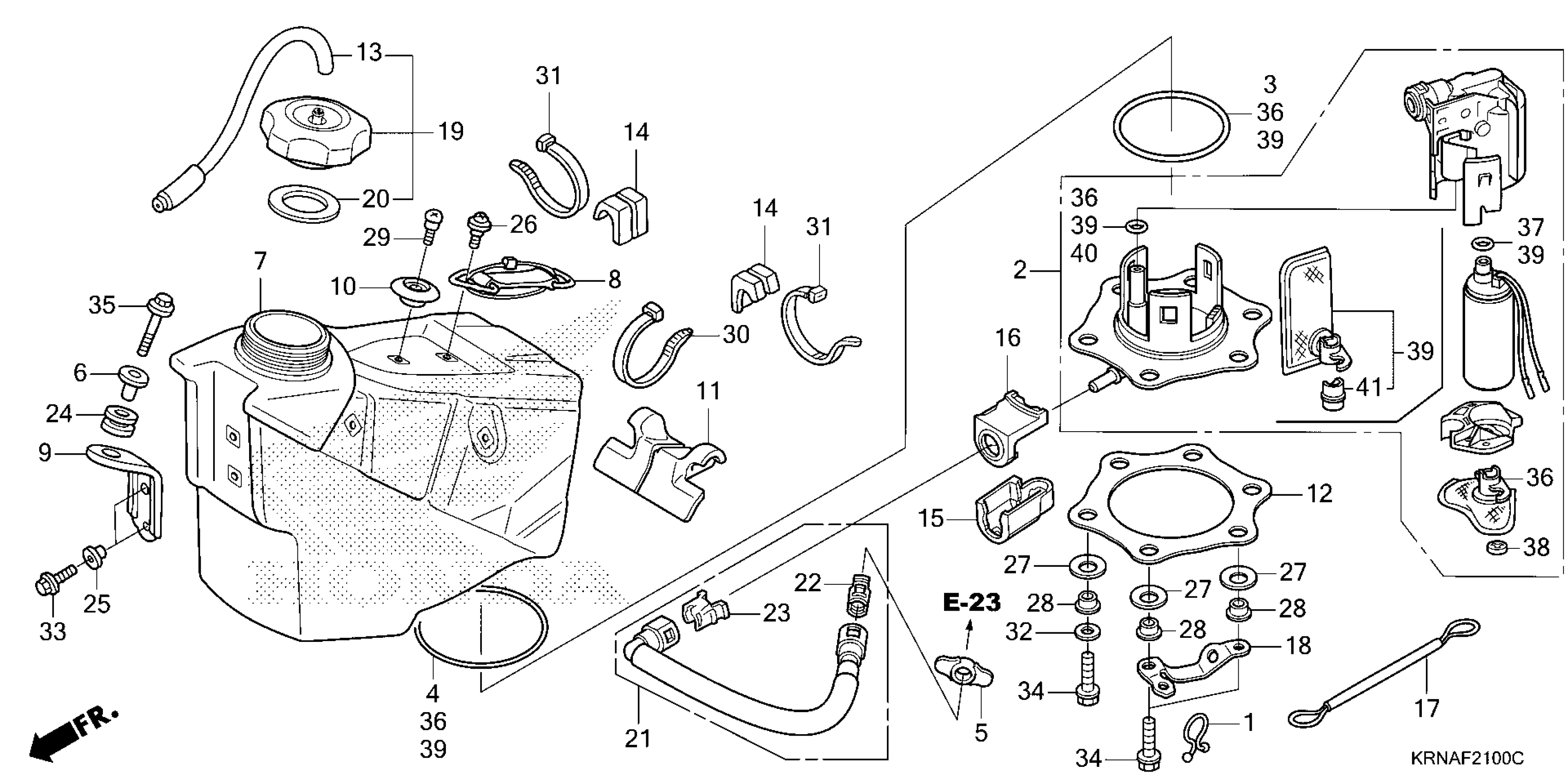

Honda CRF250RA (11) CRF250R, JPN, VIN# JH2ME103-BK700001 TO JH2ME103-BK799999 FUEL TANK Diagram

#

Description
Price

1

CLIP, BREATHER TUBE PROTECTOR

15712-PD1-811

$8.97

2

PUMP ASSY., FUEL (THIS PUMP REQ'S FUEL FILTER KIT 06160-MEN-A50 FOR SERVICE)

16700-MEN-A52

$327.11

2

PUMP ASSY., FUEL (THIS PUMP REQ'S FUEL FILTER KIT 06160-MEN-A50 FOR SERVICE) | Use up to Frame SN BK701422. This part replaces 16700-MEN-A51.

16700-MEN-A52

$327.11

3

O-RING (3.7X73.9)

16711-MEN-A30

$10.86

4

O-RING (2.4X88.4)

16712-MEN-A30

$9.95

5

RUBBER, FUEL JOINT

16719-HN8-A61

$2.12

6

COLLAR, TANK SETTING

17509-KZ3-B00

$8.10

7

TANK, FUEL

17510-MEN-A50

Unavailable

8

BAND, RR. TANK

17516-KZ3-B00

$14.64

9

STAY, FR. FUEL TANK

17516-MEN-A30

$7.10

10

COLLAR, FR. SEAT

17518-KZ4-710

$5.41

11

RUBBER, FUEL TANK MOUNTING

17518-MEN-A30

Unavailable

12

PLATE, FUEL PUMP

17519-MEN-A30

$16.84

13

TUBE, FUEL CAP BREATHER

17521-MEN-A30

$5.51

14

RUBBER, TANK SIDE MOUNTING

17522-MEN-730

$6.13

15

COVER, FUEL CONNECTOR

17575-MEN-A30

$6.39

16

RUBBER, FUEL CONNECTOR

17576-MEN-A30

$4.09

17

CABLE, FUEL TANK STOPPER

17577-MEN-A30

$7.03

18

GUIDE, STOPPER CABLE

17578-MEN-A30

$7.67

19

CAP ASSY., FUEL TANK

17620-MEN-A30

$83.00

20

GASKET, FUEL CAP This part replaces 17624-KT1-780.

17624-KT1-781

$4.48

21

HOSE ASSY., FUEL FEED

17630-KRN-A41

$80.42

22

RETAINER (GREEN) (TOKAI)

17711-S0X-A31

$3.08

23

RETAINER (BLUE GREEN) (TOKAI) (Honda Code 5928312)

17711-S0X-931

$3.08

24

RUBBER, MUFFLER

18334-ML3-680

$3.61

25

COLLAR

84706-415-000

$2.13

26

SCREW (5X12)

90105-MEN-730

$1.52

27

WASHER, CONICAL SPRING FUEL PUMP

90502-MEN-A30

$2.42

28

COLLAR, FUEL PUMP

90503-MEN-A31

$4.35

29

SCREW, SPECIAL (5MM)

91422-MT8-770

$2.64

30

TY-RAP, CABLE (240MM)

91560-MEN-A30

$1.80

31

TY-RAP, CABLE

91560-MS8-600

$2.16

32

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

32

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

32

WASHER, PLAIN (6MM) (USED ON TAILLIGHT)

94101-06800

Unavailable

33

BOLT, FLANGE (6X16)

96001-06016-00

$0.96

34

BOLT, FLANGE (6X20)

96001-06020-00

$1.13

35

BOLT, FLANGE (6X30)

96001-06030-00

$1.28

37

O-RING (8.6X1.9)

16702-KPC-D50

$0.51

39

FILTER KIT, FUEL

06160-MEN-A50

$79.17

40

O-RING (10X2.4)

16702-KTR-940

$4.92

41

RUBBER, STOPPER

16735-MEN-A51

$7.20
