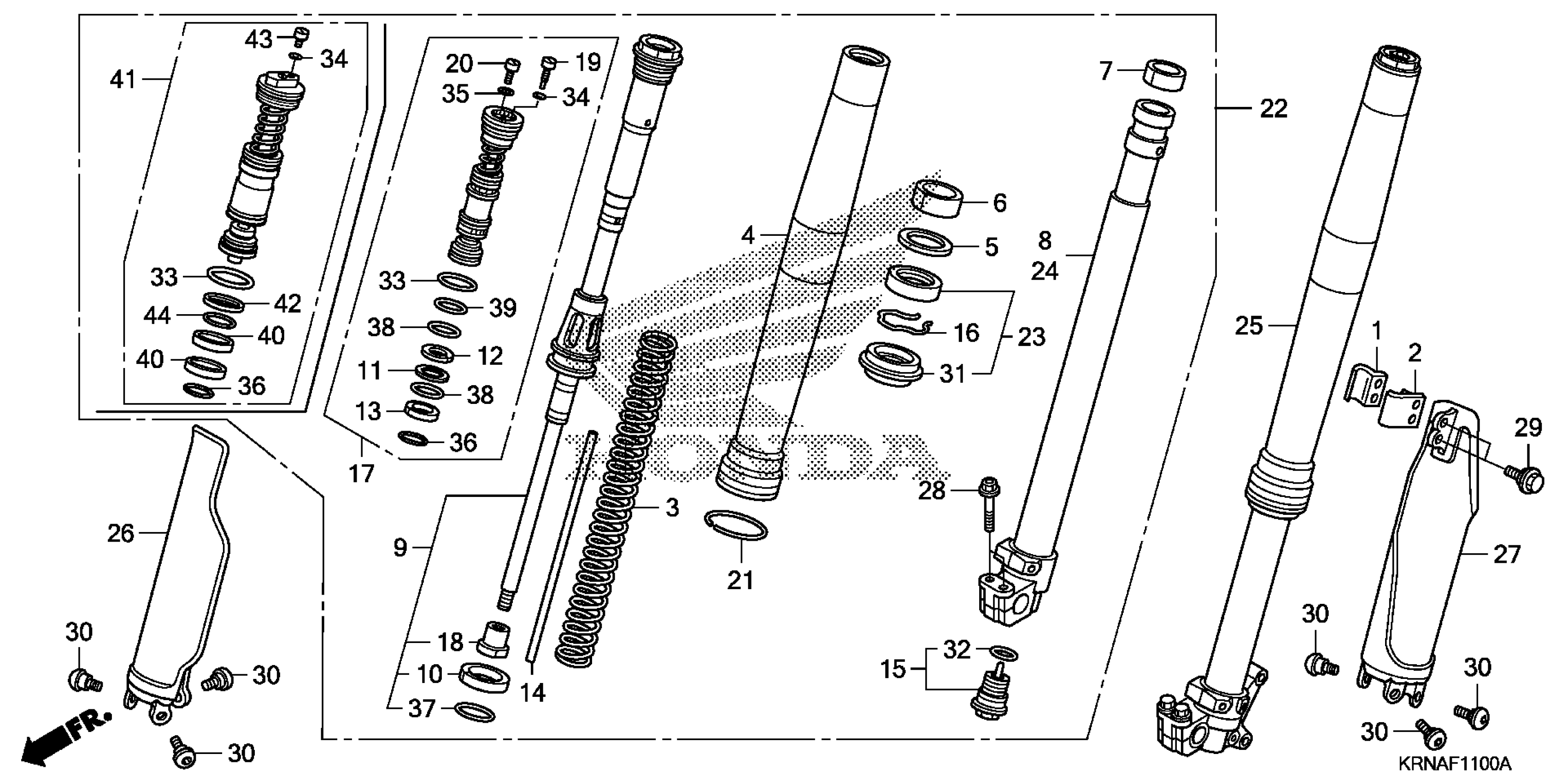

Honda CRF250RA (11) CRF250R, JPN, VIN# JH2ME103-BK700001 TO JH2ME103-BK799999 FRONT FORK Diagram

#

Description
Price

1

CLAMP A, FR. BRAKE HOSE

45461-MEN-000

$5.91

2

CLAMP B, FR. BRAKE HOSE

45462-MEN-000

$4.36

3

SPRING, FR. FORK (4.4N/MM,0.45KGF/MM) (SHOWA)

51401-KRN-A41

$91.59

3

SPRING, FR. FORK (4.2N/MM,0.43KGF/MM) (SHOWA) | (Optional).

51402-KRN-A41

$99.13

3

SPRING, FR. FORK (4.6N/MM,0.47KGF/MM) (SHOWA) | (Optional).

51403-KRN-A41

$99.10

4

TUBE (OUTER)

51410-KRN-A41

Unavailable

5

RING, BACK-UP

51412-KRN-A51

$4.90

6

BUSH, GUIDE

51414-KRN-A41

$6.26

7

BUSH, SLIDER

51415-KRN-A41

$8.76

8

PIPE, R. SLIDE

51420-KRN-A51

$413.25

9

DAMPER, FR.

51430-KRN-A51

Unavailable

10

BUSH B, SLIDER

51431-KRN-A41

$4.03

14

COLLAR, REBOUND NEEDLE

51438-KRN-A41

$6.46

15

BOLT, CENTER

51440-KRN-A41

$28.16

16

RING, OIL SEAL STOPPER

51447-KRN-A41

$4.38

18

NUT, LOCK

51451-MEN-A11

$8.78

21

RING, WEAR

51476-MEY-003

$4.56

22

FORK ASSY., R. FR. (COO) (SHOWA)

51480-KRN-306

$1,373.06

23

SEAL SET, FR. FORK

51490-KRN-A41

$20.52

24

PIPE, L. SLIDE

51520-KRN-A51

$413.32

25

FORK ASSY., L. FR. (COO) (SHOWA)

51580-KRN-306

$1,373.06

26

PROTECTOR, R. FR. FORK *TNATURAL* (NATURAL)

51610-MEN-000ZA

$39.81

27

PROTECTOR, L. FR. FORK *TNATURAL* (NATURAL)

51620-MEN-000ZA

$43.43

28

BOLT, FLANGE (8X40)

90108-KZ4-J40

$1.94

29

BOLT, FLANGE (6MM)

90113-KZ3-000

$2.58

30

BOLT, PROTECTOR

90113-MAC-780

$3.28

31

DUST SEAL

91254-KRN-A41

$14.33

32

O-RING (21X1.9)

91257-KZ3-003

$2.51

33

O-RING (39.7X2.4)

91258-MEE-D01

$1.93

34

O-RING (3.5X1.5)

91301-KZ3-711

$2.46

36

O-RING (31.5X2.0) This part replaces 91304-MA6-003.

91304-MCA-A02

$2.09

36

O-RING (31.5X2.0) This part replaces 91304-MCA-A00.

91304-MCA-A02

$2.09

36

O-RING (31.5X2.0)

91304-MCA-A02

$2.09

37

O-RING (47.2X2.4)

91351-KRN-A41

$3.52

40

BUSH, SLIDER

51436-KRN-A51

Unavailable

41

BOLT ASSY., FR. FORK

51450-KRN-A51

Unavailable

42

RING, PISTON

51453-KRN-A51

$8.96

43

BOLT, PLUG

51456-KZ3-J41

$5.78

44

O-RING (31.6X1.8)

91256-KRN-A51

$2.13
