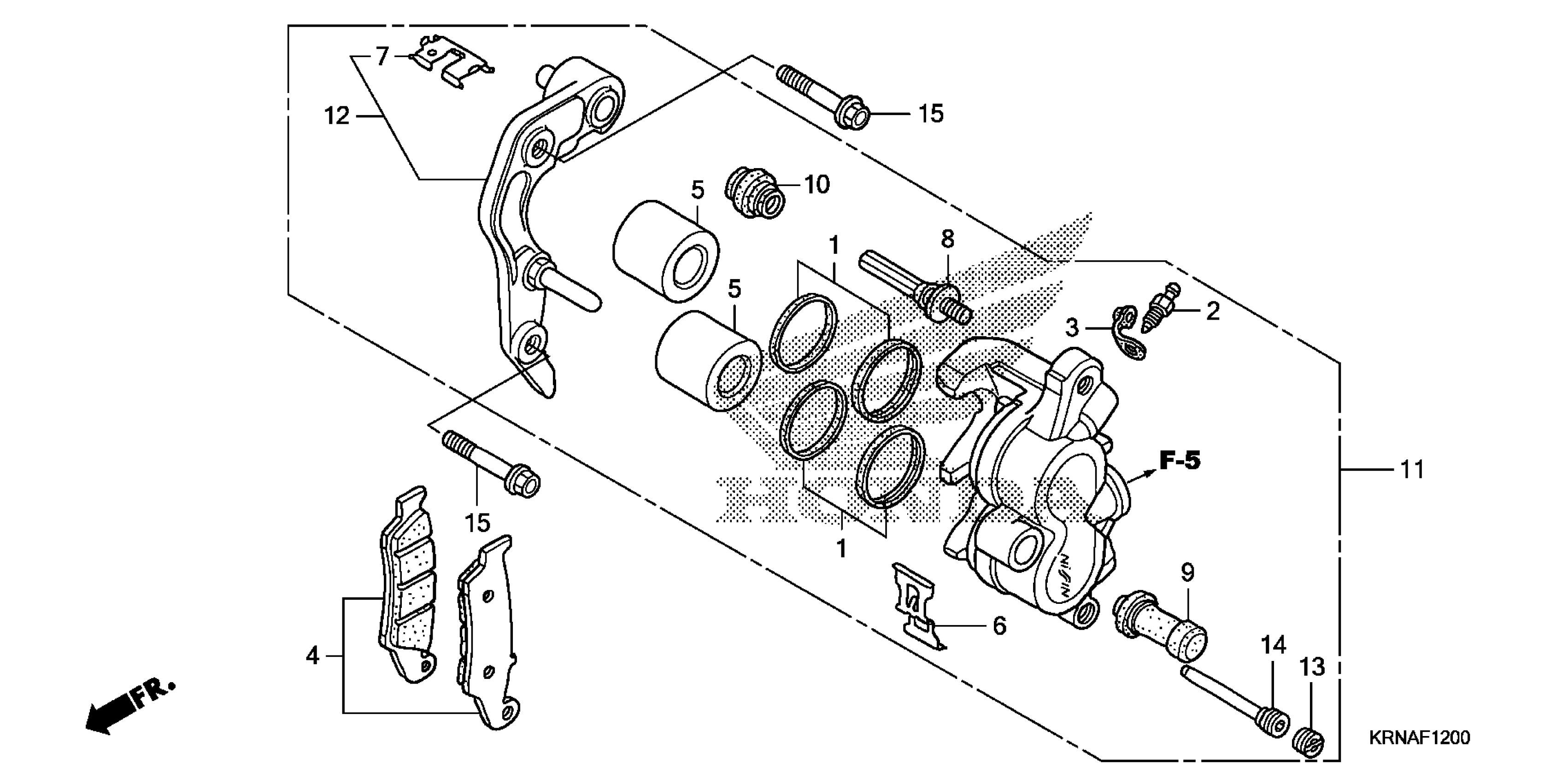

Honda CRF250RA (11) CRF250R, JPN, VIN# JH2ME103-BK700001 TO JH2ME103-BK799999 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

SEAL SET, PISTON (RIGHT SIDE, QTY-1)

06431-MA3-405

$7.33

2

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

3

CAP, BLEEDER

43353-461-771

$5.05

4

PAD SET, FR.

45105-MY6-415

$47.06

5

PISTON (27X27)

43107-MBG-006

$33.79

6

SPRING, PAD

45108-MY1-006

$10.74

7

RETAINER

45112-KS6-701

$6.08

8

BOLT A, BOLT

45131-HA5-672

$15.44

9

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.46

10

BOOT B

45133-MA3-006

$5.46

11

CALIPER SUB-ASSY., L. FR. BRAKE (NISSIN)

45150-MEN-A51

$270.51

12

BRACKET SUB-ASSY., L. FR. CALIPER

45190-MEN-006

$129.90

13

PLUG, PIN

45203-MG3-016

$5.12

14

PIN, HANGER

45215-HA5-672

$10.63

15

BOLT, FLANGE (8X40)

90110-KZ4-J40

$2.92
