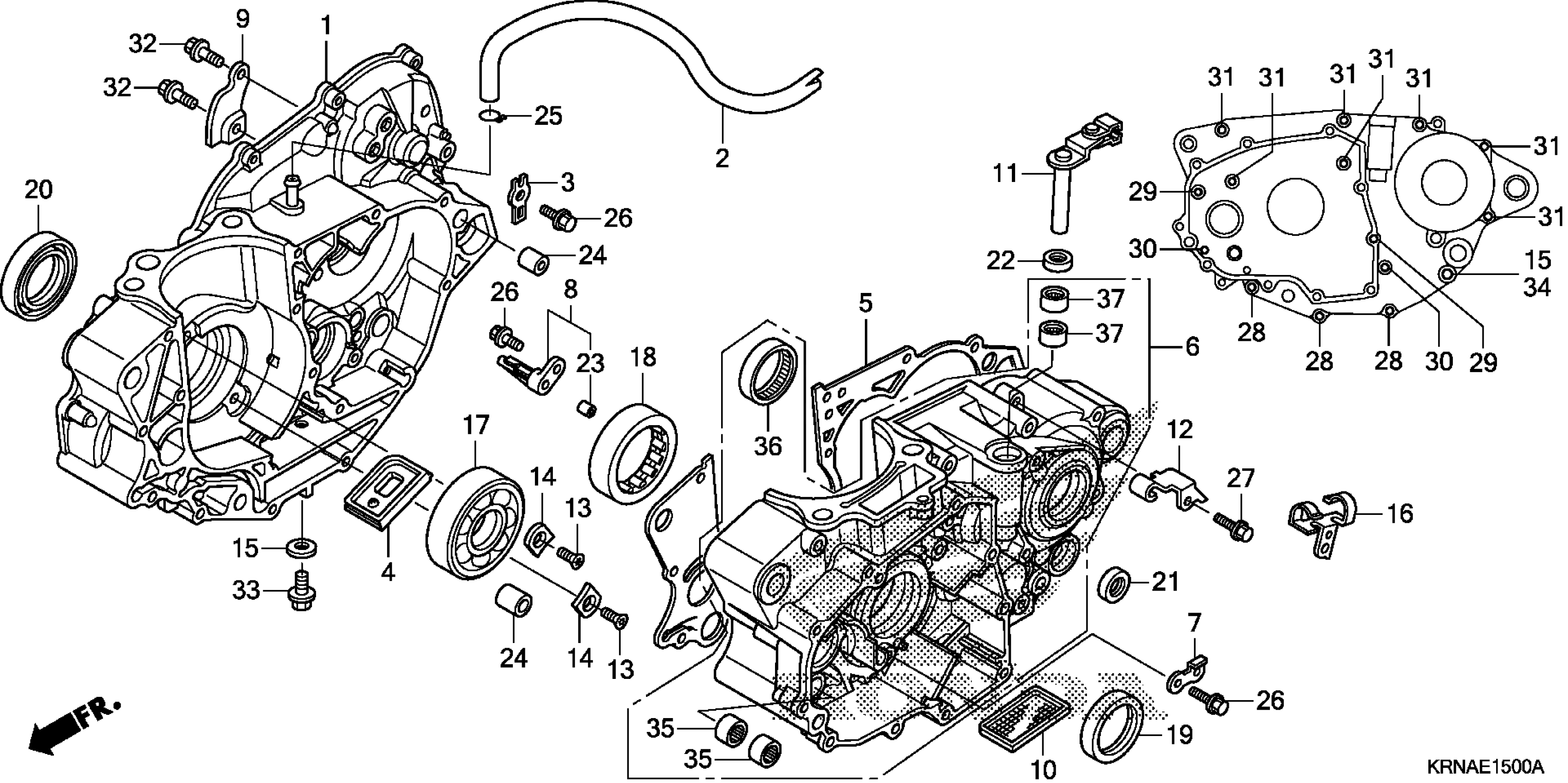

Honda CRF250RA (11) CRF250R, JPN, VIN# JH2ME103-BK700001 TO JH2ME103-BK799999 CRANKCASE Diagram

CRANKCASE ASSY,RI This part replaces 11100-KRN-A40.

11110-KRN-305

$387.25

CRANKCASE ASSY,RI

11110-KRN-305

$387.25

TUBE, BREATHER

11105-KRN-670

$9.82

PLATE, TUBE GUIDE

11106-MEN-A30

$1.77

VALVE, REED

11110-MEN-A31

$24.27

GASKET, CRANKCASE This part replaces 11191-KRN-A40.

11191-KRN-A41

$19.39

CRANKCASE, L.

11200-KRN-A40

$422.44

PLATE, CAM CHAIN GUIDE

11206-KRN-A40

$5.85

JET, PISTON (#70)

11210-KRN-A40

$40.78

PLATE, OIL GUIDE

15201-KRN-A40

$7.43

SCREEN, OIL FILTER

15421-MEN-A31

$10.20

LEVER, CLUTCH LIFTER

22810-KRN-A40

Unavailable

RECEIVER, CLUTCH CABLE

22838-KRN-A40

$5.93

SCREW, SPECIAL FLAT (6X17)

90001-MEN-850

$1.80

PLATE, BEARING HOLDER

90441-MEN-A30

$3.60

WASHER, SEALING (8MM)

90474-333-000

$3.30

GUIDE, TUBE

90610-MEN-A30

$6.48

BEARING, RADIAL BALL (30X72X16)

91001-KRN-671

$22.89

BEARING, SPECIAL ROLLER

91002-KRN-A11

$48.13

OIL SEAL (38X52X7) (ARAI)

91201-MEB-671

$13.13

OIL SEAL (39X56X7.5) (ARAI)

91202-MEY-671

$14.53

OIL SEAL (14X22X5) (NOK)

91203-KA4-771

$3.81

OIL SEAL (12X18X3) (ARAI)

91205-MEB-671

$3.45

PIN A, DOWEL (8X10)

94301-08100

$2.25

PIN A, DOWEL (14X20)

94301-14200

$2.28

CLIP, TUBE (B10)

95002-02100

$1.90

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

BOLT, FLANGE (6X45)

96001-06045-00

$1.95

BOLT, FLANGE (6X50) BOLT, FLANGE (6X55)

96001-06050-00

$2.16

BOLT, FLANGE (6X55)

96001-06055-00

$1.62

BOLT, FLANGE (6X70)

96001-06070-00

$1.95

BOLT, FLANGE (6X12)

96300-06012-00

$1.49

BOLT, FLANGE (8X20) BOLT, FLANGE (8X12)

96300-08020-00

$1.57

BOLT, FLANGE (8X70)

96300-08070-00

$2.05

BEARING, NEEDLE (9MM) (NTN)

91006-HA0-003

$13.32

BEARING, SHELL (33X38X8) (TOYO)

91022-KA4-740

$17.87

BEARING, NEEDLE (12X16X10) This part replaces 91053-719-005.

91101-PZ9-000

$8.68

BEARING, NEEDLE (12X16X10)

91101-PZ9-000

$8.68
