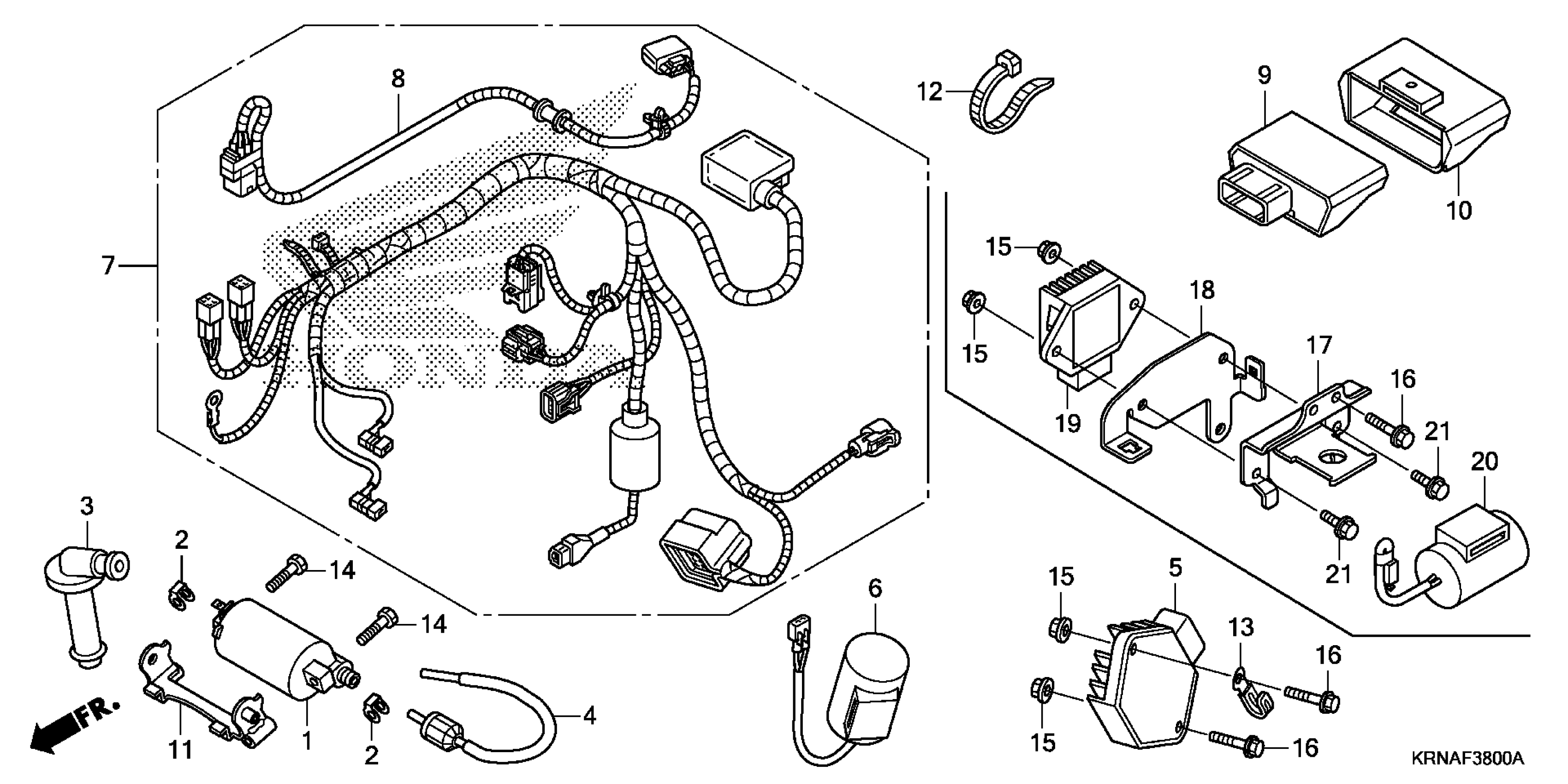

Honda CRF250RA (10) CRF250R, JPN, VIN# JH2ME103-AK600001 TO JH2ME103-AK699999 WIRE HARNESS Diagram

COIL, IGNITION

30500-ML7-013

$88.14

SPACER, IGNITION COIL

30520-ML7-000

$3.77

CAP ASSY., NOISE SUPPRESSOR

30700-KRN-A41

$47.22

WIRE ASSY., IGNITION

30731-MEN-A30

$18.15

RECTIFIER, REGULATOR

31600-MEN-A31

$237.98

CONDENSER UNIT

31700-MEN-A41

$249.25

WIRE HARNESS

32100-KRN-A40

$298.46

SUB-HARNESS, FUEL PUMP

32101-MEN-A40

$19.31

PGM-FI UNIT

38770-KRN-A42

$696.62

SUSPENSION, UNIT (PGM-F1)

38771-MEN-A30

Unavailable

STAY, IGNITION COIL

50131-KRN-A40

Unavailable

BAND, WIRE HARNESS

90620-SB2-003

$24.63

CLIP (2X70)

91410-KCR-000

$3.16

BOLT, HEX. (6X20)

92101-06020-4J

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49

BOLT, FLANGE (6X20)

96001-06020-00

$1.49
