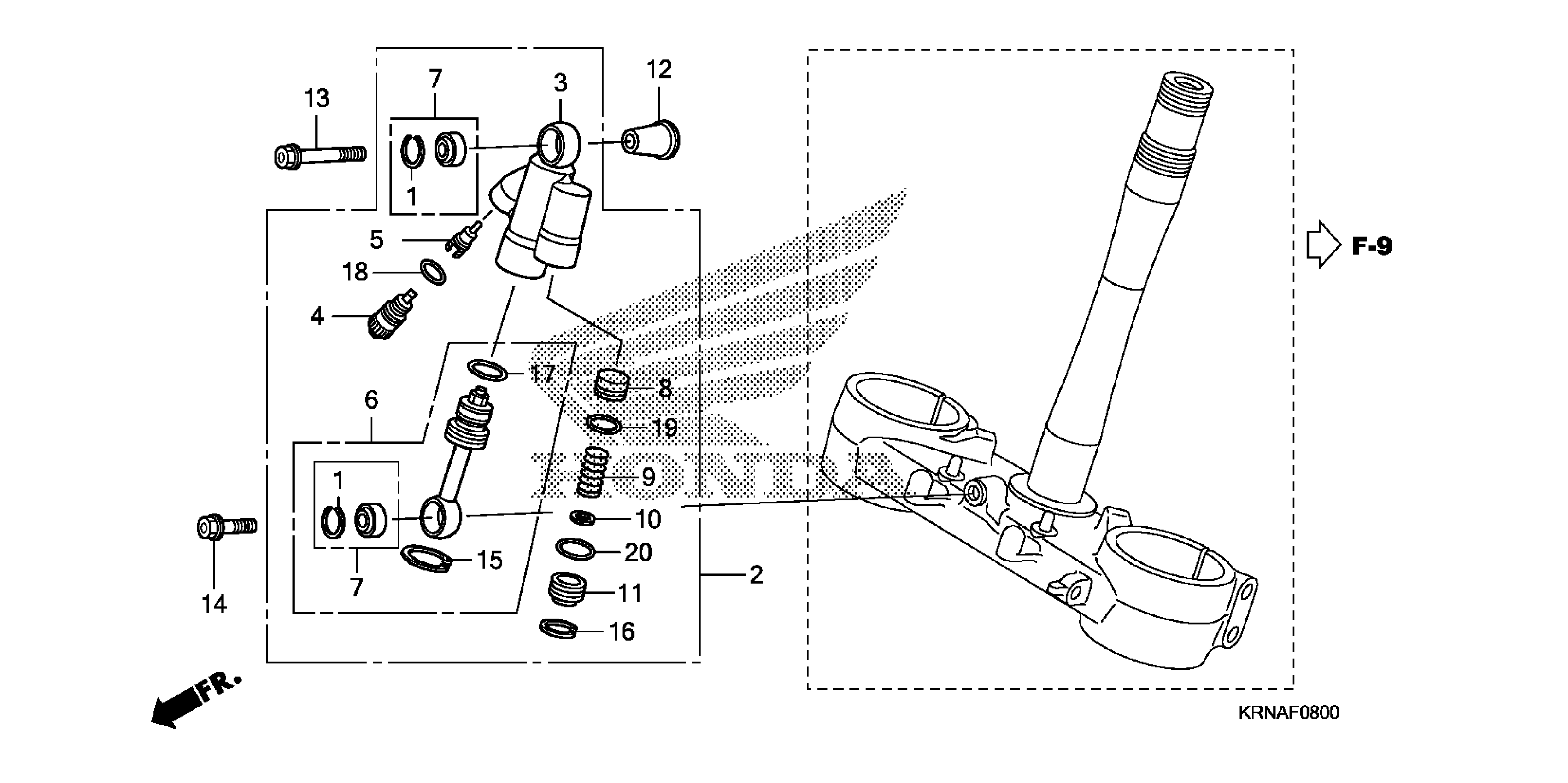

Honda CRF250RA (10) CRF250R, JPN, VIN# JH2ME103-AK600001 TO JH2ME103-AK699999 STEERING DAMPER Diagram

#

Description
Price

1

RING, STOPPER

52487-MEN-A11

$9.79

2

DAMPER ASSY., STEERING

53700-KRN-A41

$374.25

3

CASE, DAMPER

53701-KRN-A31

$121.87

4

BOLT, PLUG

53711-MEN-A11

$30.37

5

PIECE, ADJUST

53712-MEN-A11

$9.03

6

ROD, PISTON

53721-KRN-A31

Unavailable

7

BEARING

53731-MEN-A11

$81.49

8

PISTON, FREE

53754-MEN-A11

$9.24

9

SPRING, RETURN

53755-MEN-A11

$5.93

10

WASHER

53756-MEN-A11

Unavailable

11

CAP, END

53757-MEN-A11

$8.21

12

COLLAR, STEERING DAMPER

53782-MEN-A10

$6.09

13

BOLT (7X51.5)

90124-MEN-A10

$5.07

14

BOLT (7X25)

90125-MEN-A10

$3.84

15

CIRCLIP (23.5)

90651-MEN-A11

$3.51

16

CIRCLIP (17.3)

90652-MEN-A11

$3.37

17

O-RING (18.8X1.9)

91258-KZ3-B01

$2.51

18

O-RING (9.5X1.5)

91351-MEN-A11

$1.91

19

O-RING (11X1.9)

91352-MEN-A11

$1.76

20

O-RING (13.5X1.5)

91353-MEN-A11

$1.91
