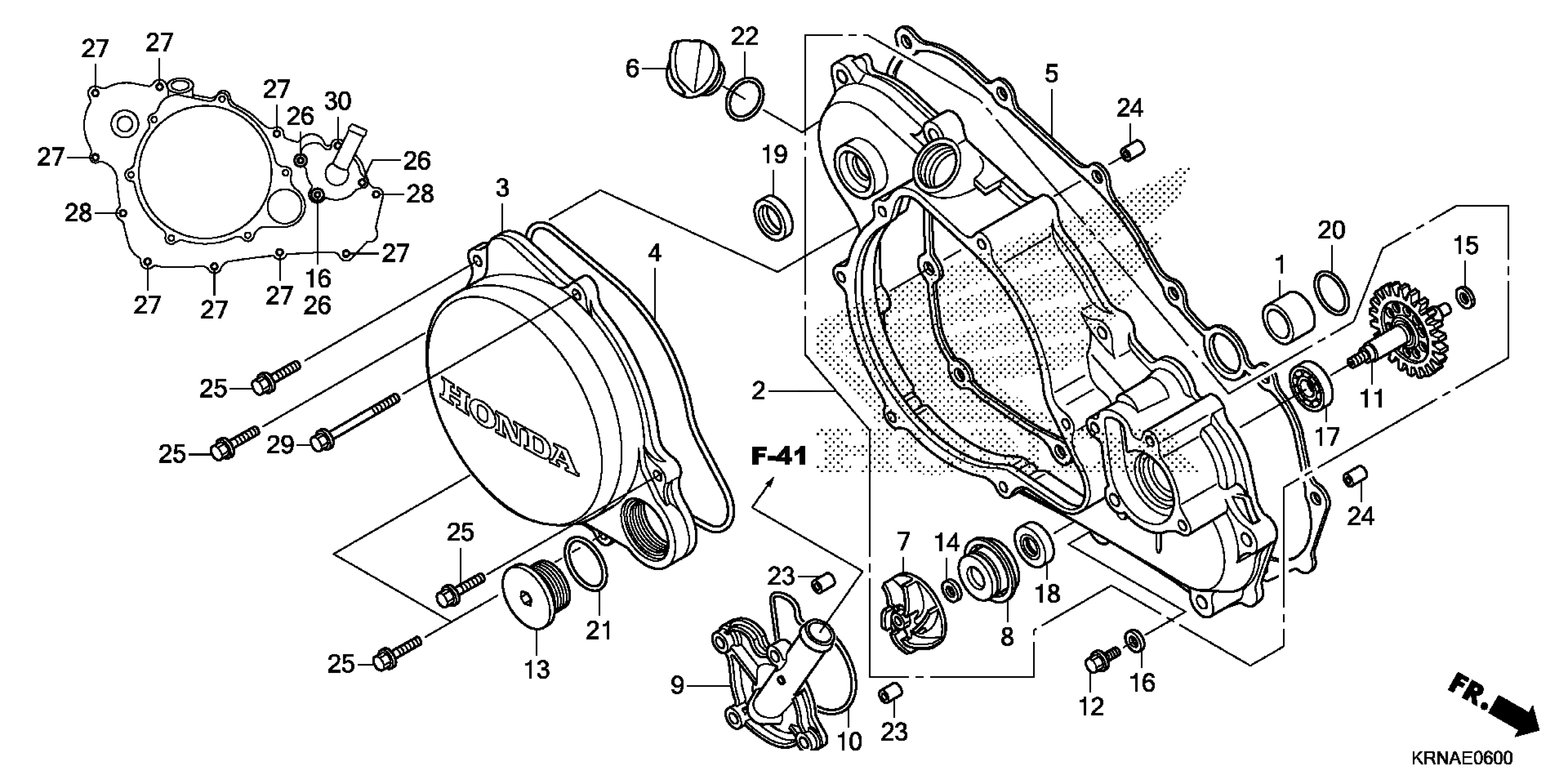

Honda CRF250RA (10) CRF250R, JPN, VIN# JH2ME103-AK600001 TO JH2ME103-AK699999 RIGHT CRANKCASE COVER @WATER PUMP Diagram

#

Description
Price

1

COLLAR, WATER PASS (16MM)

11102-KRN-670

$2.95

2

COVER ASSY., R. CRANKCASE

11330-KRN-A40

$349.56

3

COVER, CLUTCH

11351-KRN-A40

$130.08

4

GASKET, CLUTCH COVER

11352-KRN-A41

$10.87

5

GASKET, R. COVER This part replaces 11394-KRN-A40.

11394-KRN-A41

$23.94

6

CAP, OIL FILLER

15611-KA4-710

$14.40

7

IMPELLER, WATER PUMP

19215-KRN-A00

$49.60

8

SEAL, MECHANICAL

19217-KRN-A40

$45.74

9

COVER, WATER PUMP

19221-KRN-A40

$87.38

10

GASKET, WATER PUMP

19226-KRN-A40

$6.05

11

GEAR, WATER PUMP (22T)

19240-KRN-A40

$99.90

12

BOLT, FLANGE (6X10) (NSHF)

90004-GHB-600

$3.10

13

CAP (30MM)

90087-HB5-000

$16.69

14

WASHER, SEALING (7MM)

90447-KE1-000

$2.66

15

WASHER, SPECIAL (7MM)

90447-KRN-A40

$1.89

16

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.92

17

BEARING, BALL (12X24X6)

91002-MEN-A31

$8.83

18

OIL SEAL (12X22X5) This part replaces 91201-148-003.

91201-965-000

$4.06

18

OIL SEAL (12X22X5)

91201-965-000

$4.06

19

OIL SEAL (16.5X25X5) (NOK)

91205-KA3-712

$6.16

20

O-RING (16MM) This part replaces 91304-MJ0-003.

91303-800-000

$2.23

21

O-RING (27X2) (ARAI)

91305-KF0-003

$2.92

22

O-RING (18X3)

91307-035-000

$2.92

23

PIN A, DOWEL (8X10)

94301-08100

$2.25

24

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.25

25

BOLT, FLANGE (6X20)

96001-06020-00

$1.49

26

BOLT, FLANGE (6X25)

96001-06025-00

$2.00

27

BOLT, FLANGE (6X28)

96001-06028-00

$2.06

28

BOLT, FLANGE (6X35) (Honda Code 2112209)

96001-06035-00

$1.49

29

BOLT, FLANGE (6X60)

96001-06060-00

$2.06

30

BOLT, FLANGE (6X65)

96001-06065-00

$2.34
