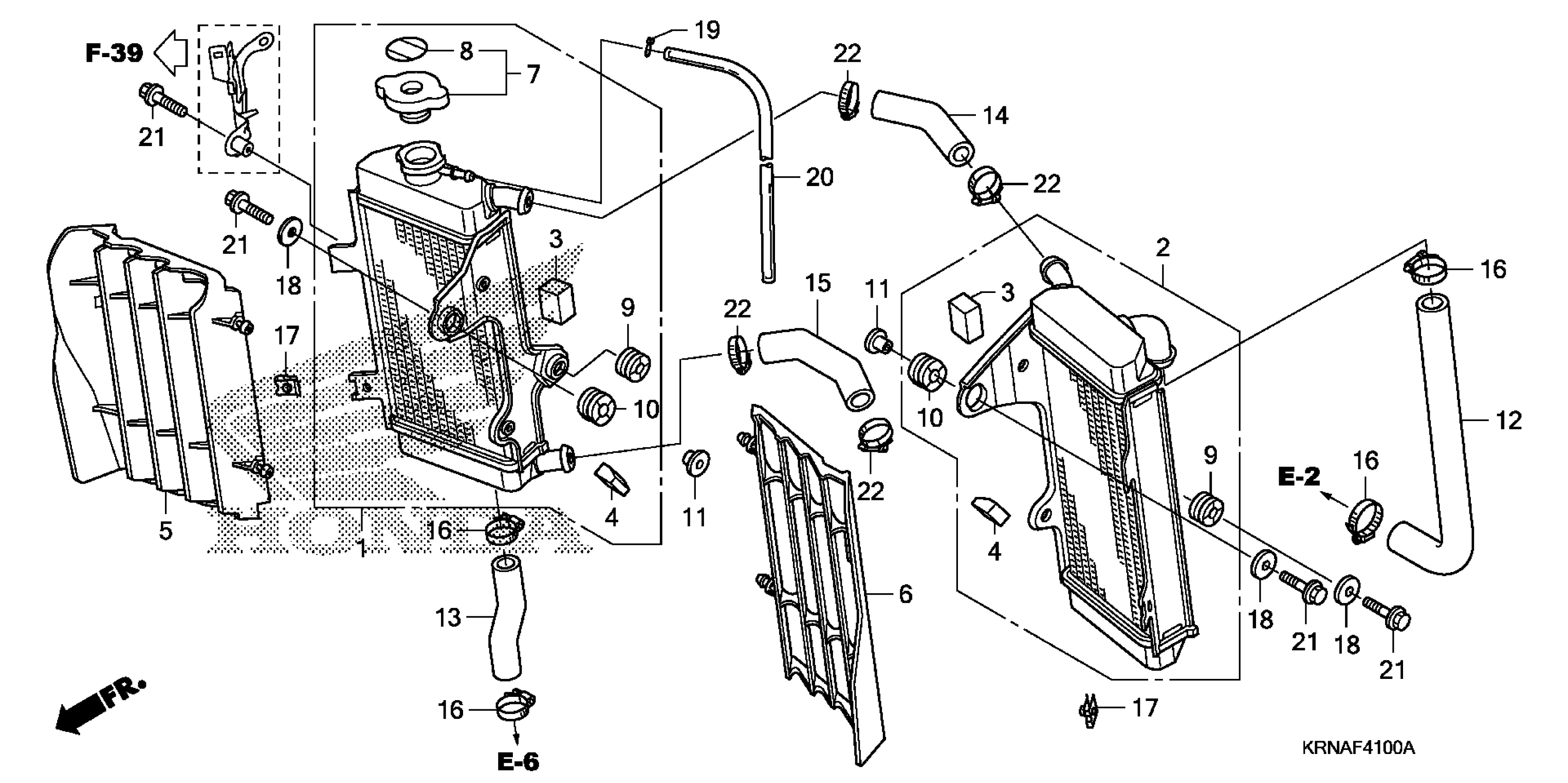

Honda CRF250RA (10) CRF250R, JPN, VIN# JH2ME103-AK600001 TO JH2ME103-AK699999 RADIATOR Diagram

#

Description
Price

1

RADIATOR ASSY., R. This part replaces 19010-KRN-305.

19100-KRN-A40

Unavailable

1

RADIATOR ASSY., R.

19100-KRN-A40

Unavailable

2

RADIATOR ASSY., L. This part replaces 19015-KRN-305.

19150-KRN-A40

Unavailable

2

RADIATOR ASSY., L.

19150-KRN-A40

Unavailable

3

RUBBER, RADIATOR (UPPER)

19021-KRN-A40

Unavailable

4

RUBBER, RADIATOR (LOWER)

19022-KRN-A40

$3.01

5

GRILLE, R. RADIATOR

19033-KRN-A40

$34.88

6

GRILLE, L. RADIATOR

19034-KRN-A40

$34.88

7

CAP, RADIATOR

19037-GEE-710

$27.80

8

LABEL, RADIATOR CAP

19046-PAA-A00

$3.25

9

RUBBER, RADIATOR MOUNTING

19051-KRN-000

$2.47

10

RUBBER, RADIATOR MOUNTING

19051-MEN-A30

$2.87

11

COLLAR, RADIATOR MOUNTING

19052-MAC-680

$4.90

12

HOSE A, WATER

19061-KRN-A40

Unavailable

13

HOSE B, WATER

19062-KRN-A40

Unavailable

14

HOSE C, WATER

19063-KRN-A40

$6.82

15

HOSE D, WATER

19064-KRN-A40

$7.84

16

CLAMP B, WATER HOSE

19506-KS6-700

$7.16

17

NUT, CLIP (6MM)

90201-KPR-901

$1.72

18

WASHER, RADIATOR MOUNTING

90403-KA3-830

$2.18

19

CLIP, TUBE (B8) CLIP, TUBE (B7)

95002-02080

$1.62

20

BULK HOSE, VINYL (6X9X1000) (6X9X600) (BULK HOSE 95003-14003-10M)

95003-14001-10M

$3.15

21

BOLT, FLANGE (6X28)

96001-06028-00

$2.59

22

CLAMP, WATER HOSE (25MM)

19504-KY1-003

$9.48
