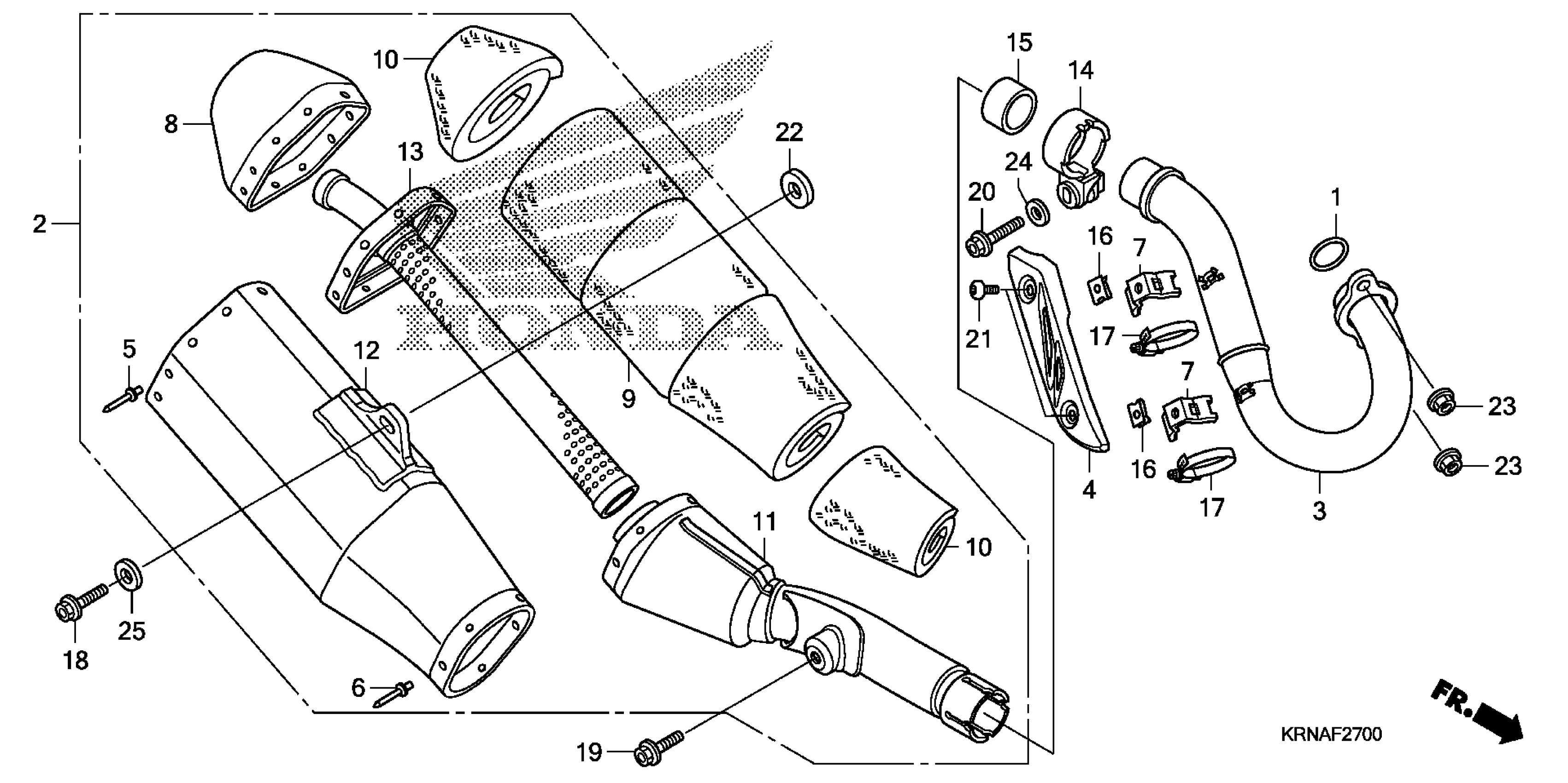

Honda CRF250RA (10) CRF250R, JPN, VIN# JH2ME103-AK600001 TO JH2ME103-AK699999 MUFFLER (1) Diagram

#

Description
Price

1

GASKET, EX. PIPE

18291-MM5-860

$4.93

2

MUFFLER (COO)

18310-KRN-306

$1,175.34

3

PIPE, EX.

18320-KRN-A40

Unavailable

4

PROTECTOR, EX. PIPE

18323-KRN-A40

$60.34

5

RIVET, BLIND (4.8)

18324-MEB-670

$0.99

6

RIVET, BLIND (3.2)

18326-KRN-A00

$1.15

7

STAY, EX. PIPE PROTECTOR

18327-KRN-A40

$5.87

8

COVER, END (COO)

18332-KRN-305

$157.47

9

PACK A, GLASS WOOL

18336-KRN-A40

$119.96

10

WOOL, TAIL GLASS

18339-MEN-A30

$21.90

11

MUFFLER, FR.

18360-KRN-A40

$224.63

12

BODY, MUFFLER

18361-KRN-A40

$697.25

13

SEPARATOR

18362-KRN-A40

Unavailable

14

BAND, R. MUFFLER

18373-KE8-000

$26.30

14

BAND, R. MUFFLER This part replaces 18374-MG7-701.

18373-KE8-000

$26.30

15

GASKET, MUFFLER

18392-MK4-000

$12.54

16

NUT, SPRING (6MM)

19508-KA3-710

$5.47

17

CLAMP, R. RADIATOR HOSE

19509-MM5-003

$12.46

18

BOLT, FLANGE (8X24)

90101-KZ3-J50

$2.46

19

BOLT (8X18)

90123-MEN-730

$1.82

20

BOLT, FLANGE (8X35)

90124-KZ4-J40

$2.09

21

BOLT, SPECIAL (6MM)

90170-MEB-670

$1.66

22

WASHER, RR. MUFFLER

90514-MEN-730

$2.76

23

NUT, FLANGE (8MM) NUT, FLANGE (10MM)

94050-08000

$0.87

24

WASHER, PLAIN (8MM)

94102-08800

$0.87

25

WASHER, PLAIN (8MM)

94103-08000

$0.60
