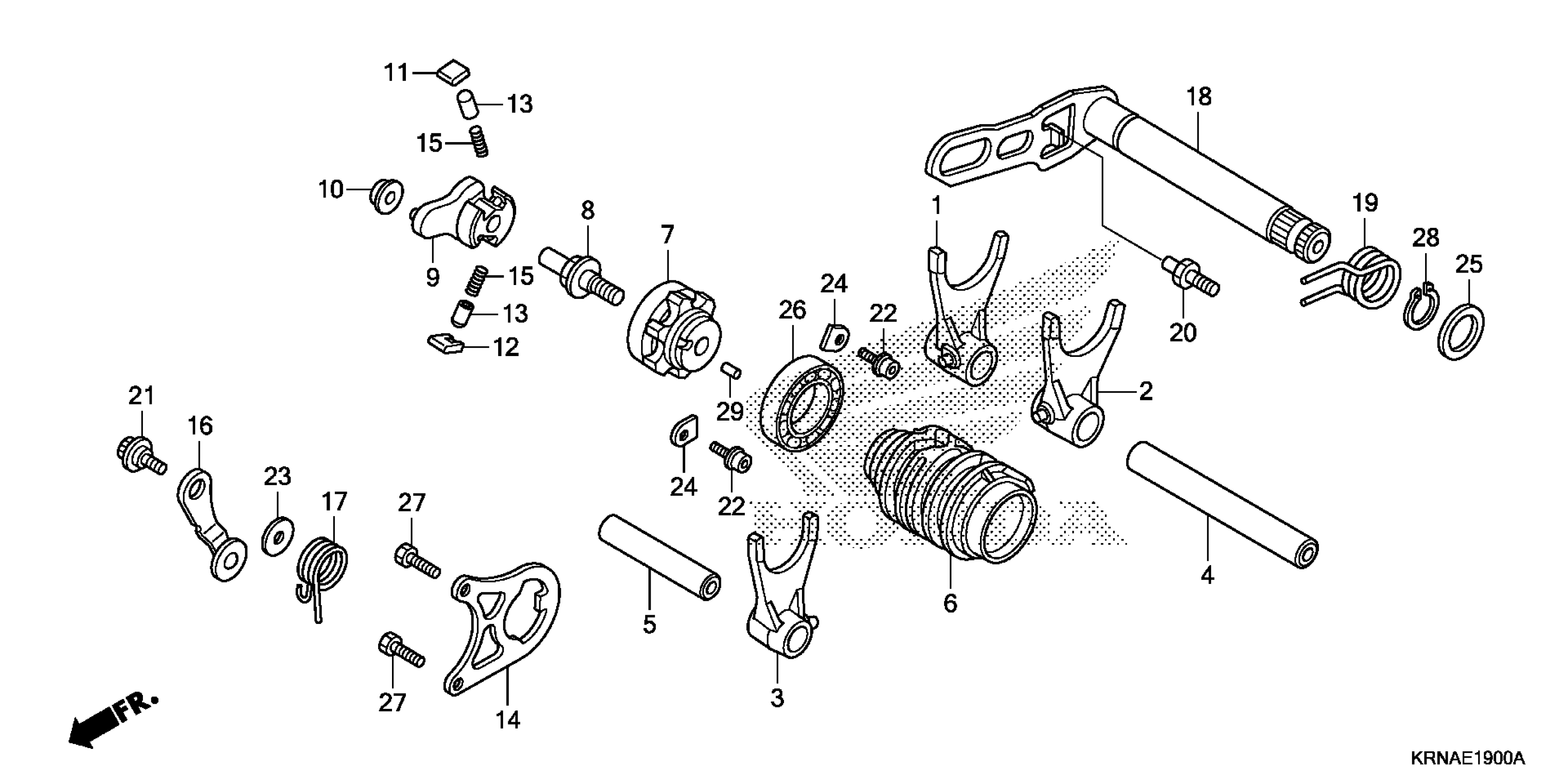

Honda CRF250RA (10) CRF250R, JPN, VIN# JH2ME103-AK600001 TO JH2ME103-AK699999 GEARSHIFT DRUM Diagram

#

Description
Price

1

FORK, R. GEARSHIFT

24211-KRN-A40

$58.10

2

FORK, L. GEARSHIFT

24221-KRN-A40

$58.10

3

FORK, CENTER GEARSHIFT

24231-KRN-A40

$61.30

4

SHAFT A, SHIFT FORK

24241-KSC-670

$29.05

5

SHAFT B, SHIFT FORK

24242-KRN-A40

$14.31

6

DRUM, GEARSHIFT

24311-KRN-A40

$69.84

7

CENTER, GEARSHIFT DRUM

24312-KRN-A30

$44.07

8

PIN, SHIFTER

24315-HA0-000

$12.60

9

SHIFTER, DRUM

24321-MEB-670

$36.57

10

COLLAR, SHIFTER

24322-MM4-000

$5.12

11

PAWL A, RATCHET

24324-KA3-711

$13.21

12

PAWL B, RATCHET

24325-KA3-711

$13.21

13

PLUNGER, PAWL

24326-KBH-901

$5.81

14

PLATE, GUIDE

24328-KRN-A40

$13.57

15

SPRING, PAWL PLUNGER

24329-KA3-740

$2.92

16

STOPPER, GEARSHIFT DRUM

24430-KRN-A30

$19.39

17

SPRING, DRUM STOPPER

24435-KSE-670

$2.84

18

SPINDLE, GEARSHIFT

24610-KRN-A41

$71.84

19

SPG, SHIFT RETURN This part replaces 24651-MEB-670.

24651-MEB-671

$4.11

20

PIN, GEARSHIFT RETURN SPRING

24652-KRN-A40

$4.59

21

PIVOT, SHIFT DRUM STOPPER ARM

90022-MG8-000

$2.48

22

BOLT, FLANGE SOCKET (6X14)

90071-MF5-000

$3.35

23

WASHER (6.1MM)

90435-HB3-000

$2.92

24

PLATE, BEARING HOLDER

90441-KA4-700

$3.35

25

WASHER (14MM)

90451-155-000

$3.78

26

BEARING, RADIAL BALL (6905U)

91004-KY4-900

$22.87

27

BOLT, HEX. (6X16)

93301-06016-0A

$1.49

28

CIRCLIP (OUTER) (14MM)

94510-14000

$1.49

29

ROLLER (4X8)

96220-40080

$1.49
