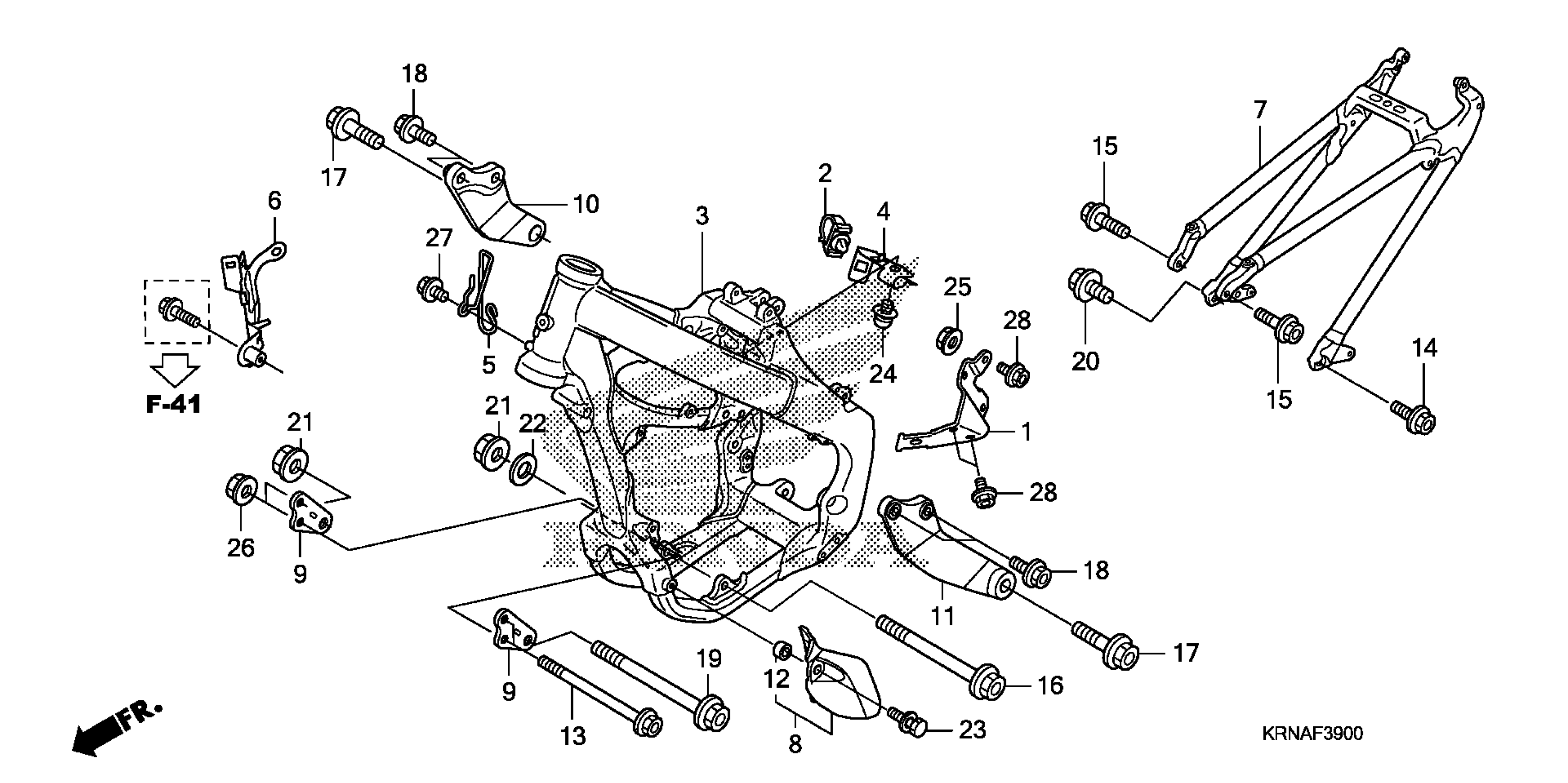

Honda CRF250RA (10) CRF250R, JPN, VIN# JH2ME103-AK600001 TO JH2ME103-AK699999 FRAME Diagram

#

Description
Price

1

BRACKET, ELECTRIC

31410-KRN-A40

$28.28

2

CLAMP, WIRE

32660-MJ6-710

$3.46

3

FRAME This part replaces 50100-KRN-A40.

50100-KRN-A50

$1,547.68

3

FRAME

50100-KRN-A50

$1,547.68

4

STAY, STOPPER CABLE

50127-MEN-A30

Unavailable

5

GUIDE, CABLE

50128-MEN-A30

Unavailable

6

STAY, CONNECTOR

50180-KRN-A40

Unavailable

7

FRAME, RR.

50200-MEN-A30

$629.31

8

GUARD, L. ENGINE

50360-KRN-A40

$14.10

9

PLATE, FR. ENGINE HANGER

50405-KRN-A40

$7.88

10

PLATE, R. HEAD HANGER

50407-KRN-A40

$49.97

11

PLATE, L. HEAD HANGER

50408-KRN-A40

Unavailable

12

COLLAR, SPLASH GUARD

80123-MA1-640

$1.90

13

BOLT, FLANGE (8X121)

90101-KRN-A40

$6.00

14

BOLT, FLANGE (8X24)

90101-KZ3-J50

$2.46

15

BOLT (8X28)

90101-MEN-A10

$2.80

16

BOLT, FLANGE (10X132)

90101-MEN-670

$5.18

17

BOLT, FLANGE (10X30)

90102-MEN-A30

$3.48

18

BOLT, FLANGE (8X18)

90103-MEB-670

$1.81

19

BOLT, FLANGE (10X123)

90106-MEN-A30

$5.37

20

BOLT (10X24)

90122-MEN-730

$2.15

21

NUT, FLANGE (10MM)

90302-KZ3-J40

$2.51

22

WASHER (10MM)

90410-HC4-000

$3.65

23

BOLT-WASHER (6X18)

93404-06018-00

$0.99

24

SCREW-WASHER (4X16)

93891-04016-08

$1.06

25

NUT, FLANGE (6MM)

94050-06000

$0.60

26

NUT, FLANGE (8MM) NUT, FLANGE (10MM)

94050-08000

$0.87

27

BOLT, FLANGE (6X12)

96001-06012-00

$1.66

28

BOLT, FLANGE (6X14)

96001-06014-00

$1.66
