Description

Price

NI

CLUTCH KIT (INCLUDES FRICTION & METAL PLATES, SPRINGS & O-RING) | (Optional).Use up to Engine SN 2600413.

06001-KRN-002

$251.02

NI

CLUTCH KIT (INCLUDES FRICTION & METAL PLATES, SPRINGS & O-RING) | (Optional).Use from Engine SN 2600414.

06001-KRN-003

$259.95

1

CLIP, PISTON PIN (10MM)

13115-147-000

$2.11

2

GEAR, BALANCER DRIVE (32T)

13415-KRN-A40

$83.13

3

CLUTCH OUTER

22100-KRN-A40

$333.30

4

CENTER, CLUTCH

22120-KRN-A40

$101.47

5

DISK, CLUTCH FRICTION | Use from Engine SN 2600414.

22201-KRN-A10

$14.75

5

DISK, CLUTCH FRICTION | Use up to Engine SN 2600413.

22201-KRN-A10

$14.75

6

PLATE, CLUTCH

22321-KF0-770

$14.92

7

PLATE, CLUTCH PRESSURE

22351-KRN-A40

$53.43

8

PIECE, CLUTCH LIFTER

22352-KRN-670

$32.59

9

SPRING, CLUTCH

22401-KRN-A40

$5.66

10

ROD, CLUTCH LIFTER

22850-KZ4-A90

$16.01

11

GEAR, PRIMARY DRIVE (18T)

23121-KRN-A40

$68.46

12

COLLAR, CLUTCH (OUTER)

28237-KZ4-A10

$35.79

13

BOLT, SPECIAL (12X28)

90013-MEB-670

$5.98

14

BOLT-WASHER (6X25)

90022-MM5-000

$2.97

15

NUT (18MM)

90235-MEN-A30

$5.14

16

WASHER, PLAIN (12MM)

90402-KW6-960

$5.55

17

WASHER, LOCK (18MM)

90441-KSC-670

$3.26

18

WASHER, THRUST (18X32)

90456-KA4-000

$4.76

19

WASHER, THRUST (20MM)

90456-KRN-A40

$5.33

20

WASHER (12MM)

90608-072-000

$3.80

21

BEARING, NEEDLE (12MM) (NTN)

91001-147-003

$12.58

22

BEARING, NEEDLE (25X29X22) (TOYO)

91011-KS6-003

$31.47

23

SEAT, JUDDER SPRING | Use from Engine SN 2600414.

22125-435-000

$9.15

24

DISK B, CLUTCH FRICTION | Use from Engine SN 2600414.

22202-KSC-670

$15.38

25

SPRING, JUDDER | Use from Engine SN 2600414.

22402-435-000

$34.37

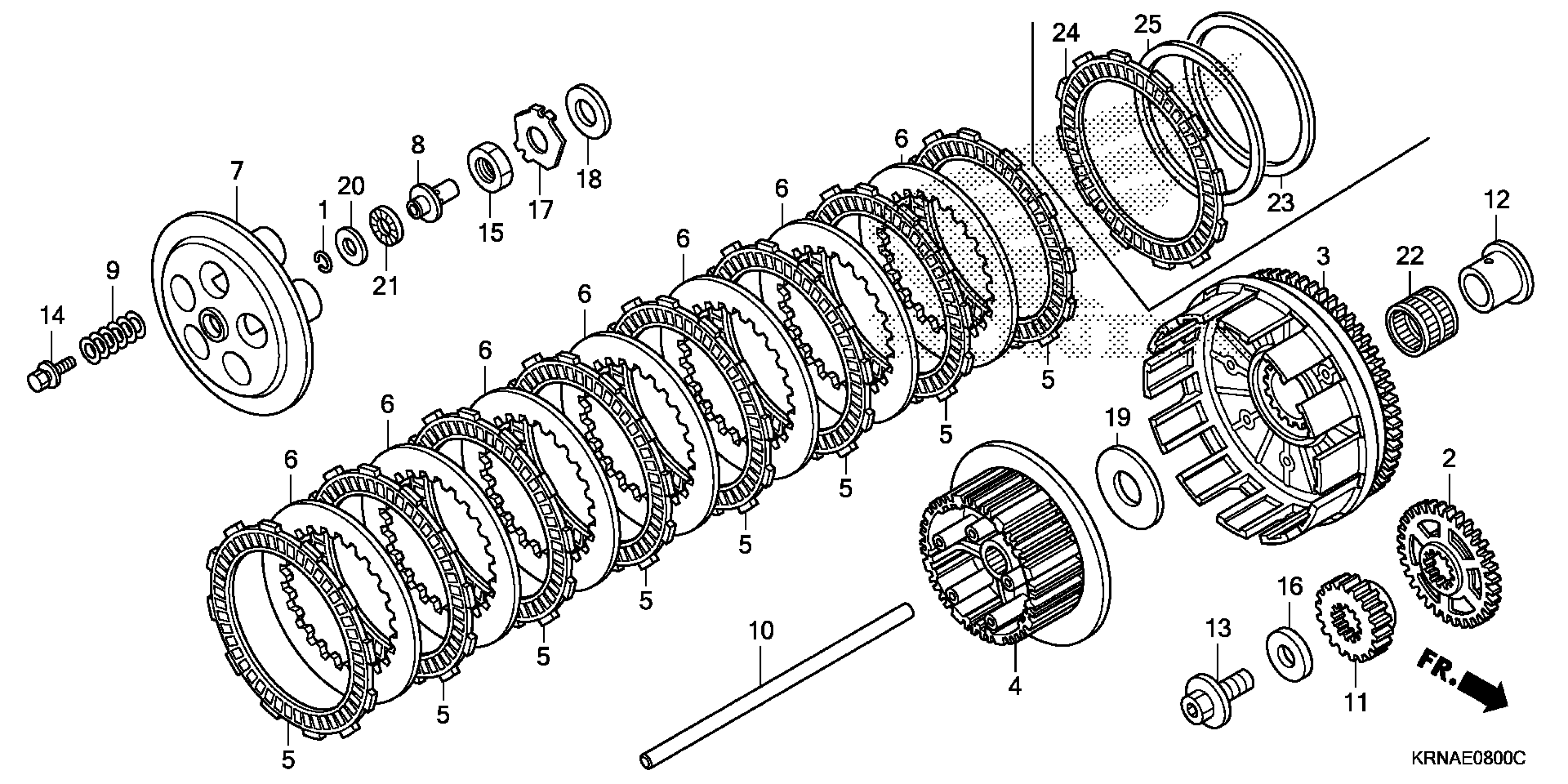

Honda CRF250RA (10) CRF250R, JPN, VIN# JH2ME103-AK600001 TO JH2ME103-AK699999 CLUTCH Diagram
