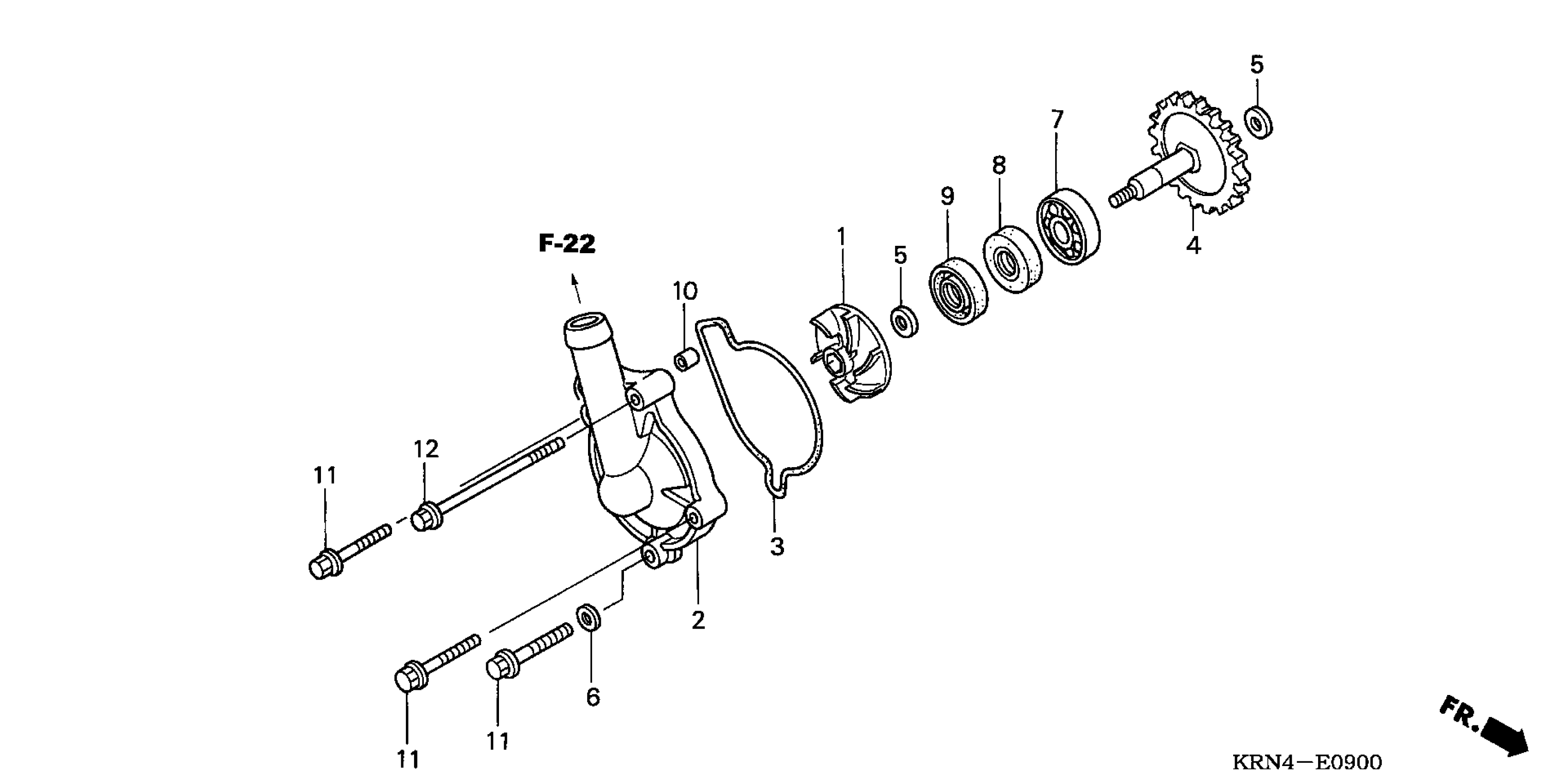

Honda CRF250RA (09) MOTORCYCLE, JPN, VIN# JH2ME103-9K500001 WATER PUMP Diagram

IMPELLER, WATER PUMP

19215-KRN-A00

$49.60

COVER, WATER PUMP

19221-KRN-A00

$95.34

GASKET, WATER PUMP

19226-KRN-670

$5.25

GEAR, WATER PUMP (22T)

19240-KRN-670

$97.55

WASHER, SEALING (7MM)

90447-KE1-000

$2.66

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.92

BEARING, RADIAL BALL (12X28X7) (NTN)

91001-KA4-003

$17.08

OIL SEAL (12X22X5) This part replaces 91201-148-003.

91201-965-000

$4.06

OIL SEAL (12X22X5)

91201-965-000

$4.06

SEAL, WATER PUMP

91211-KSE-671

$4.69

PIN, DOWEL (8X10)

94301-08100

$2.25

BOLT, FLANGE (6X28)

96001-06028-00

$2.06

BOLT, FLANGE (6X70)

96001-06070-00

$1.95
