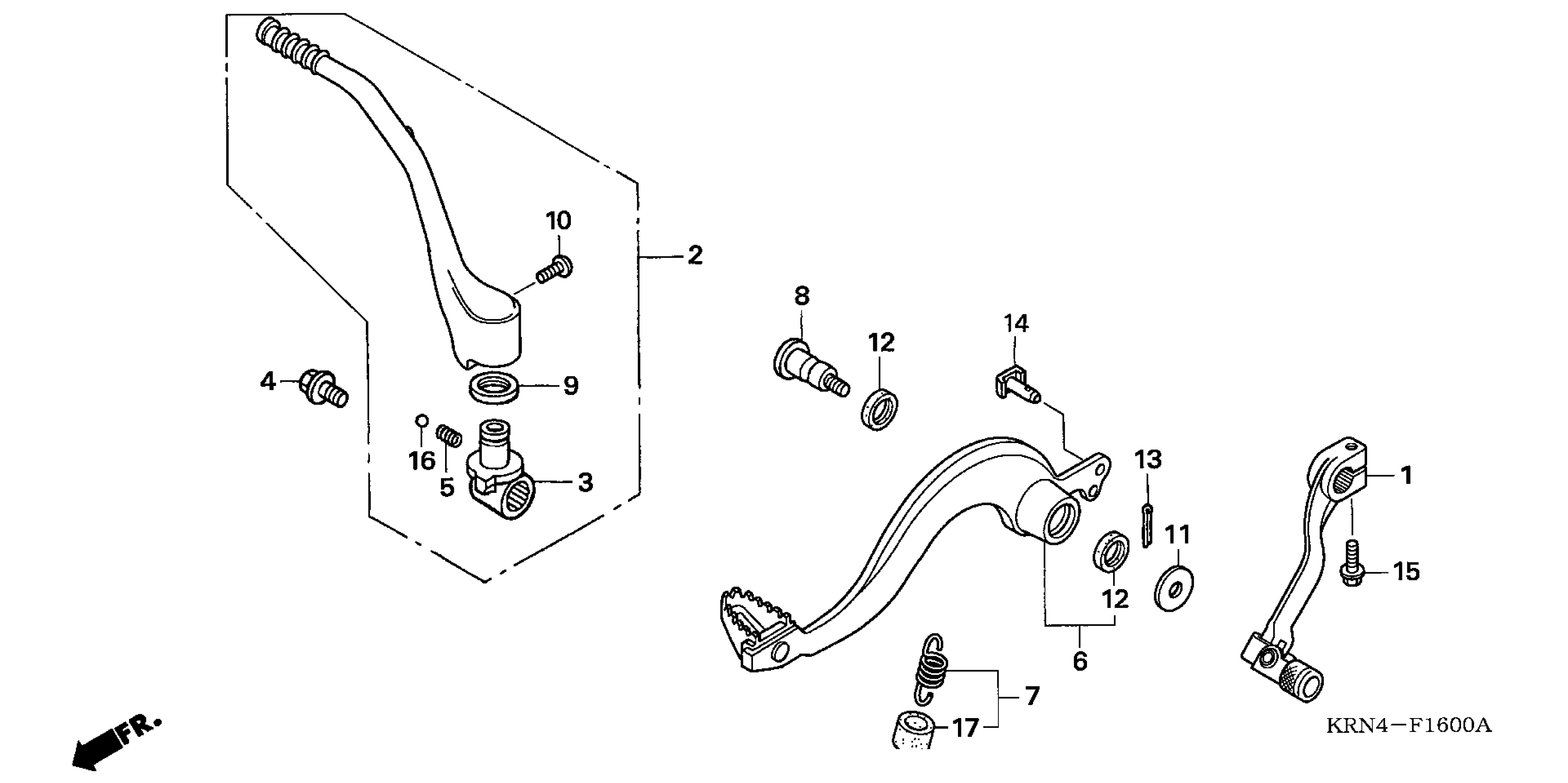

Honda CRF250RA (09) MOTORCYCLE, JPN, VIN# JH2ME103-9K500001 PEDAL + KICK STARTER ARM Diagram

PEDAL, CHANGE

24700-KRN-000

$124.33

PEDAL, CHANGE This part replaces 24700-KSC-305.

24700-KRN-000

$124.33

ARM ASSY., KICK STARTER (COO) This part replaces 28300-KRN-000.

28300-KSC-305

$213.18

ARM ASSY., KICK STARTER (COO)

28300-KSC-305

$213.18

JOINT, KICK ARM

28302-KRN-000

$80.39

BOLT, KICK JOINT

28306-MEN-670

$5.84

SPRING, KICK STARTER

28333-KK0-000

$2.51

PEDAL, RR. BRAKE

46510-KRN-000

$112.16

SPRING ASSY., RR. BRAKE RETURN

46511-KZ4-J00

$7.48

SHAFT, BRAKE PIVOT

46513-KRN-730

$14.20

DUST SEAL (17X20X2.5)

46525-KK0-003

$5.05

BOLT, KICK ARM

90103-KRN-000

$2.00

WASHER (26X10.5)

90512-KRN-730

$2.59

DUST SEAL (15X20X2.5)

91251-444-000

$4.33

PIN, SPLIT (2.0X12)

94201-20120

$1.49

PIN D, JOINT

95015-54000

$4.24

BOLT, FLANGE (6X22)

96001-06022-00

$1.49

BALL, STEEL (#8) (1/4)

96211-08000

$1.49

TUBE, BRAKE PEDAL SPRING

46515-MN1-670

$3.26
