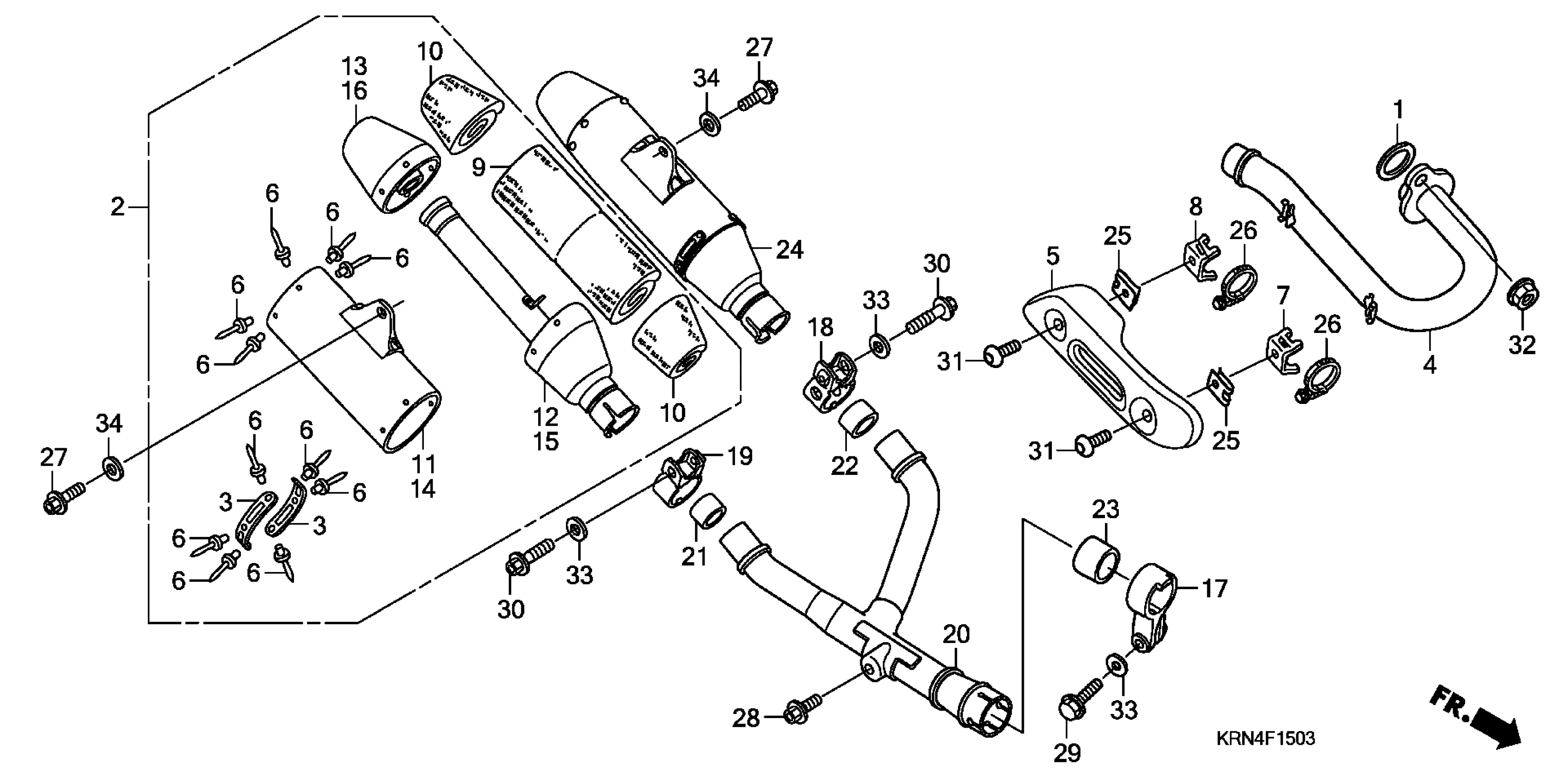

Honda CRF250RA (07) MOTORCYCLE, JPN, VIN# JH2ME103-7M300001 TO JH2ME103-7M309999 EXHAUST MUFFLER ('07-'09) Diagram

#

Description
Price

1

GASKET, EX. PIPE

18291-MM5-860

$4.93

2

MUFFLER, R. (98DB)

18310-KRN-A00

Unavailable

3

BAND, MUFFLER BODY

18317-KRN-850

Unavailable

4

PIPE, EX.

18320-KRN-A00

Unavailable

5

PROTECTOR, EX. PIPE

18323-KRN-000

$71.76

6

RIVET, BLIND (3.2)

18326-KRN-A00

$1.15

7

STAY, EX. PIPE PROTECTOR

18327-KRN-730

Unavailable

8

STAY, RR. EX. PIPE PROTECTOR

18328-KRN-A00

Unavailable

9

PACK A, GLASS WOOL

18336-KRN-A00

$45.97

10

WOOL B, GLASS

18337-KRN-850

$15.41

11

BODY, R. MUFFLER

18350-KRN-A00

$299.51

12

MUFFLER, R. FR.

18351-KRN-A00

$179.43

13

MUFFLER, R. RR. (98DB)

18352-KRN-850

Unavailable

14

BODY, L. MUFFLER

18353-KRN-A00

$290.76

15

MUFFLER, L. FR.

18354-KRN-A00

$160.47

16

MUFFLER, L. RR. (98DB)

18355-KRN-850

Unavailable

17

BAND, R. MUFFLER

18373-KE8-000

$26.30

17

BAND, R. MUFFLER This part replaces 18374-MG7-701.

18373-KE8-000

$26.30

18

BAND, L. EX. PIPE

18374-ML0-000

$27.91

19

BAND, L. EX. PIPE

18374-ML4-003

$15.03

20

PIPE, EX. JOINT

18380-KRN-A00

$232.90

21

GASKET, MUFFLER

18391-ML8-000

$8.48

22

GASKET, EX.

18392-HA7-710

$14.60

23

GASKET, MUFFLER

18392-MK4-000

$12.54

24

MUFFLER, L. (98DB)

18410-KRN-A00

Unavailable

25

NUT, SPRING (6MM)

19508-KA3-710

$5.47

26

CLAMP, RADIATOR HOSE

19509-MM5-003

$12.46

27

BOLT, FLANGE (8X24)

90101-KZ3-J50

$2.46

28

BOLT (8X18)

90123-MEN-730

$1.82

29

BOLT, FLANGE (8X35)

90124-KZ4-J40

$2.09

30

BOLT, FLANGE (8X32)

90124-MEB-770

$1.88

31

BOLT, SPECIAL (6MM)

90170-MEB-670

$1.66

32

NUT, FLANGE (8MM)

94050-08000

$0.87

33

WASHER, PLAIN (8MM)

94102-08800

$0.87

34

WASHER, PLAIN (8MM)

94103-08000

$0.60
