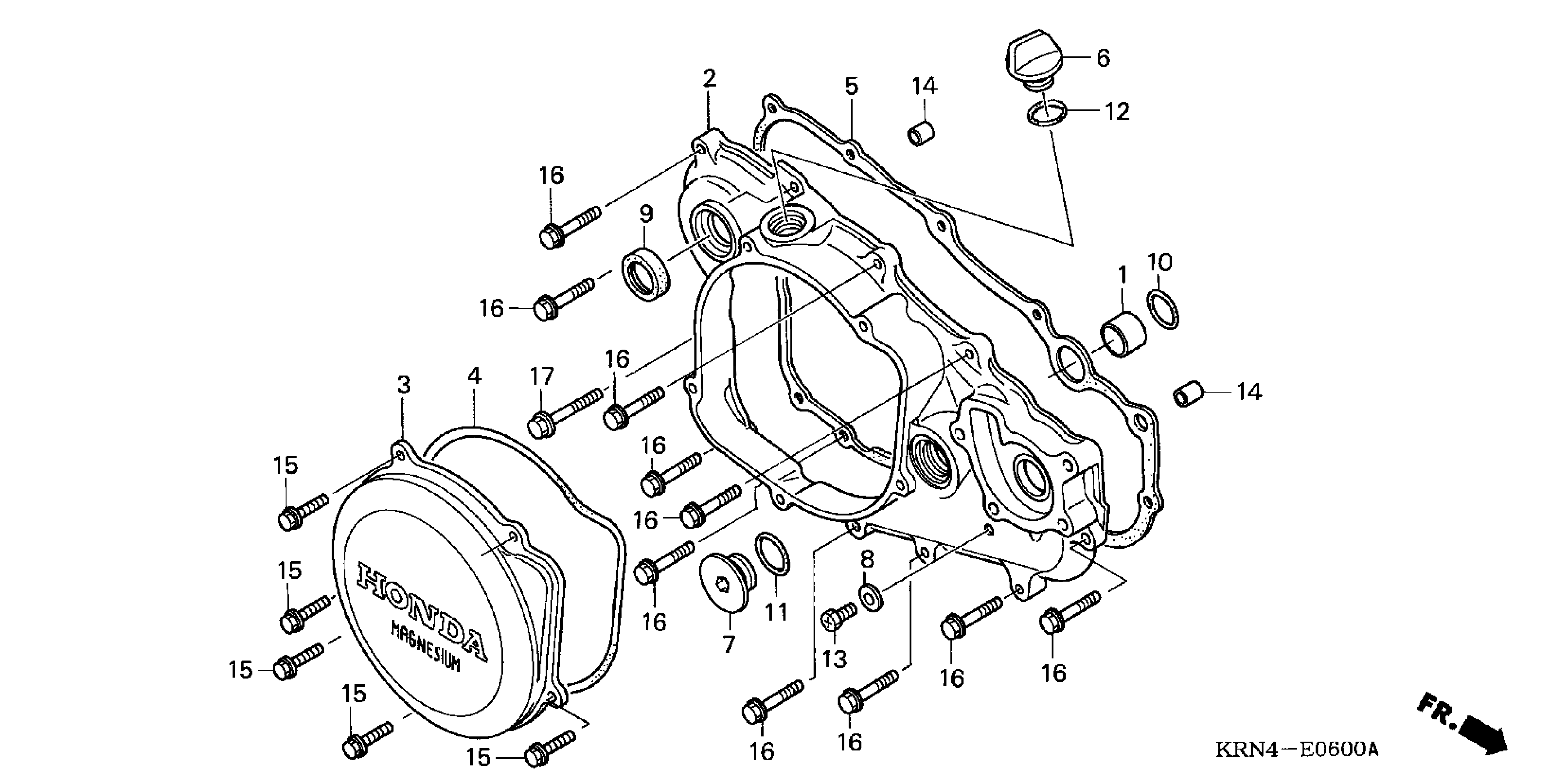

Honda CRF250RA (06) MOTORCYCLE, JPN, VIN# JH2ME103-6M200001 TO JH2ME103-6M219999 RIGHT CRANKCASE COVER Diagram

COLLAR, WATER PASS (16MM)

11102-KRN-670

$2.80

COVER, R. CRANKCASE

11331-KRN-730

Unavailable

COVER, CLUTCH

11351-KRN-670

Unavailable

GASKET, CLUTCH COVER

11352-KRN-671

$8.42

GASKET, R. COVER This part replaces 11394-KRN-670.

11394-KRN-A02

$19.33

GASKET, R. COVER This part replaces 11394-KRN-A00.

11394-KRN-A02

$19.33

GASKET, R. COVER This part replaces 11394-KRN-A01.

11394-KRN-A02

$19.33

CAP, OIL FILLER

15611-KA4-710

$12.93

CAP (30MM)

90087-KW3-000

$18.78

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.80

OIL SEAL (16.5X25X5) (NOK)

91205-KA3-712

$5.73

O-RING (16MM) This part replaces 91304-MJ0-003.

91303-800-000

$2.03

O-RING (27X2) (ARAI)

91305-KF0-003

$2.80

O-RING (18X3)

91307-035-000

$2.71

BOLT, RECESSED (6X10)

92301-06010-0A

$0.71

PIN, DOWEL (8X14)

94301-08140

$2.04

BOLT, FLANGE (6X20)

96001-06020-00

$1.13

BOLT, FLANGE (6X28)

96001-06028-00

Unavailable

BOLT, FLANGE (6X35)

96001-06035-00

$1.28
