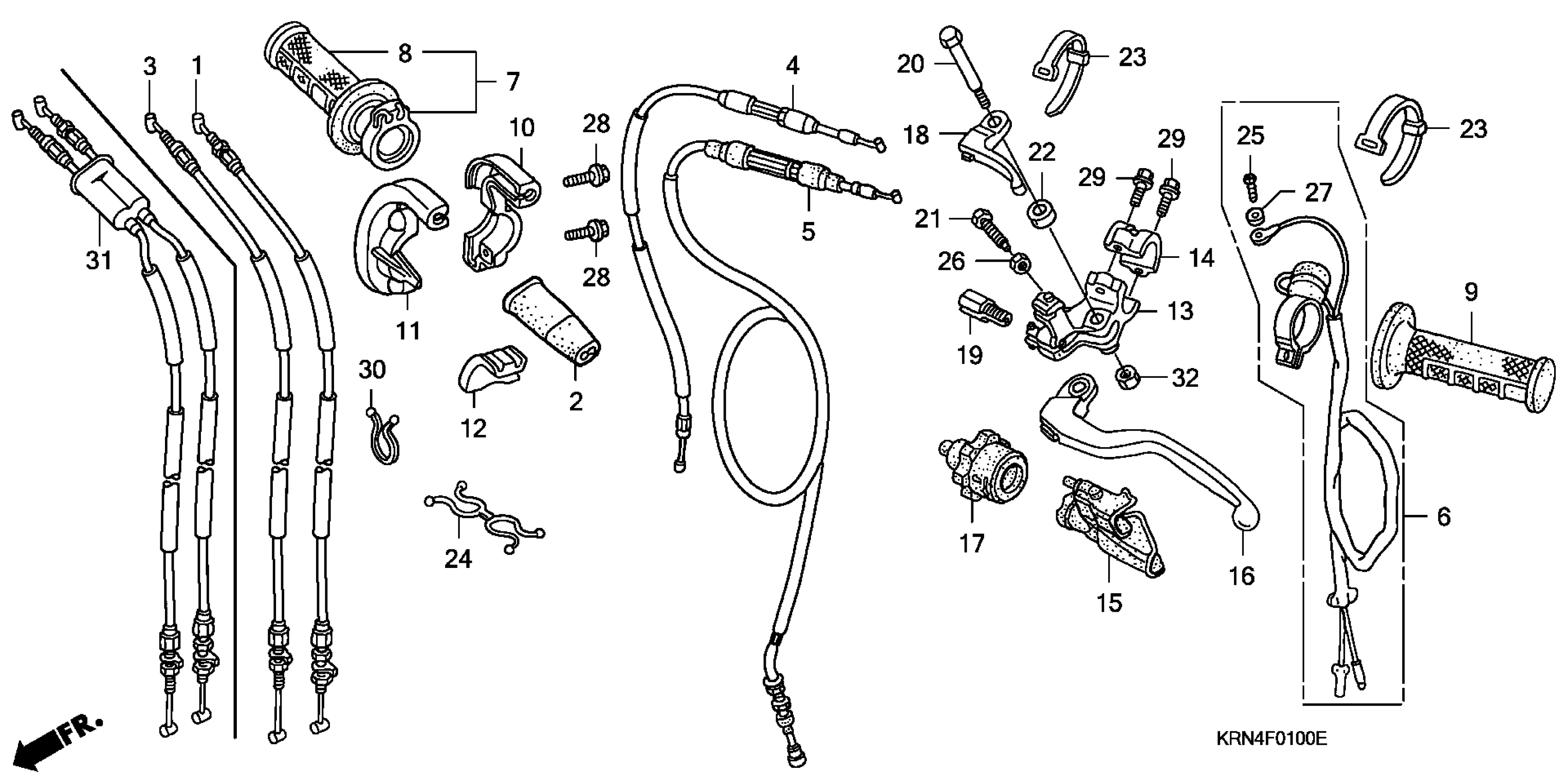

Honda CRF250RA (06) MOTORCYCLE, JPN, VIN# JH2ME103-6M200001 TO JH2ME103-6M219999 HANDLE LEVER + SWITCH + CABLE Diagram

#

Description
Price

1

CABLE A, THROTTLE

17910-KRN-000

$29.45

2

COVER, THROTTLE CABLE

17913-KB7-000

$9.52

3

CABLE B, THROTTLE

17920-KRN-000

$29.45

4

CABLE, HOT STARTER

17950-KRN-000

$21.52

5

CABLE, CLUTCH

22870-KRN-000

$28.38

6

SWITCH ASSY., STOP

35130-MEB-670

$27.31

7

GRIP, THROTTLE

53140-MEB-671

$23.85

8

GRIP, R. HANDLE (COO) This part replaces 53165-GBF-J60.

53165-KPT-305

$9.22

9

GRIP, L. HANDLE (COO) This part replaces 53166-GBF-J60.

53166-KPT-305

$9.22

9

GRIP, L. HANDLE (COO)

53166-KPT-305

$9.22

10

HOUSING, THROTTLE (UPPER)

53167-MEB-672

$19.33

10

HOUSING, THROTTLE (UPPER) This part replaces 53167-MEB-671.

53167-MEB-672

$19.33

11

HOUSING, THROTTLE (LOWER) This part replaces 53168-MEB-671.

53168-KRN-A90

$26.48

11

HOUSING, THROTTLE (LOWER) This part replaces 53168-MEB-670.

53168-KRN-A90

$26.48

12

SLIDER, THROTTLE CABLE

53169-MEB-670

$4.03

13

BRACKET, L. HANDLE LEVER

53172-MEN-670

$28.48

14

HOLDER, L. LEVER BRACKET

53174-KCE-670

$12.08

15

COVER, L. HANDLE LEVER

53177-MEN-670

Unavailable

16

LEVER, L. HANDLEBAR

53178-MEN-670

$22.93

17

DIAL, CLUTCH CABLE ADJUSTING

53179-MEN-671

$10.12

18

LEVER, HOT STARTER

53190-MEN-670

$15.23

19

BOLT, WIRE ADJUSTING

53192-MEN-670

$7.37

20

BOLT, HANDLE LEVER PIVOT This part replaces 90113-MEN-670.

90113-MEY-A10

$4.20

20

BOLT, HANDLE LEVER PIVOT

90113-MEY-A10

$4.20

21

BOLT, LEVER ADJUSTING

90118-MEN-670

$3.62

22

COLLAR, PIVOT

90501-MEN-670

$2.65

23

BAND, WIRE (95MM)

90650-KV6-003

$2.90

24

CLIP, WIRE HARNESS

90658-SA0-003

$8.57

25

SCREW, PAN (4X12)

93500-04012-0A

$0.75

25

SCREW, PAN (4X12) This part replaces 93500-04012-1A.

93500-04012-0A

$0.75

26

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.19

26

NUT, HEX. (6MM)

94001-06200-0S

$1.19

27

WASHER, SPRING (4MM)

94111-04000

$0.97

28

BOLT, FLANGE (6X18)

96001-06018-07

$1.14

29

BOLT, FLANGE (6X22)

96001-06022-00

$1.13

30

LOCK, PURSE

32171-GF9-621

$1.94

32

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.19

32

NUT, HEX. (6MM)

94001-06200-0S

$1.19
