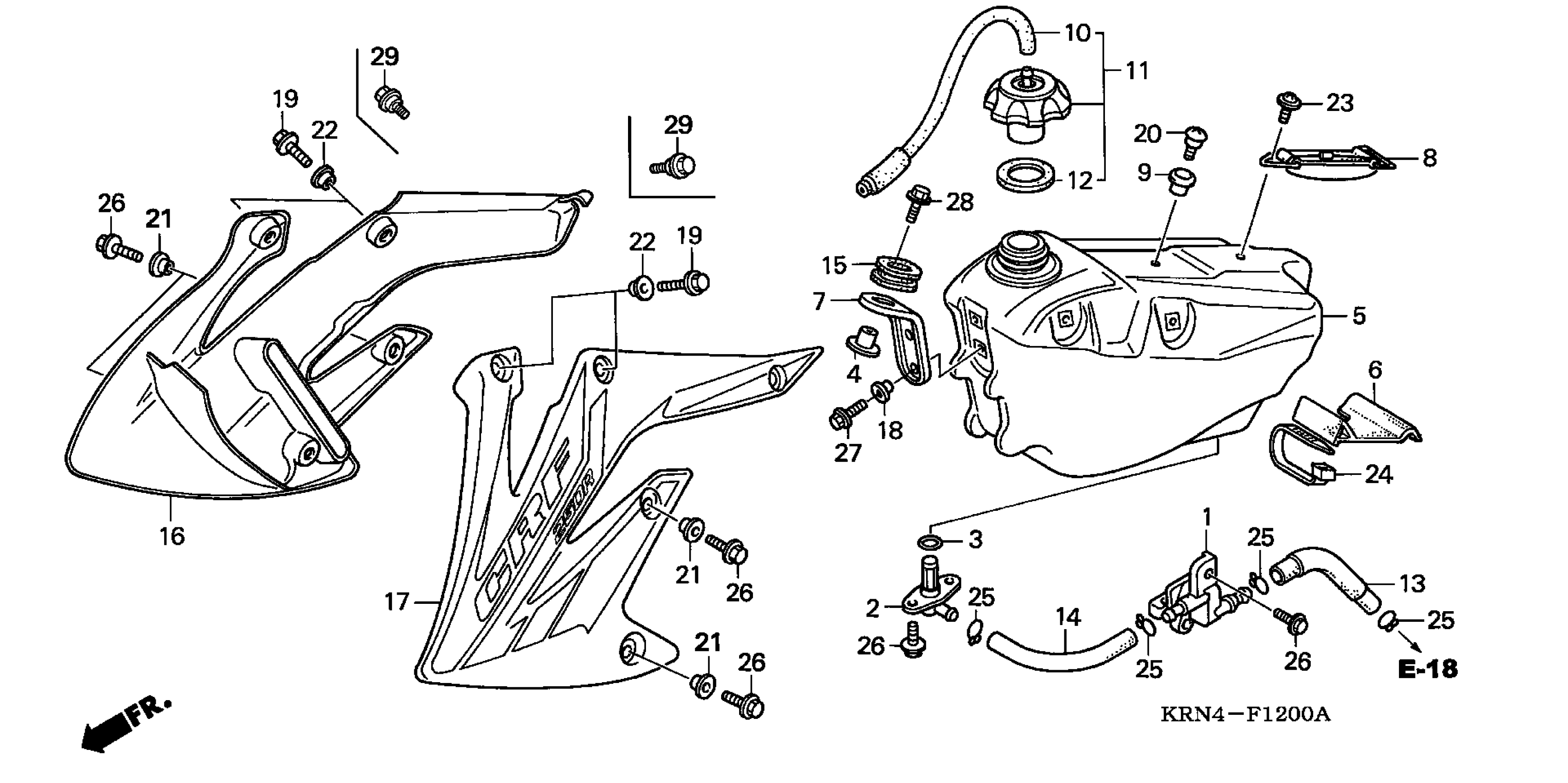

Honda CRF250RA (06) MOTORCYCLE, JPN, VIN# JH2ME103-6M200001 TO JH2ME103-6M219999 FUEL TANK Diagram

PETCOCK ASSY.

16950-KRN-003

$38.68

JOINT ASSY., FUEL

16955-MEB-671

$11.93

O-RING (11.8X3.55)

16997-467-000

$2.11

COLLAR, TANK SETTING

17509-KZ3-B00

$9.00

TANK, FUEL

17510-KRN-730

Unavailable

RUBBER, FUEL TANK MOUNTING This part replaces 17512-KRN-000.

17512-KRN-010

$19.34

RUBBER, FUEL TANK MOUNTING

17512-KRN-010

$19.34

STAY, FR. TANK

17515-KRN-000

Unavailable

BAND, RR. TANK

17516-KZ3-B00

$16.29

COLLAR, FR. SEAT

17518-KZ4-710

$5.80

TUBE, FUEL CAP BREATHER

17521-KZ4-J20

$4.83

CAP ASSY., FUEL TANK

17620-MEB-670

$91.13

GASKET, FUEL CAP This part replaces 17624-KT1-780.

17624-KT1-781

$4.81

TUBE B, FUEL

17681-KRN-000

$4.46

TUBE A, FUEL

17684-KRN-000

$3.38

RUBBER, MUFFLER

18334-ML3-680

$3.87

SHROUD SET, R. RADIATOR (TYPE1) (WL)

19071-KRN-850ZA

$102.75

SHROUD SET, L. RADIATOR (TYPE1) (WL)

19072-KRN-850ZA

Unavailable

COLLAR

84706-415-000

$2.23

SCREW, SPECIAL (5MM)

91422-MT8-770

$2.90

COLLAR A

90501-KZ4-J20

$3.67

SCREW, PAN (5X13)

90108-MN0-000

$1.70

TY-RAP, CABLE

91560-MS8-600

$2.38

CLIP, TUBE (B12)

95002-02120

$2.00

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

BOLT, FLANGE (6X30)

96001-06030-00

$1.49

BOLT, SPECIAL (5X9)

90101-KRN-730

$2.64
