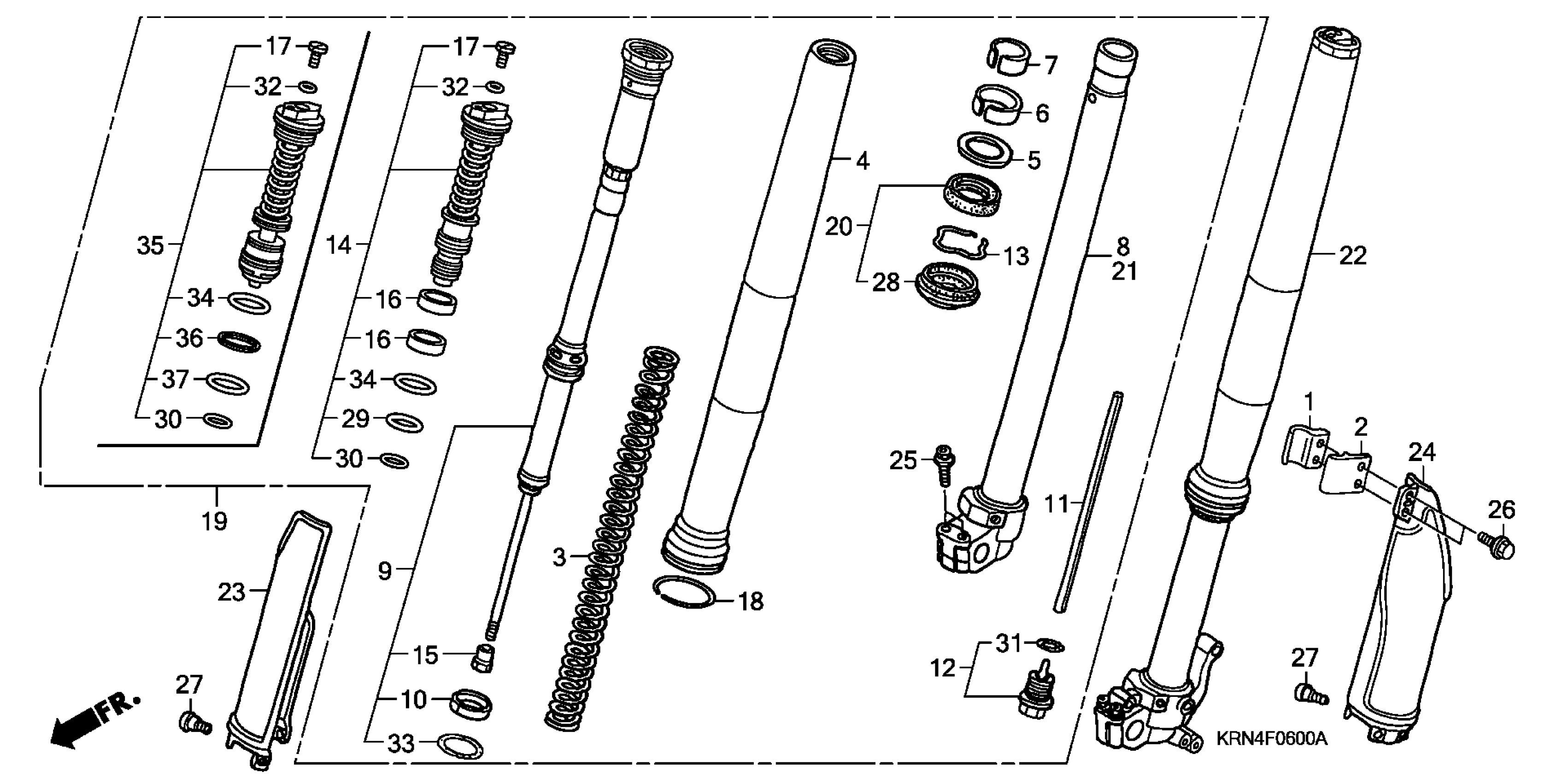

Honda CRF250RA (06) MOTORCYCLE, JPN, VIN# JH2ME103-6M200001 TO JH2ME103-6M219999 FRONT FORK Diagram

#

Description
Price

1

CLAMP A, FR. BRAKE HOSE

45461-MEN-000

$5.91

2

CLAMP B, FR. BRAKE HOSE

45462-MEN-000

$4.36

3

SPRING, FR. FORK (4.22N/MM,0.43KGF/MM) (SHOWA) | (Optional).

51401-KZ3-J21

$76.42

3

SPRING, FR. FORK (4.61N/MM,0.47KGF/MM) (SHOWA) | (Optional).

51401-MEB-003

$92.87

3

SPRING, FR. FORK (4.41N/MM,0.45KGF/MM) (SHOWA)

51402-MEB-751

Unavailable

4

TUBE (OUTER)

51410-MEN-841

Unavailable

5

RING, BACK-UP

51412-KRN-711

$5.97

6

BUSH, GUIDE

51414-KZ3-B01

$15.09

7

BUSH, SLIDER

51415-KZ3-B01

$8.67

8

PIPE, R. SLIDE

51420-KSC-A01

$391.17

9

DAMPER, FR.

51430-KRN-841

Unavailable

10

BUSH B, SLIDER

51431-KZ3-B01

$8.67

11

COLLAR, REBOUND NEEDLE

51437-KZ3-J41

$8.83

12

BOLT, CENTER

51440-KRN-711

$24.50

13

RING, OIL SEAL STOPPER

51447-KZ3-003

$4.76

14

BOLT ASSY., FR. FORK

51450-KRN-841

Unavailable

15

NUT, LOCK

51451-KZ3-B01

$13.99

16

BUSH C, SLIDER

51453-KZ3-B01

$6.08

17

BOLT, PLUG

51456-KZ3-J41

$5.78

18

RING, WEAR

51476-MEY-003

$4.56

19

FORK SUB-ASSY., R. FR. (SHOWA)

51480-KRN-841

Unavailable

20

SEAL SET, FR. FORK

51490-MEN-003

$21.58

21

PIPE, L. SLIDE

51520-KSC-A01

$391.17

22

FORK SUB-ASSY., L. FR. (SHOWA)

51580-KRN-841

Unavailable

23

PROTECTOR, R. FR. FORK *TNATURAL* (NATURAL)

51610-MEN-000ZA

$39.81

24

PROTECTOR, L. FR. FORK *TNATURAL* (NATURAL)

51620-MEN-000ZA

$43.43

25

BOLT, FLANGE (8X40)

90108-KZ4-J40

$1.94

26

BOLT, FLANGE (6MM)

90113-KZ3-000

$2.58

27

BOLT, PROTECTOR

90113-MAC-780

$3.28

28

DUST SEAL

91254-KZ3-J31

$10.83

29

O-RING (26.7X3.5)

91256-KZ3-A71

$2.88

30

O-RING (27.7X1.9)

91257-MEB-751

$2.07

31

O-RING (18.8X1.9)

91258-KZ3-B01

$2.48

32

O-RING (3.5X1.5)

91301-KZ3-711

$2.46

33

O-RING (44.7X2.4)

91356-KZ3-003

$3.66

34

O-RING (37.2X2.4) (SHOWA)

91356-MW0-003

$2.67
