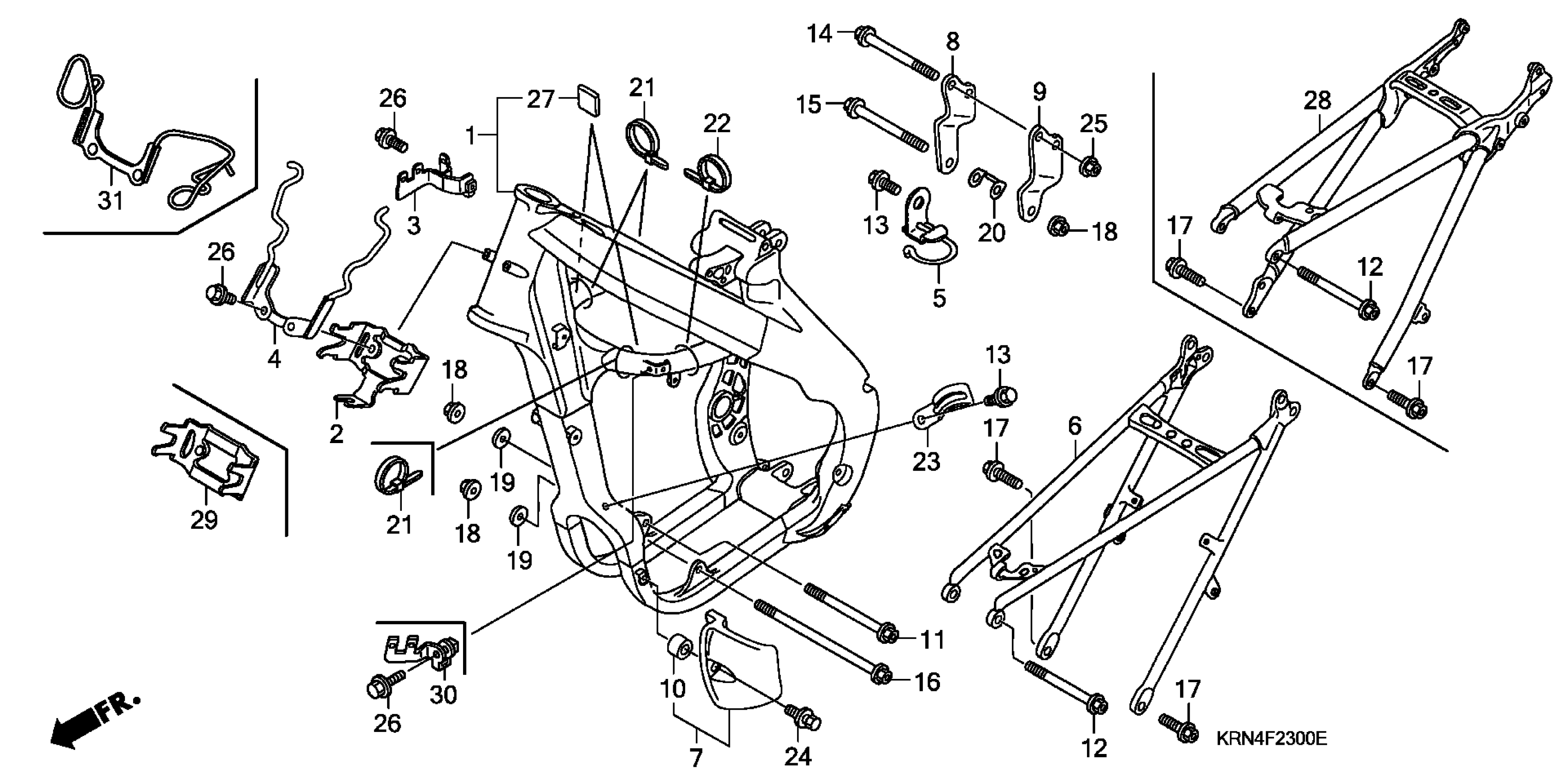

Honda CRF250RA (06) MOTORCYCLE, JPN, VIN# JH2ME103-6M200001 TO JH2ME103-6M219999 FRAME Diagram

#

Description
Price

1

FRAME SET

50010-KRN-851

$1,396.80

2

BRACKET, IGNITION CONTROL MODULE (CDI)

50124-KRN-000

Unavailable

3

STAY, CONNECTOR

50126-KRN-000

$6.43

4

GUIDE, HARNESS

50128-KRN-000

Unavailable

5

CLIP, FUEL TUBE

50197-KRN-000

$5.34

7

GUARD, L. ENGINE

50360-KRN-000

$13.45

8

BRACKET, R. HEAD HANGER

50407-KRN-850

Unavailable

9

BRACKET, L. HEAD HANGER

50408-KRN-851

Unavailable

10

COLLAR (6X4)

52156-353-300

$6.32

11

BOLT, FLANGE (10X117)

90101-KZ3-J20

$4.17

12

BOLT, FLANGE (8X125)

90105-KRN-000

$5.03

13

BOLT, FLANGE (5X12)

90106-KRN-000

$1.49

14

BOLT, FLANGE (8X55)

90107-KRN-000

$2.46

15

BOLT, FLANGE (10X58)

90109-KRN-000

Unavailable

16

BOLT, FLANGE (10X138)

90116-KW3-000

$13.75

17

BOLT, FLANGE (10X26)

90122-KRN-000

$2.46

18

NUT, FLANGE (10MM)

90302-KZ3-J40

$2.72

19

WASHER (10MM)

90410-HC4-000

$3.81

20

WASHER, HEAD HANGER PLATE

90511-KRN-000

$5.26

21

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$2.92

22

BAND, WIRE (BLACK)

90652-KT1-771

$4.48

23

CLIP (2X70)

91404-KRN-000

$2.85

24

BOLT-WASHER (6X14)

93404-06014-00

$1.49

25

NUT, FLANGE (8MM)

94050-08000

$1.49

26

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

27

RUBBER, SEAT RAIL

50283-MR7-300

$2.92

28

FRAME, RR.

50200-KRN-850

Unavailable
