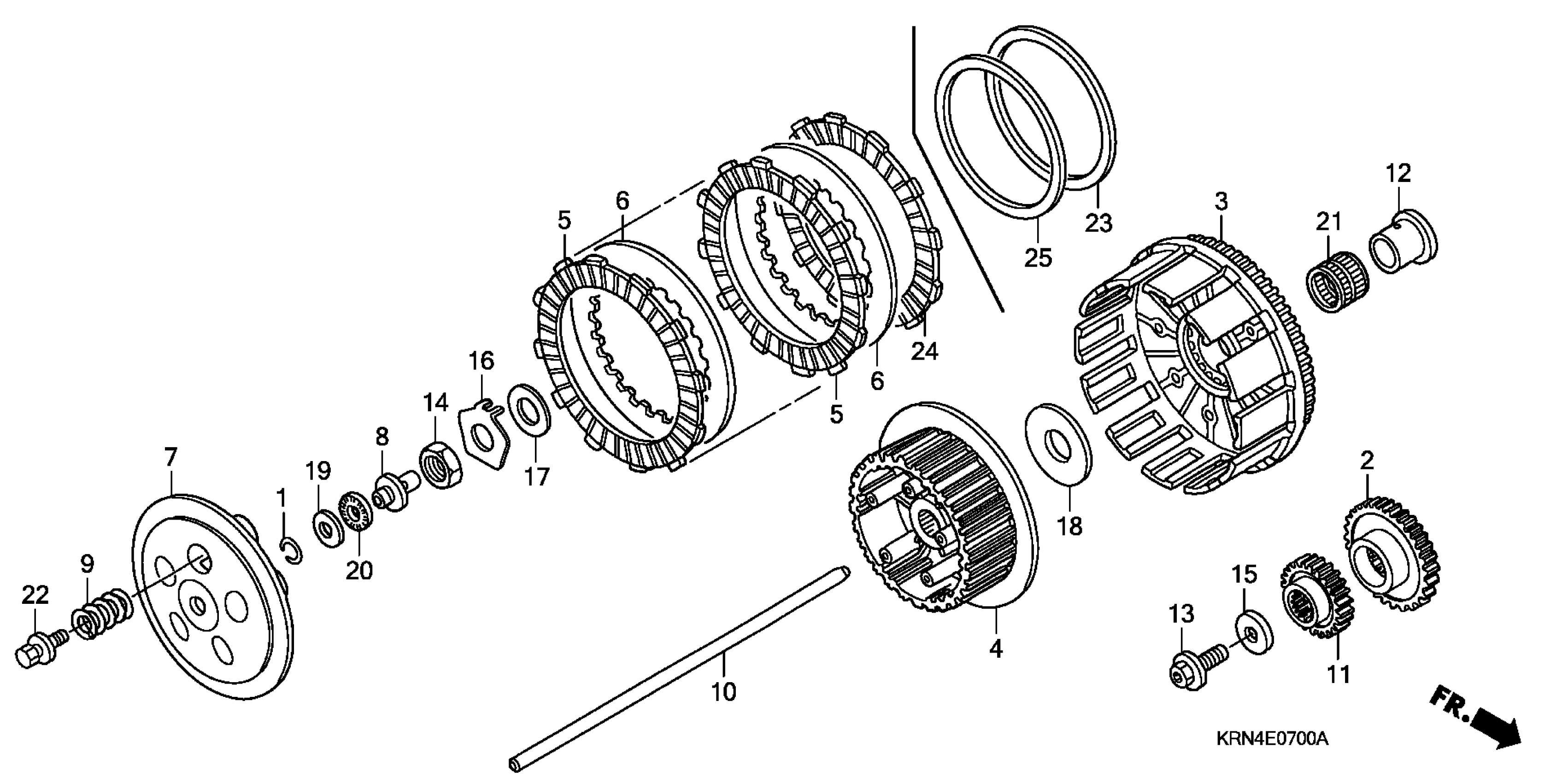

Honda CRF250RA (06) MOTORCYCLE, JPN, VIN# JH2ME103-6M200001 TO JH2ME103-6M219999 CLUTCH Diagram

#

Description
Price

NI

CLUTCH KIT (INCLUDES FRICTION & METAL PLATES, SPRINGS & O-RING) | (Optional).

06001-KRN-000

$229.13

1

CLIP, PISTON PIN (10MM)

13115-147-000

$2.01

2

GEAR, BALANCER DRIVE (32T)

13415-KRN-670

$66.23

3

CLUTCH OUTER This part replaces 22100-KRN-670.

22100-KRN-A00

$339.48

3

CLUTCH OUTER

22100-KRN-A00

$339.48

4

CENTER, CLUTCH This part replaces 22120-KZ4-A90.

22120-KRN-A00

$100.49

4

CENTER, CLUTCH

22120-KRN-A00

$100.49

5

DISK, CLUTCH FRICTION

22201-KRN-670

$13.77

6

PLATE, CLUTCH

22321-KF0-770

$13.39

7

PLATE, CLUTCH PRESSURE

22351-KRN-A10

$49.27

7

PLATE, CLUTCH PRESSURE This part replaces 22351-KZ4-A90.

22351-KRN-A10

$49.27

8

PIECE, CLUTCH LIFTER

22352-KRN-670

$29.68

9

SPRING, CLUTCH

22401-KRN-730

$5.37

10

ROD, CLUTCH LIFTER

22850-KZ4-A90

$14.37

11

GEAR, PRIMARY DRIVE (18T)

23121-KRN-670

Unavailable

12

COLLAR, CLUTCH (OUTER)

28237-KZ4-A10

$32.59

13

BOLT, SPECIAL (12X28)

90013-MEB-670

$5.57

14

NUT (18MM)

90235-KA4-000

$9.96

15

WASHER, PLAIN (12MM)

90402-KW6-960

$5.17

16

WASHER, LOCK (18MM) This part replaces 90441-HA2-670.

90445-KAE-000

$4.56

16

WASHER, LOCK (18MM)

90445-KAE-000

$4.56

17

WASHER, THRUST (18X32)

90456-KA4-000

$4.26

18

WASHER, THRUST (20MM)

90456-KS6-000

$9.73

19

WASHER (12MM)

90608-072-000

$3.54

20

BEARING, NEEDLE (12MM) (NTN)

91001-147-003

$11.31

21

BEARING, NEEDLE (25X29X22) (TOYO)

91011-KS6-003

$28.25

22

BOLT-WASHER (6X20)

93404-06020-08

$1.48

24

DISK, CLUTCH FRICTION

22201-KRN-670

$13.77
