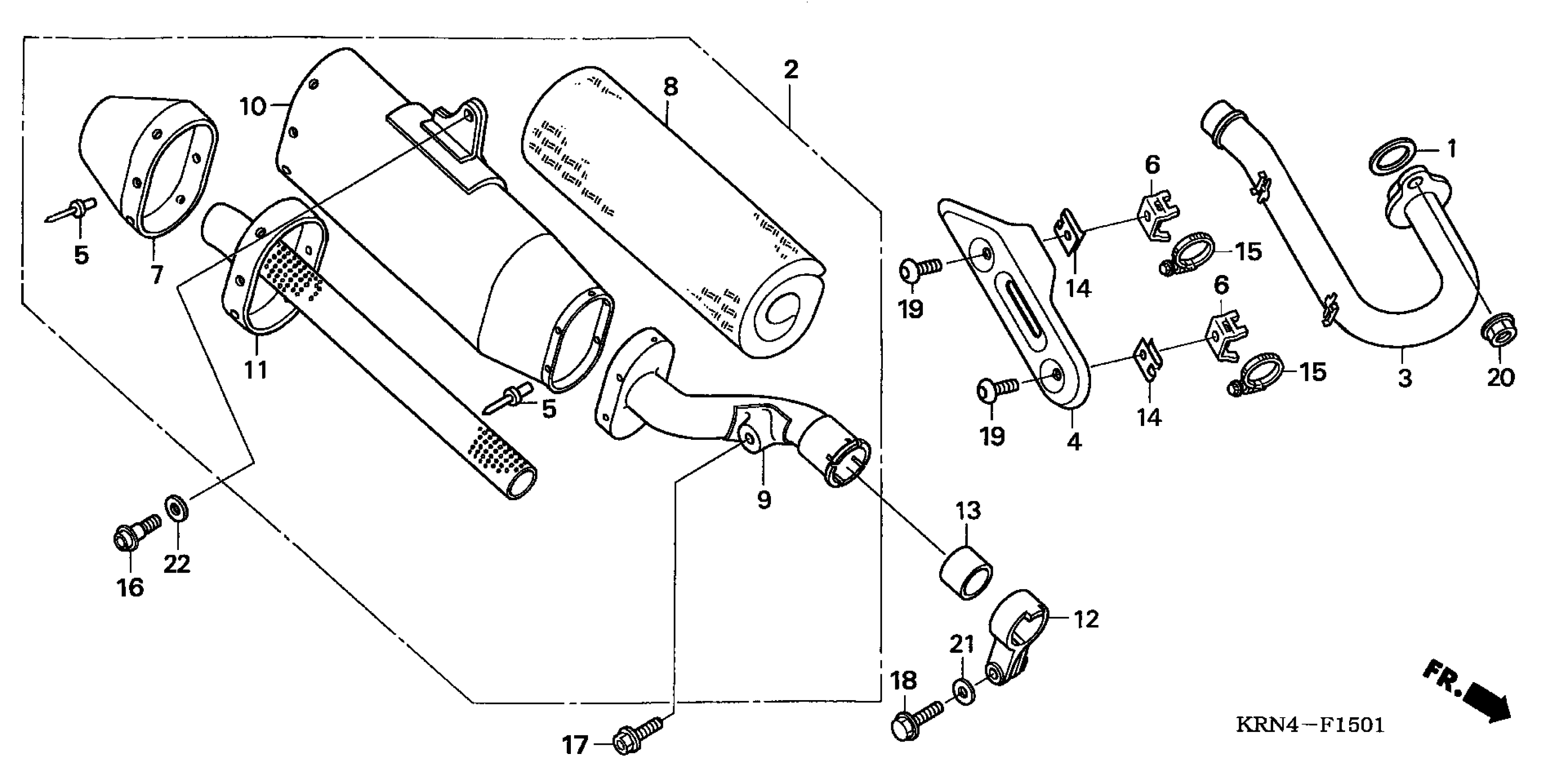

Honda CRF250RA (05) MOTORCYCLE, JPN, VIN# JH2ME103-5M100001 TO JH2ME103-5M109999 MUFFLER ('05) Diagram

GASKET, EX. PIPE

18291-MM5-860

$5.17

MUFFLER (98DB)

18310-KRN-730

$1,034.74

PIPE, EX. (98DB)

18320-KRN-730

$280.80

PROTECTOR, EX. PIPE

18323-KRN-000

$77.66

RIVET, BLIND (4.8)

18324-MEB-670

$1.49

STAY, EX. PIPE PROTECTOR

18327-KRN-730

$4.13

COVER, END (98DB)

18332-KRN-730

Unavailable

WOOL, GLASS

18336-KRN-730

$101.74

MUFFLER, FR. (98DB)

18350-KRN-730

Unavailable

BODY, MUFFLER (98DB)

18351-KRN-730

Unavailable

MUFFLER, RR. (98DB)

18352-KRN-000

Unavailable

BAND, R. MUFFLER

18373-KE8-000

$28.64

BAND, R. MUFFLER This part replaces 18374-MG7-701.

18373-KE8-000

$28.64

GASKET, MUFFLER

18392-MK4-000

$13.66

NUT, SPRING (6MM)

19508-KA3-710

$5.72

CLAMP, RADIATOR HOSE

19509-MM5-003

$13.58

BOLT, FLANGE (8X24)

90101-KZ3-J50

$2.66

BOLT, FLANGE (8X18)

90123-KZ4-J40

$1.97

BOLT, FLANGE (8X35)

90124-KZ4-J40

$2.26

BOLT, SPECIAL (6MM)

90170-MEB-670

$1.80

NUT, FLANGE (8MM)

94050-08000

$1.49

WASHER, PLAIN (8MM)

94102-08800

$1.49

WASHER, PLAIN (8MM)

94103-08000

$1.49
