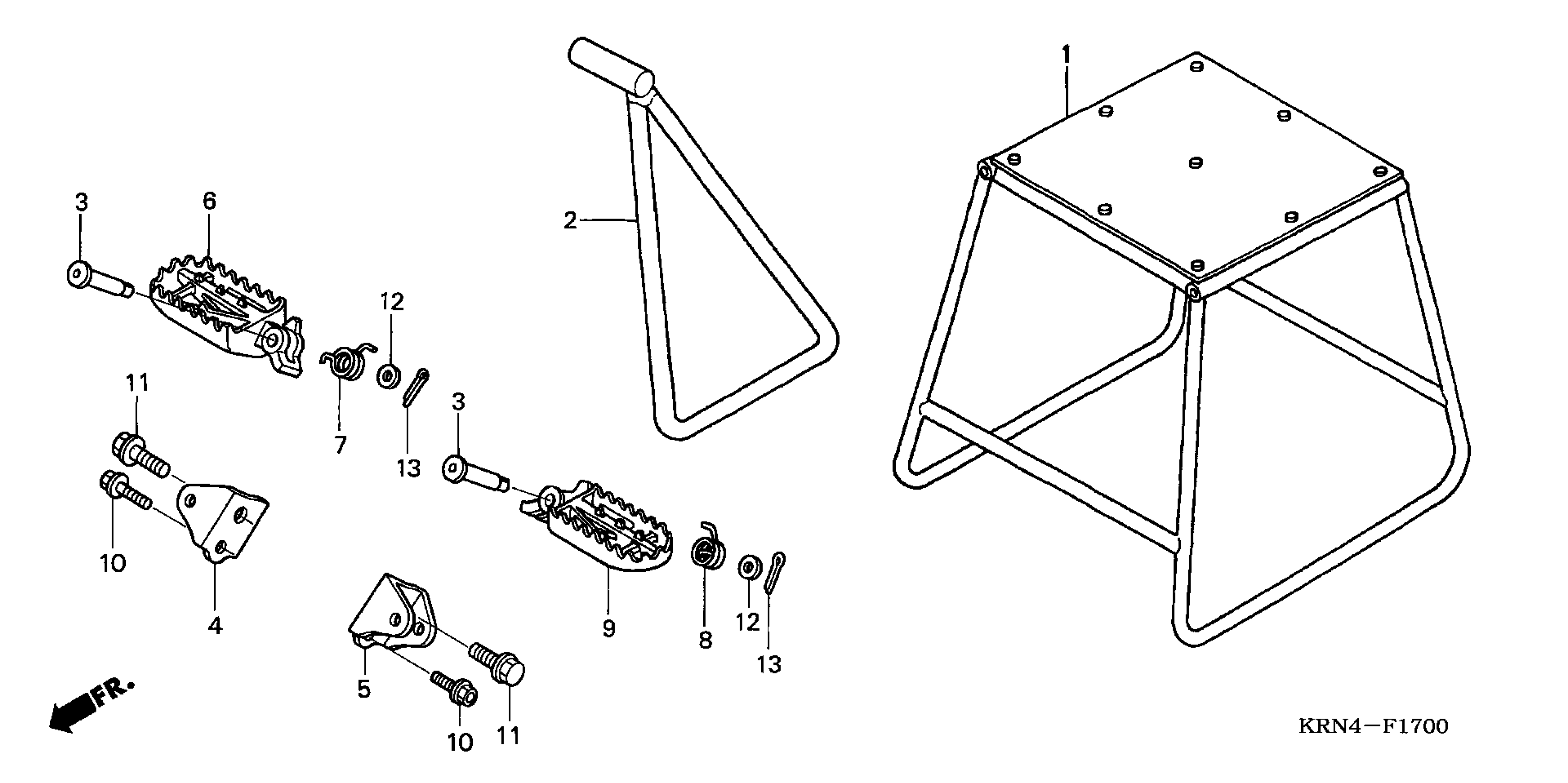

Honda CRF250RA (04) MOTORCYCLE, JPN, VIN# JH2ME103-4M000001 TO JH2ME103-4M049999 STAND + STEP Diagram

STAND, MAIN | (Optional).

50500-KA3-820

$142.74

BAR, SIDE STAND This part replaces 50530-KRN-305.

50530-KRN-A70

$65.39

BAR, SIDE STAND This part replaces 50530-KZ4-J40.

50530-KRN-A70

$65.39

BAR, SIDE STAND This part replaces 50530-MEN-305.

50530-KRN-A70

$65.39

PIN, STEP JOINT

50603-KZ4-J40

$3.67

BRACKET, R. STEP This part replaces 50610-MEN-670.

50610-MEN-671

$17.08

BRACKET, R. STEP

50610-MEN-671

$17.08

BRACKET, L. STEP This part replaces 50611-MEN-670.

50611-MEN-671

$17.08

BRACKET, L. STEP

50611-MEN-671

$17.08

ARM, R. STEP This part replaces 50616-MEN-305.

50616-MEN-670

$46.66

ARM, R. STEP

50616-MEN-670

$46.66

SPRING, R. STEP RETURN

50617-KZ4-J40

$3.81

SPRING, L. STEP RETURN

50618-KZ4-J40

$3.81

ARM, L. STEP This part replaces 50642-MEN-305.

50642-MEN-670

$45.33

ARM, L. STEP

50642-MEN-670

$45.33

BOLT, FLANGE (8X24)

90101-KZ3-J50

$2.66

BOLT, STEP (12MM)

90101-KZ4-J40

$2.61

WASHER, PLAIN (8MM)

94102-08800

$1.49

PIN, SPLIT (2.5X30) This part replaces 94201-25150.

94201-25300

$1.49

PIN, SPLIT (2.5X30) This part replaces 94201-25200.

94201-25300

$1.49

PIN, SPLIT (2.5X30) This part replaces 94201-25250.

94201-25300

$1.49

PIN, SPLIT (2.5X30)

94201-25300

$1.49
