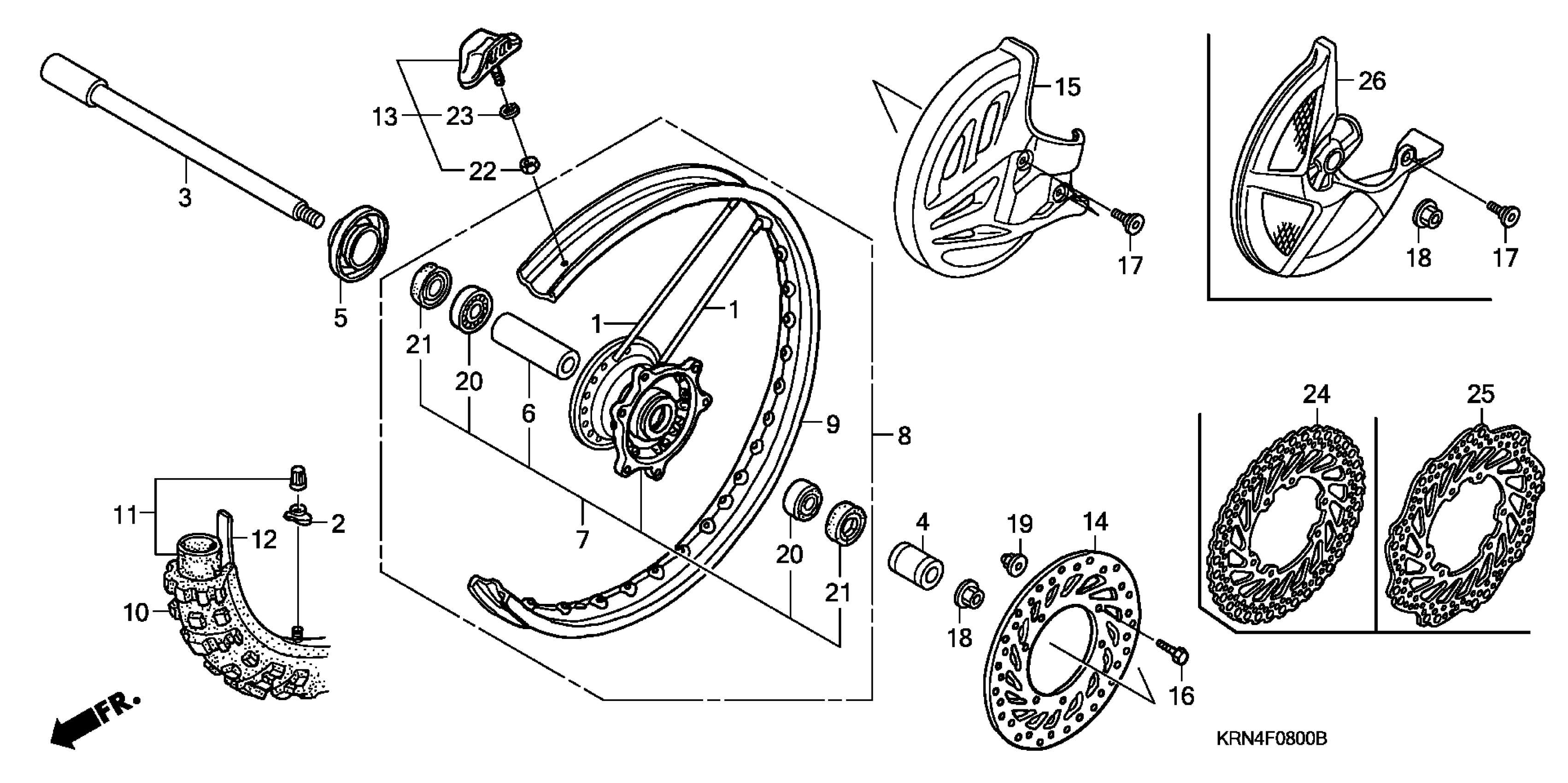

Honda CRF250R2A (08) MOTORCYCLE, JPN, VIN# JH2ME103-8M400001 TO JH2ME103-8M409999 FRONT WHEEL Diagram

SPOKE SET, FR. (240MM)

06440-MEN-840

$4.37

CAP, VALVE

42714-KA3-710

$10.46

AXLE, FR. WHEEL

44301-MEN-000

$51.12

COLLAR, L. FR. WHEEL

44311-KZ4-J40

$14.08

COLLAR, R. FR. WHEEL

44312-MEN-000

$21.60

COLLAR, FR. DISTANCE

44620-MAC-680

$22.11

HUB SUB-ASSY., FR.

44635-MEN-840

Unavailable

WHEEL SUB-ASSY., FR. (LIMITED EDITION)

44650-MEN-A20

Unavailable

RIM, FR. WHEEL (21X1.60) (LIMITED EDITION)

44701-MEN-A21

$234.33

TIRE, FR. (80/100-21) (51M) (DUNLOP)

44711-MEN-J01

Unavailable

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 0Y400-33100.

44712-446-631

Unavailable

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 08400-33100.

44712-446-631

Unavailable

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 08400-34010.

44712-446-631

Unavailable

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-MC4-005.

44712-446-631

Unavailable

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-340-003.

44712-446-631

Unavailable

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-400-004.

44712-446-631

Unavailable

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-437-971.

44712-446-631

Unavailable

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-446-003.

44712-446-631

Unavailable

TUBE, TIRE (2.75/3.00-21) (INOUE)

44712-446-631

Unavailable

FLAP, TIRE (80/100-21) (DUNLOP)

44713-KS6-641

$6.08

STOPPER, BEAD (1.60)

44715-MA0-770

$36.80

COVER, FR. DISK

51614-MEN-A20

$20.75

BOLT, DISK (6X19)

90105-MAC-680

$4.99

BOLT, FR. DISK COVER

90114-MAC-780

$3.10

NUT, FR. AXLE

90301-KZ4-J40

$16.85

NUT, U (6MM)

90301-473-003

$4.07

BEARING, RADIAL BALL (6904)

91062-MAC-681

$24.55

OIL SEAL (26X37X7) (ARAI)

91201-KS6-004

$11.37

NUT, HEX. (8MM)

94001-08000-0S

$1.49

WASHER, SPRING (8MM)

94111-08000

$1.49

DISK, FR. BRAKE

45351-MEN-A10

$202.30
