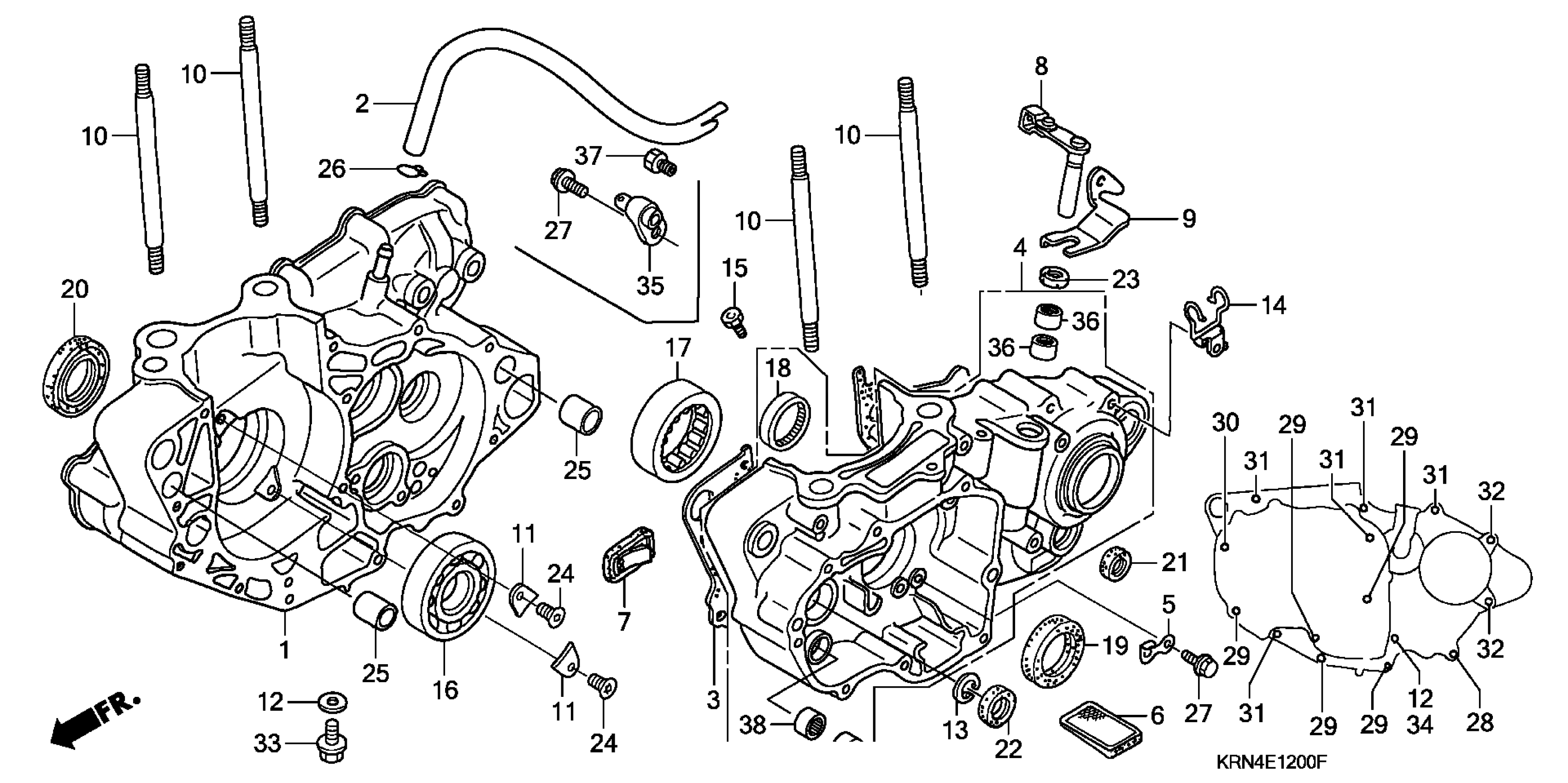

Description

Price

1

CRANKCASE, R.

11100-KRN-A10

$423.31

2

TUBE, BREATHER

11105-KRN-670

$9.82

3

GASKET, CRANKCASE This part replaces 11191-KRN-A10.

11191-KRN-A12

$21.05

3

GASKET, CRANKCASE This part replaces 11191-KRN-A11.

11191-KRN-A12

$21.05

4

CRANKCASE, L.

11200-KRN-A10

$478.57

5

PLATE, CAM CHAIN GUIDE

11206-KRN-670

$3.25

6

SCREEN, OIL FILTER

15421-KK0-000

$7.70

7

VALVE, REED

18601-MBW-003

$17.16

8

LEVER, CLUTCH LIFTER

22810-KRN-730

Unavailable

10

BOLT, STUD (10X135)

90031-KRN-670

$5.49

11

PLATE, BEARING HOLDER

90441-KRN-670

$2.92

12

WASHER, SEALING (8MM)

90474-333-000

$3.30

13

CIRCLIP, SPECIAL (33MM)

90604-MEB-670

$4.40

14

GUIDE, TUBE

90610-MEB-670

$12.85

16

BEARING, RADIAL BALL (30X72X16)

91001-KRN-671

$22.89

17

BEARING, SPECIAL ROLLER

91002-KRN-A11

$48.13

18

BEARING, SHELL (33X38X8) (NTN)

91022-KA4-740

$17.87

19

OIL SEAL (38X52X7) (ARAI)

91201-MEB-671

$13.13

20

OIL SEAL (39X56X7.5) (ARAI)

91202-MEY-671

$14.53

21

OIL SEAL (14X22X5) (NOK)

91203-KA4-771

$3.81

22

OIL SEAL (20X33X5) (ARAI)

91203-MEB-671

$4.89

23

OIL SEAL (12X18X3) (ARAI)

91205-MEB-671

$3.45

24

SCREW, SPECIAL FLAT (6X17)

90001-MEN-850

$1.80

25

PIN, DOWEL (14X20)

94301-14200

$2.28

26

CLIP, TUBE (B10)

95002-02100

$1.90

27

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

28

BOLT, FLANGE (6X40)

96001-06040-00

$2.16

29

BOLT, FLANGE (6X45)

96001-06045-00

$1.95

30

BOLT, FLANGE (6X60)

96001-06060-00

$2.06

31

BOLT, FLANGE (6X70)

96001-06070-00

$1.95

32

BOLT, FLANGE (6X75)

96001-06075-00

$2.23

33

BOLT, FLANGE (8X25)

96300-08025-00

$1.62

34

BOLT, FLANGE (8X70)

96300-08070-00

$2.05

35

JET, PISTON (#80)

11210-KRN-730

$20.67

36

BEARING, NEEDLE (12X16X10) This part replaces 91053-719-005.

91101-PZ9-000

$8.68

36

BEARING, NEEDLE (12X16X10)
