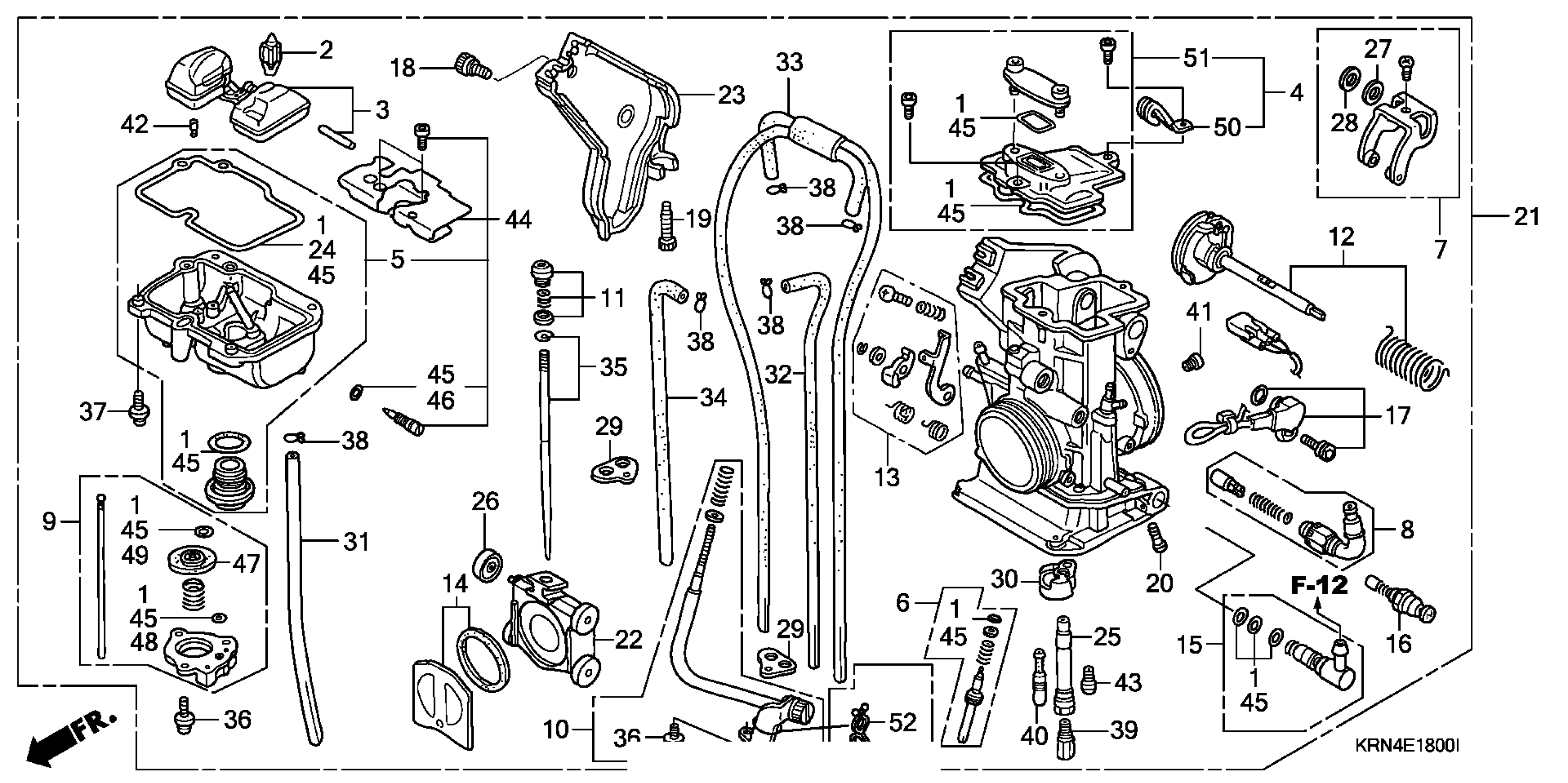

Honda CRF250R2A (08) MOTORCYCLE, JPN, VIN# JH2ME103-8M400001 TO JH2ME103-8M409999 CARBURETOR Diagram

#

Description
Price

2

VALVE SET, FLOAT

16011-MEN-851

$42.78

3

FLOAT SET

16013-KRN-851

Unavailable

6

SCREW SET A

16016-KRN-A01

$31.03

7

ARM SET, LINK

16018-MEY-A11

$17.03

8

START SET, HOT

16019-MEB-671

$29.28

9

DIAPHRAGM SET, PUMP

16021-MEN-A01

$40.04

10

SCREW SET B

16028-MEN-A01

$43.66

11

SCREW SET, JET NEEDLE

16029-MEY-A11

$12.71

12

SHAFT SET, THROTTLE

16032-KRN-A11

$72.77

13

LEVER SET, PUMP

16033-MEN-A01

$17.77

14

VALVE SET, FLOATING

16037-MEB-671

$118.20

15

JOINT SET, FUEL

16038-KRN-671

$41.85

16

VALVE SET, STARTER

16046-MEB-671

$29.33

17

SENSOR ASSY., THROTTLE

16060-KRN-671

Unavailable

18

BOLT, COVER

16080-HP1-601

$4.07

20

SCREW, PAN

16083-MEB-671

$1.51

21

CARBURETOR ASSY. (FCR01E A)

16100-KRN-A12

Unavailable

22

VALVE, THROTTLE

16112-HP1-A01

$307.61

23

COVER, THROTTLE

16157-MEN-A01

$25.22

24

GASKET, FLOAT CHAMBER

16163-MEB-671

$13.13

25

HOLDER, NEEDLE JET

16165-MEN-A01

$20.32

26

ROLLER

16172-MEB-671

$7.72

27

WASHER, PLAIN (PO)

16177-MEB-671

$1.57

28

WASHER, PLAIN (SUS)

16178-MEB-671

$1.49

29

BINDER

16178-MEN-851

$5.25

30

PLATE, BUFFER

16185-KRN-851

$12.69

31

TUBE, OVERFLOW

16196-MEN-851

$8.36

32

TUBE, AIR VENT

16197-MEB-671

$6.34

33

TUBE, AIR VENT

16198-MEB-671

$8.04

34

TUBE, AIR VENT

16199-MEB-671

$6.34

35

NEEDLE SET, JET (NMGS) | (Optional).

16201-KRN-A11

$26.84

35

NEEDLE SET, JET (NMGT) | (Optional).

16202-KRN-A11

$28.05

35

NEEDLE SET, JET (NMGU)

16203-KRN-A11

Unavailable

35

NEEDLE SET, JET (NMGV) | (Optional).

16204-KRN-A11

$26.84

35

NEEDLE SET, JET (NMGW) | (Optional).

16205-KRN-A11

$26.84

35

NEEDLE SET, JET (NMUS) | (Optional).

16230-KRN-A11

$28.34

35

NEEDLE SET, JET (NMUT) | (Optional).

16231-KRN-A11

$26.84

35

NEEDLE SET, JET (NMUU) | (Optional).

16232-KRN-A11

Unavailable

35

NEEDLE SET, JET (NMUV) | (Optional).

16233-KRN-A11

$26.84

35

NEEDLE SET, JET (NMUW) | (Optional).

16234-KRN-A11

$28.05

36

SCREW-WASHER (4X8)

93892-04008-08

$1.49

36

SCREW-WASHER (4X8) This part replaces 93892-04008-18.

93892-04008-08

$1.49

37

SCREW-WASHER (4X14)

93892-04014-08

$1.49

37

SCREW-WASHER (4X14) This part replaces 93892-04014-18.

93892-04014-08

$1.49

38

CLIP, TUBE (B7)

95002-02079

$1.49

39

JET, MAIN (#178) | (Optional). This part replaces 99101-357-1780.

99113-GHB-1780

$9.41

39

JET, MAIN (#180) | (Optional). This part replaces 99101-357-1800.

99113-GHB-1800

$9.41

39

JET, MAIN (#182) | (Optional). This part replaces 99101-357-1820.

99113-GHB-1820

$9.44

39

JET, MAIN (#178) | (Optional).

99113-GHB-1780

$9.41

39

JET, MAIN (#180) | (Optional).

99113-GHB-1800

$9.41

39

JET, MAIN (#182) | (Optional).

99113-GHB-1820

$9.44

39

JET, MAIN (#185) | (Optional). This part replaces 99101-357-1850.

99113-GHB-1850

$9.44

39

JET, MAIN (#185) | (Optional).

99113-GHB-1850

$9.44

39

JET, MAIN (#188) This part replaces 99101-357-1880.

99113-GHB-1880

$9.41

39

JET, MAIN (#190) | (Optional). This part replaces 99101-357-1900.

99113-GHB-1900

$9.98

39

JET, MAIN (#192) | (Optional). This part replaces 99101-357-1920.

99113-GHB-1920

$9.98

39

JET, MAIN (#195) | (Optional). This part replaces 99101-357-1950.

99113-GHB-1950

Unavailable

39

JET, MAIN (#198) | (Optional). This part replaces 99101-357-1980.

99113-GHB-1980

$8.82

39

JET, MAIN (#188)

99113-GHB-1880

$9.41

39

JET, MAIN (#195) | (Optional).

99113-GHB-1950

Unavailable

39

JET, MAIN (#198) | (Optional).

99113-GHB-1980

$8.82

40

JET, SLOW (#40) | (Optional).

99103-GBF-0400

$13.18

40

JET, SLOW (#40) | (Optional). This part replaces 99103-KA3-0400.

99103-GBF-0400

$13.18

40

JET, SLOW (#40) | (Optional). This part replaces 99103-440-0400.

99103-GBF-0400

$13.18

40

JET, SLOW (#45) | (Optional).

99103-GBF-0450

$14.02

40

JET, SLOW (#38) | (Optional). This part replaces 99103-KA3-0380.

99103-KBA-0380

$13.18

40

JET, SLOW (#45) | (Optional). This part replaces 99103-KA3-0450.

99103-GBF-0450

$14.02

40

JET, SLOW (#38) | (Optional).

99103-KBA-0380

$13.18

40

JET, SLOW (#38) | (Optional). This part replaces 99103-440-0380.

99103-KBA-0380

$13.18

40

JET, SLOW (#42)

99103-440-0420

$13.18

40

JET, SLOW (#45) | (Optional). This part replaces 99103-440-0450.

99103-GBF-0450

$14.02

40

JET, SLOW (#48) | (Optional).

99103-GBF-0480

$14.59

40

JET, SLOW (#48) | (Optional). This part replaces 99103-440-0480.

99103-GBF-0480

$14.59

42

JET, LEAK (#70)

99108-KRN-0700

$12.87

42

JET, LEAK (#75) | (Optional).

99108-KRN-0750

$12.80

42

JET, LEAK (#80) | (Optional).

99108-KRN-0800

$10.75

42

JET, LEAK (#65) | (Optional).

99108-KSC-0650

$8.07

42

JET, LEAK (#60) | (Optional).

99108-KSE-0600

$8.34

43

JET, BY-STARTER (#68)

99112-KRN-0680

$12.08

44

CHAMBER SET, FLOAT

16015-KRN-A01

$106.16

45

GASKET SET

16010-KSC-671

$27.89

46

O-RING (1.3X4.3)

16076-ND5-004

$2.56

50

CLIP

16088-KRN-A01

$9.51

51

TOP SET

16014-KRN-A01

Unavailable

52

HOLDER, CABLE

90651-680-961

$6.03
