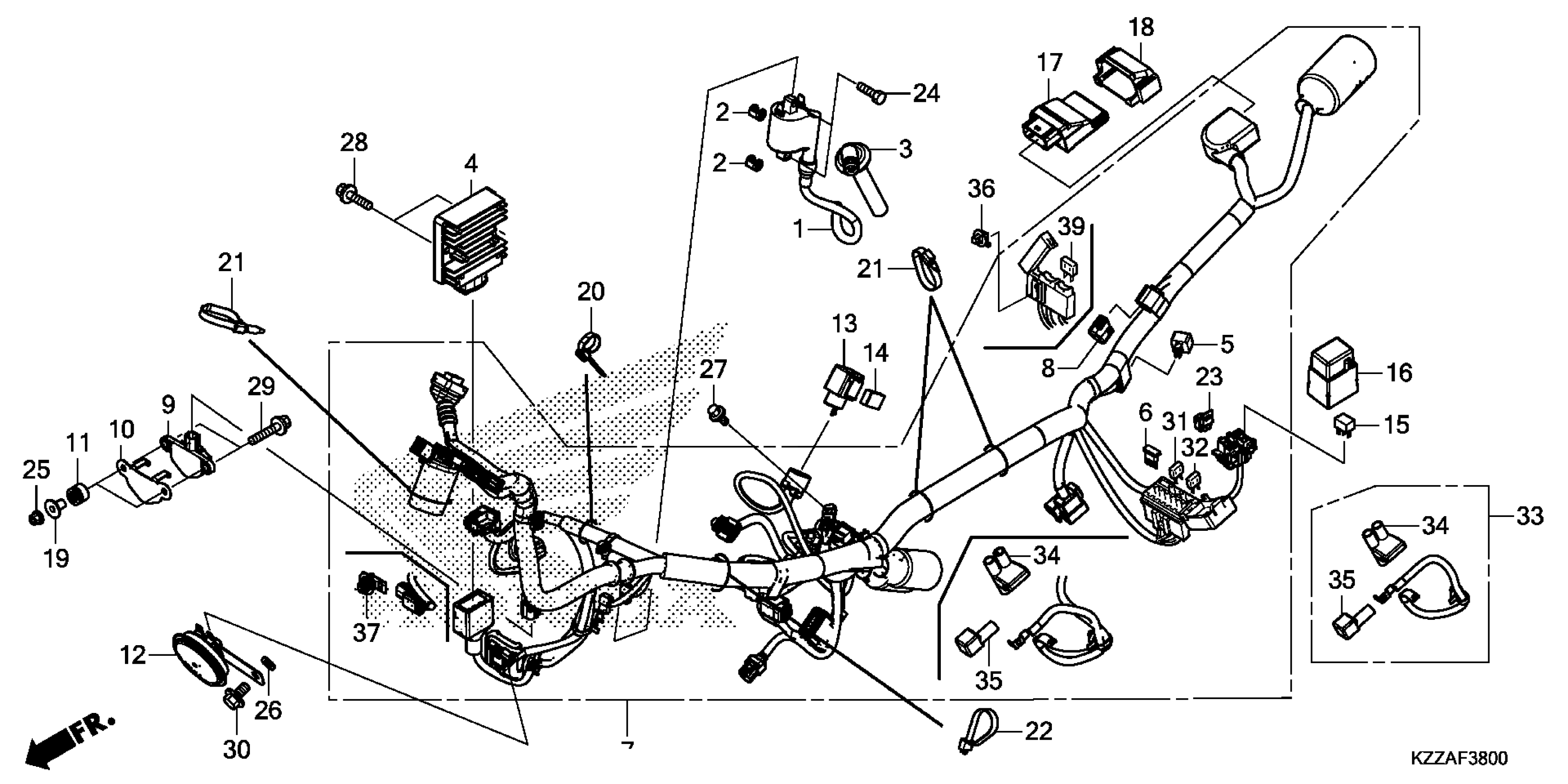

Honda CRF250LAC (18) MOTORCYCLE, THA, VIN# MLHMD441-J5100001 WIRE HARNESS (1) Diagram

COIL, IGNITION

30510-KZZ-901

$36.44

SPACER, IGNITION COIL

30520-GFM-900

$2.61

CAP ASSY., NOISE SUPPRESSOR

30700-KZZ-901

$39.59

RECTIFIER ASSY., REGULATOR

31600-KVK-901

$213.83

RECTIFIER, SILICON

31700-MM8-610

$24.98

DIODE ASSY., THREE WAY (SUMITOMO)

31730-MAS-601

$10.81

WIRE HARNESS

32100-KZZ-D10

$508.31

CAP, DUMMY (4P) (RED) (Honda Code 7679160)

32606-GEV-761

$4.52

SENSOR ASSY., BANK ANGLE (M6)

35160-KVS-751

$108.46

STAY, BANK ANGLE SENSOR

35161-KZZ-900

$2.66

RUBBER, SPEEDOMETER MOUNTING

37244-MM4-000

$5.12

HORN (HIGH)

38110-KYJ-901

$28.56

RELAY, TURN SIGNAL (MITSUBA)

38301-KYJ-641

$77.41

SUSPENSION, TURN SIGNAL RELAY (MITSUBA)

38306-KK4-000

$3.01

RELAY, POWER (MICRO ISO 4P) (OMRON)

38501-KWN-901

$6.31

COVER, RELAY (2P)

38506-KZZ-900

$3.72

PGM-FI UNIT

38770-KZZ-J11

$184.49

CUSHION, PGM-FI UNIT

38771-KTY-D30

$1.56

COLLAR, PILLION SEAT

77302-473-000

$4.31

BAND, WIRE

90650-KW3-000

$4.48

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$2.92

BAND, WIRE HARNESS

90651-MA6-720

$3.73

CLIP, CONNECTOR (DARK GREEN)

91565-S0X-003

$3.03

BOLT, HEX. (6X20)

92101-06020-4J

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49

WASHER, PLAIN (8MM)

94102-08000

$1.49

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.62

BOLT, FLANGE (6X22)

95701-06022-00

$1.80

BOLT, FLANGE (6X30)

95701-06030-00

$1.89

BOLT, FLANGE (8X14)

95701-08014-00

$1.49

FUSE, MINI (5A) (Honda Code 5026521)

98200-40500

$1.49

FUSE, MINI (10A)

98200-41000

$1.49

CABLE, STARTER MAGNETIC BATTERY

32401-KZZ-900

$25.56

COVER, STARTER MAGNETIC TERMINAL

32406-MFF-D00

$31.85

COVER, BATTERY TERMINAL

32414-GAG-000

$4.03
