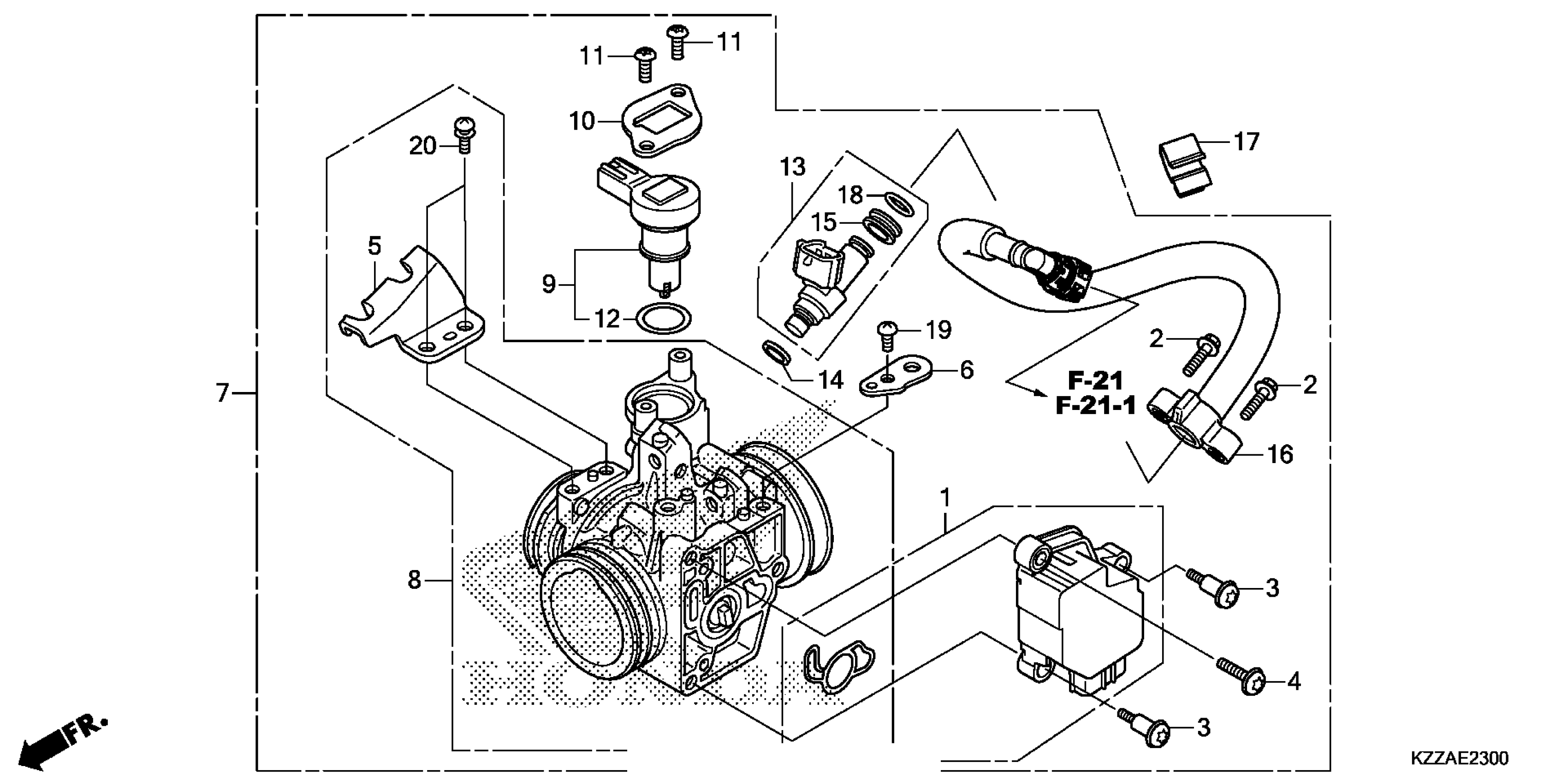

Honda CRF250LAC (18) MOTORCYCLE, THA, VIN# MLHMD441-J5100001 THROTTLE BODY Diagram

#

Description
Price

1

SENSOR SET

16060-KZZ-D21

$73.47

2

BOLT, FLANGE (5X20)

16080-KPH-701

$4.29

3

SCREW, TORX (5X8.7)

16081-KYJ-901

$2.53

4

SCREW, TORX (5X17)

16082-KYJ-901

$2.00

5

STAY, WIRE

16169-MFR-671

$15.81

6

STAY, HARNESS CLAMP

16196-HP6-A01

$8.69

7

BODY ASSY., THROTTLE (9QA A)

16400-KZZ-D21

$394.65

8

BODY SET

16410-KZZ-D21

$63.19

9

VALVE SET, IDLE AIR CONTROL

16430-KYJ-901

$143.29

10

PLATE, IDLE AIR CONTROL VALVE

16432-MFE-641

$6.72

11

SCREW, TORX

16433-HN8-A61

$0.34

12

O-RING (17.8X1.9)

16435-HN8-A61

$8.15

13

INJECTOR ASSY., FUEL

16450-MFE-641

$157.47

14

SEAL RING, INJECTOR

16472-MCW-000

$2.21

15

CUSHION RING, INJECTOR

16473-P7A-004

$6.57

16

HOSE, FUEL FEED

17526-KZZ-D21

$45.41

17

CLAMP, HOSE (BLACK)

90611-KZZ-901

$0.76

18

O-RING (7.8X1.9)

91301-P7A-004

$3.21

19

SCREW, PAN (5X10)

93500-05010-0H

Unavailable

19

SCREW, PAN (5X10) This part replaces 93500-05010-08.

93500-05010-0H

Unavailable

19

SCREW, PAN (5X10) This part replaces 93500-05010-1H.

93500-05010-0H

Unavailable

20

SCREW-WASHER (5X12) (Honda Code 0368621)

93892-05012-08

$1.06

20

SCREW-WASHER (5X12) This part replaces 93892-05012-18.

93892-05012-08

$1.06
